Murrplastik MVPS G3 G Installation, Adjustment, Operation

Hide thumbs

Advertisement

Quick Links

Download this manual
Murrplastik Engraving unit MVPS G3 G
Installation
Adjustment
Operation
8902864602

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVPS G3 G and is the answer not in the manual?

Questions and answers

Related Manuals for Murrplastik MVPS G3 G

Summary of Contents for Murrplastik MVPS G3 G

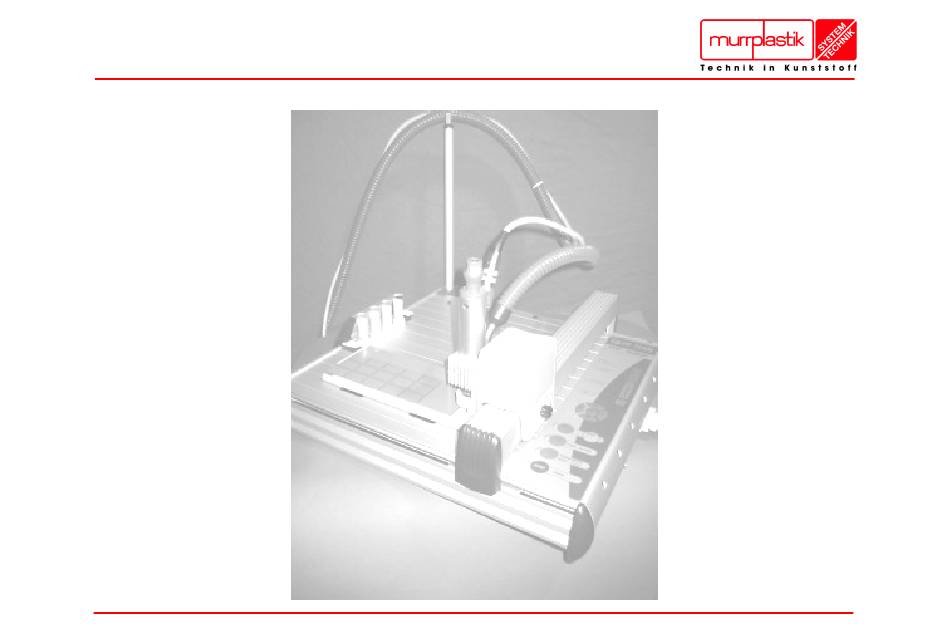

  • Page 1 Murrplastik Engraving unit MVPS G3 G Installation Adjustment Operation 8902864602...
  • Page 2 Connecting the vacuum hose and the engraving spindle Placing the engraving head cover • Software settings • Changing the engraving tool (engraving needle) • Test of spindle and vacuum cleaner • Possible faults and remedies Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 3 Plotter pens must not be in the pen depots if the new base plate Plotter pens must not be in the pen depots if the new base plate GPU is used! GPU is used! GPU is used! GPU is used! Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 4 Clamping piece for VEC cable and VC hose Vacuum hose Calibration device for aligning Engraving head cover engraving head Controller VEC Engraving needle (applied in spindle) Cable VEC to plotter VEC power supply cable Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...

  • Page 5: Scope Of Delivery

    Securing device Cover and engraving head engraving head engraving head picture Connecting cable Connecting cable Connecting cable VC hose Power supply VEC - spindle VEC - VC VEC - plotter cable Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 6 MP Engraving unit 2.1 Scope of delivery Mounting support Calibration block Holder support arm Clamping piece Support arm for engraving needle Vacuum Engraver Controller = VEC Vacuum Cleaner = VC Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 7 Ball bearing type: Steel, constantly lubricated, twice Cooling: Air, integrated fan Weight: approx. 280 g Overall length: approx. 175 mm Application: Engraving exclusively Guaranteed service life: min. 1,000 hours at appropriate handling Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 8 ACS software ACS software version ACS software ACS software version version 2.2.0.53 version 2.2.0.53 2.2.0.53 2.2.0.53 must must must must be be installed installed installed installed Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 9 Remove the red cover cap and pull out the red locking pin. Carefully draw off the lowering unit upwards from its holder. Make sure not to damage the unit holder. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 10 3.2 Mounting the support arm holder and support arm Push the holder underneath the baseplate and into the side plate as shown below, Put the support arm into the holder and the clamping piece into the pipe. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 11 3.0 Assembly and connection 3.3 Attaching the engraving head (including spindle) Apply the engraving head in both bearings of the holder. Carefully push down the engraving unit and make sure it fits properly. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 12 3.0 Assembly and connection 3.4 Securing the engraving head The small red locking bar must be applied as shown to make sure the engraving head will not loosen during operation. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 13 3.5 Mounting the counter bearing of the engraving head At first the counter bearing is screwed on loosely. Later when the horizontal alignment of the engraving head is fixed it is fastened firmly. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 14 Slide the plotter arm with the engraving head towards the block until it stops firmly. (Pic. 2) Align the engraving head upright and screw tightly the counter bearing. Place the covering cap on the engraving head. Pic. 1 Pic. 2 Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 15 MP Graviereinheit 3.0 Assembly and connection 3.7 Positioning the controller and vacuum cleaner Place the devices sideways or behind the plotter system. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 16 3.0 Assembly and connection 3.8 Connecting cables Connecting the Connecting the vacuum cleaner plotter to the Power supply to the controller controller controller Plug in the power supply cable at the controller. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 17 (support arm), and connect it with the vacuum cleaner. Connect the spindle and the VEC controller with the cable and clamp it in the support arm as well. (See pictures next page) Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 18 MP Engraving unit 3.0 Assembly and connection 3.8 Connecting the vacuum hose and the spindle cable Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 19 By turning the regulator the cutting depth is adjusted in steps of 0.05 mm. To the right + = deeper / to the left - = higher. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 20 4.0 VEC Front display indicators Green LED lights: Power supply Undisturbed operation VC can be manually is ON of spindle: operated with ON or OFF. Yellow LED lights. Malfunction of spindle: Red LED lights Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 21 It is absolutely essential to give a specific device name when installing the driver! VEC mvps G3 VEC mvps G3-T VEC mvps G3 XXL according to plotter model used. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 22 Calibration values for x/y are the same as specified for the respective plotters/operating systems. Using the engraving unit on the MVPS G3-T the rotation must be set to 90° . Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 23 When clicking Print resp. Print preview a dialog window is displayed with a drop- down menue from which the appropriate material and the respective speeds for spindle and cutting depth can be selected. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 24 . . . engraving engraving needle needle Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 25 • Turn the knob at the end clockwise until the needle is screwed tightly. • Mount the depth regulator and check the distance between depth regulator and spindle with the mounting support. (See pictures next pages) Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 26 Do not not use use any any Rub Rub- - - - out out tools tools or or or or ISO ISO tools tools! ! ! ! tools tools tools tools Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 27 The depth regulator is set to zero position when there is a distance of 3.0 mm between depth regulator and spindle. This can be set / varified with the mounting support. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 28 Zero mark on the white ring. Then screw tightly the spindle. By default an engraving tool is already inserted in the spindle: 0.5 mm cutting diameter 15° top angle Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 29 5 seconds. Vacuum cleaner and controller will be activated. Push the ON button to increase spindle rotation speed, push OFF to lower rotation speed. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
  • Page 30 Wrong output device selected. After transfer of data engraving Wrong firmware version installed on head moves into penstation. plotter. Engraving head cannot move deep Red clip is not set correctly. enough for engraving. Murrplastik Systemtechnik - ACS Werner Tubach As from: 02.05.2006 8902864602...
