Medva HLR240 BAC-1.3 Instruction Manual

Automatic gate mechanism
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

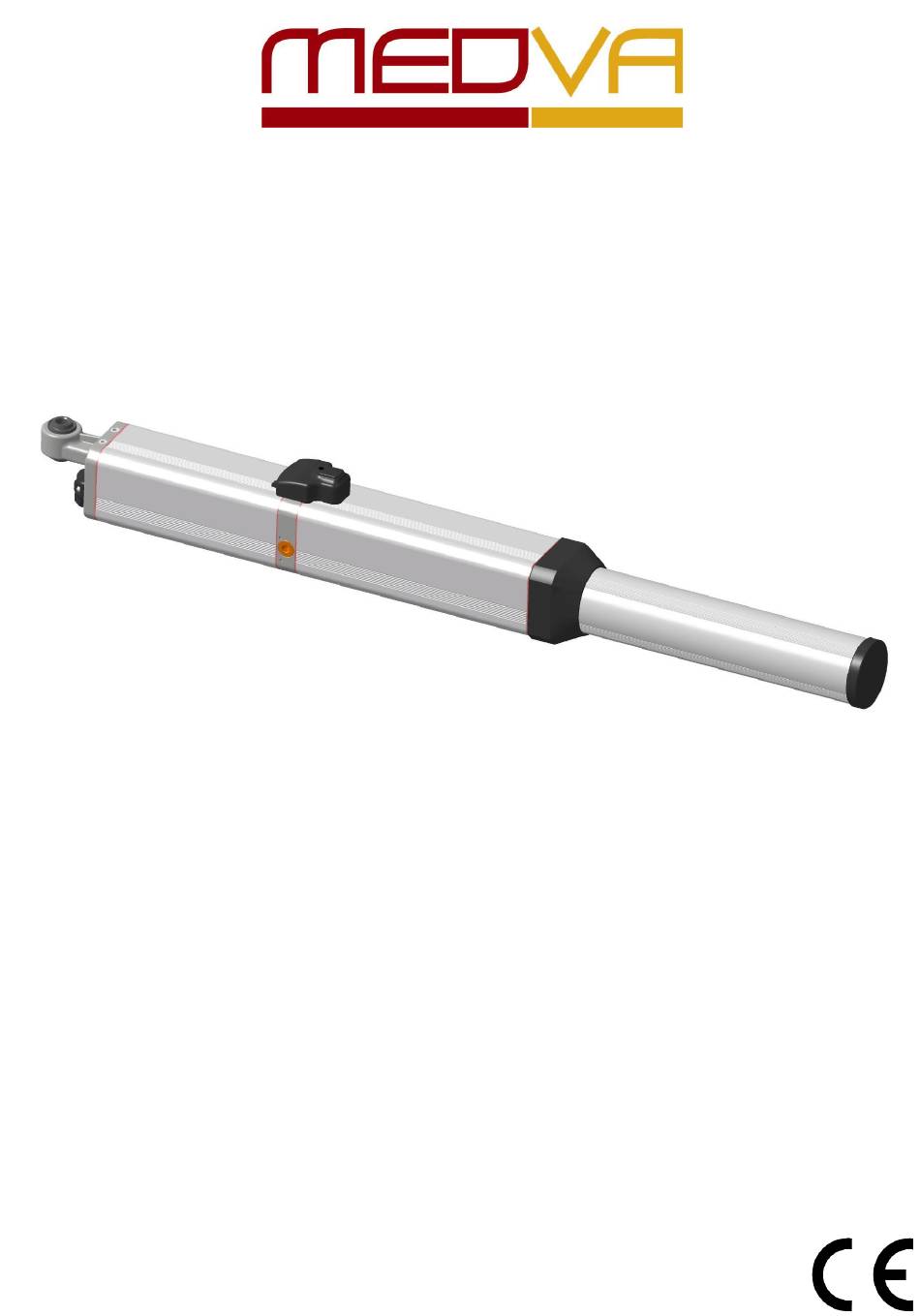

INSTRUCTION MANUAL
AUTOMATIC GATE MECHANISM
HLR240 BAC-1.3
HLR360 BAC-1.3
Ed2. 27/08/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLR240 BAC-1.3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Medva HLR240 BAC-1.3

Summary of Contents for Medva HLR240 BAC-1.3

  • Page 1 INSTRUCTION MANUAL AUTOMATIC GATE MECHANISM HLR240 BAC-1.3 HLR360 BAC-1.3 Ed2. 27/08/18...

  • Page 2: Security Warning

    Declaration of Conformity Medva Mecanismos del Valles, S.L. Name or Company Name: Address: C/ Natación 26-28 Pol. Ind. Can Roses - 08191 Rubí Tax Identification Number (CIF/NIF): B-60528015 HEREBY CERTIFIES: That hydraulic equipment HLR240 and R360 has been manufactured to be incorporated into a machine or to be assembled with other machinery to manufacture a machine in accordance with Directive 2006/42/EC: Meets the essential safety requirements of the following EEC directives.

  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS SAFETY RULES FOR THE INSTALLER • WARNING! In order to ensure personal safety, it is important to follow all instructions carefully. Improper installa- tion or improper use may result in serious personal injury. • This installation manual is an integral part of the product and must be delivered to the user. Keep this installation manual and all information material.

  • Page 4: Technical Data

    TECHNICAL DATA MODEL: HLR HLR240 HLR360 Dimensions 1050 mm 1290 mm 952 mm 1192 mm 710 mm 830 mm 242 mm 362m/m TECHNICAL DATA 240-1.3 360-1.3 Power supply 230 V 50HZ Motor power rating 276 W Absorbed consumption FEATURES 1.3 A BAC BACN Capacitor 12 uf...

  • Page 5: Work Area

    USAGE FREQUENCY The curve allows the calculation of the maximum working time (T) based on the utilisation factor (F). To ensure proper operation it is necessary to be located inside the work area, shaded in grey. The tests have been carried out at an ambient temperature of 22 °C; if the motor is at a higher ambient temperature or is exposed to direct solar radiation, the utilisation factor may be reduced by up to 20%.

  • Page 6: Assembly Dimensions

    ASSEMBLY DIMENSIONS Max 2 m Max 4 m Max 6 m MAXIMUM DIMENSIONS HLR 240 HLR 360 HLR 240 - 95° LIGHT 110° HLR 360 -115° 95° 400KG HLR 240 HLR 360 HLR 240 - 95° MEDIUM 110° HLR 360 -115° 90°...
  • Page 7 SPECIAL DIMENSIONS OPENING INWARDS (Fig. 2, page 5) EXAMPLE (STANDARD) EXAMPLE (SPECIAL DIMENSION) *Measurements in millimetres. We are occasionally forced to vary the standard dimensions for reasons of space when placing the supports, the above graphs refer to the both automatic gate mechanism models (240-360) and when the opening is inwards.
  • Page 8 ASSEMBLY INSTRUCTIONS Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 9 Fig. 8 Fig. 7 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15 7 of 11...
  • Page 9 1. Place the pillar support (Fig. 1, page 7) by trimming or supplementing the support according to A and B dimen- sions of the table on page 5. Determine the height of the support where the gate has a rigid surface to secure the front support, taking into account that there is a 15 mm gap between supports (Fig.

  • Page 10: Locking Operation

    LOCKING OPERATION The BAC system incorporated in the HLR device offers a wide variety of possibilities. Here is how it should be manipulated to get the most out of its performance. EMERGENCY UNLOCKING This valve allows us to perform the general unlocking to be able to operate the door manually in the event of a power outage.
  • Page 11 ANTI-CRUSHING SYSTEM The anti-crush system offers great security throughout the gate's path, both when closing and opening. Fig.1 PRESSURE SWITCH CONNECTION. To access the connection and regulation of the pressure switch remove the screws located at the rear holding the pressure switch and pull it down as indicated by the arrow (Fig.

  • Page 12: Box Content

    BOX CONTENT *BAC system only SPARE PARTS ACCESSORIES NAME Ref. NAME Ref. HLR240SB A212.11100.00 Unlock cap key 80284 HLR240BAC A212.11200.00 Gusset 70141 HLR240BACN A212.11201.00 Attachment bag 95008 HLR360SB A212.12100.00 Connection bag 95107 HLR360BAC A212.12200.00 Unlock cap set 95138 HLR360BACN A212.12201.00 End of stroke stop 95020 Installation manual...

This manual is also suitable for:

Hlr360 bac-1.3
