Medva PW530 User Manual

Swing gate openers with limit switch & led indicator. 24v dc gear motor

Advertisement

Quick Links

PW530
with limit switch & LED indicator
SWING GATE OPENERS
24V DC GEAR MOTOR
FOR RESIDENTIAL
USER MANUAL

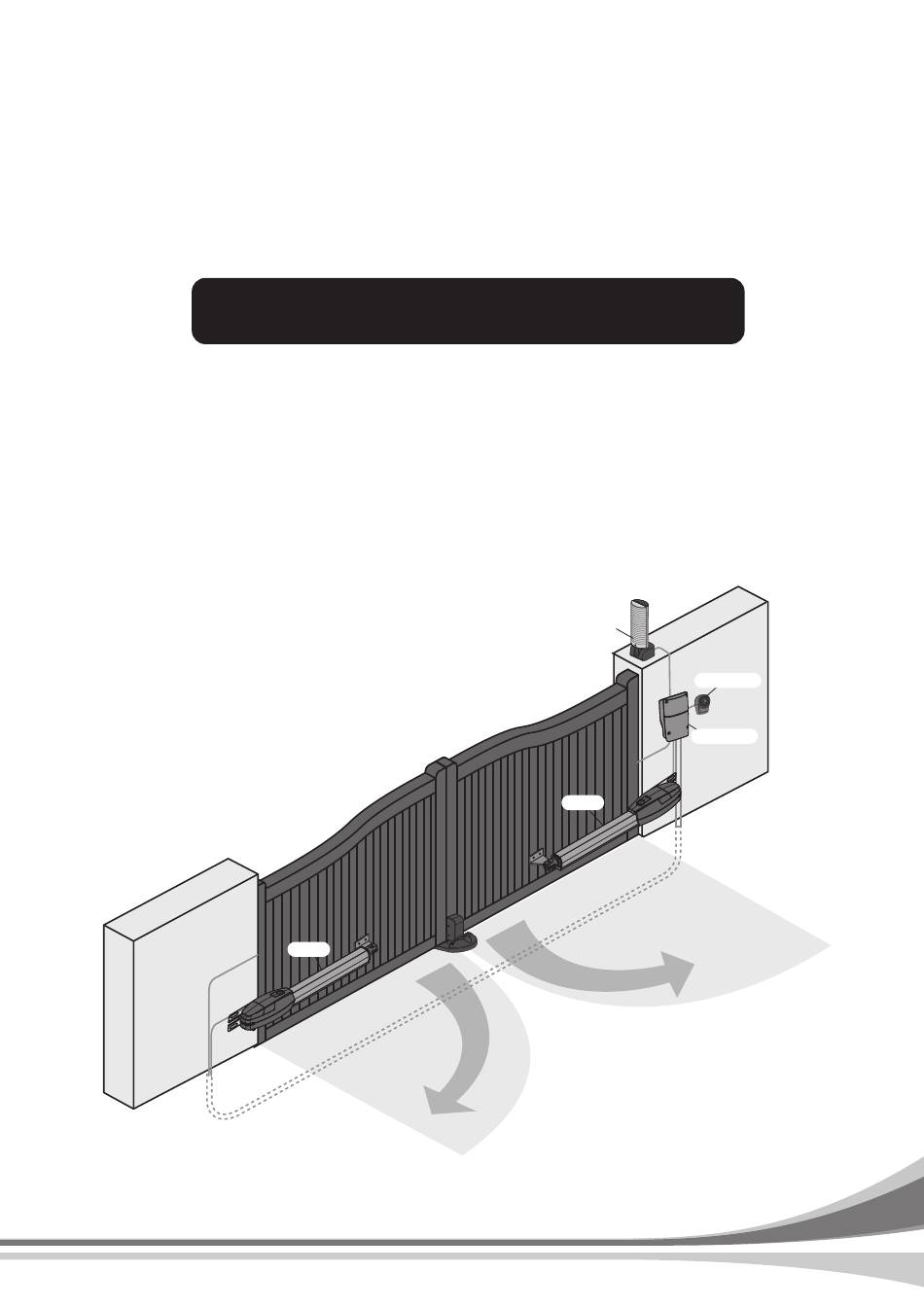

Flashing Light
Push Button
Control box
Gate 2
Gate 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Medva PW530

  • Page 1 PW530 with limit switch & LED indicator SWING GATE OPENERS 24V DC GEAR MOTOR FOR RESIDENTIAL USER MANUAL Flashing Light Push Button Control box Gate 2 Gate 1...
  • Page 3: Table Of Contents

    2.2 Tools need for Installation 2.3 Installation 2.4 Cable Connection 2.5 Power Connection 3. Installation 3.1 Preparation for Motor Installation 3.2 Installation of the motor 3.3 Limit switch adjustment 3.4 LED Indicators 4) Technical Characteristics 4.1 PW530 4.2 PW530L INSTRUCTIONS PW530...
  • Page 4: Warnings

    If there is a failure that cannot be solved and is not mentioned in this manual, please contact qualified Keep all the components of PW530 system and this manual installation personnel. for further consultation. Do not use the gate-automated system before all the...
  • Page 5: Product Description And Applications

    2.1 General Information The PW530 gate openers are applicable for 3.0/4.5 meters per leaf in width and 450/550 kg in weight and primarily for residential use. The performance of PW530 will be influenced by the gate dimension, weight and climate.
  • Page 6: Installation

    3.1 Preparation for Motor Installation Check the following items before going for installation: 1). Make sure the weight and dimensions of gate conform to the operation range of PW530. Don’t use PW530 if the gate specifications did not meet the requirements.
  • Page 7 100 degrees, then the value of “B” is approximate 190mm. **Please make sure “B” and “A” are similar or the same in value that the leaves can be operated smoothly, also to reduce the burden of the motor. B. With limit switches INSTRUCTIONS PW530...
  • Page 8: Installation Of The Motor

    8mm holes by four on the mounting surface to be installed and fasten up the brackets with screws and washers. 9. Please make sure the front plate is completely installed horizontally. Figure 21 Figure 22 11. Clamp and fix the motor front plate on the door temporarily. Figure 23 INSTRUCTIONS PW530...
  • Page 9: Limit Switch Adjustment

    3.3 Limit switch adjustment Procedures: 1. Loosen the screws and slide the cover out. 2. Loosen the screws on the Limit Switches and adjust to the proper position. 3. Tight up the screws and put the cover back. INSTRUCTIONS PW530...
  • Page 10: Led Indicators

    1. During motor operation, the Blue LED indicator on the side will show. A. When motor traveled to the both ends, the Red LED will show to indicate the door already open to the limit. 4) Technical Characteristics 4.1/4.2 PW530 350mm Stroke 540mm Stroke...
  • Page 11 INSTRUCTIONS PW530...
  • Page 12 INSTRUCTIONS PW530 34100-199-01-B...
