EVERSPRING AN194 Quick Start Manual

AN194
The Curtain Controller is used for controlling motorized curtain, roller blinds,
shutters and venetian blinds. Through the gateway, the user can remotely set their
desired stop position of the curtain.
Main features:
Wireless control of curtain motor.
Support up to 400W electric motor load.
Positioning Auto calibration function
Detects and report curtain's current position
It supports U-Net two-way wireless technology and is fully compatible with any
U-Net enabled devices. The U-Net protocol allows end devices such as AN194 to
pair with a U-Net gateway as central control making it suitable for smart home cloud
based platforms such as HomeSys.

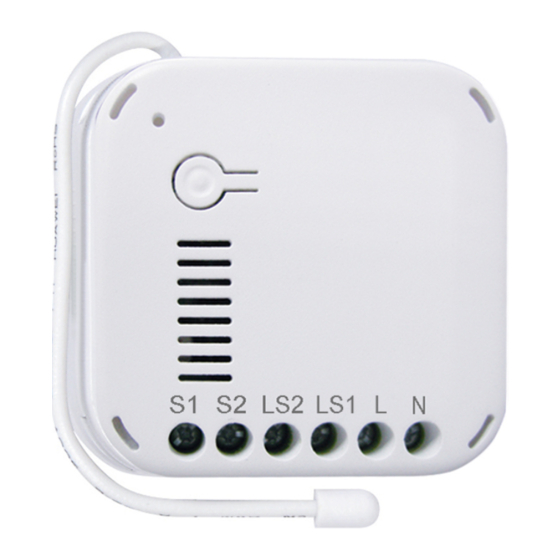

Product Overview
Link key
LED
Light
Wiring Terminals
Curtain Controller
Safety Precautions before Installation
Be sure to isolate or switch off mains power before installing or
maintenance.
Avoid installing the unit in stormy or raining weather.
IMPORTANT
Installation must be performed by skilled technicians who are informed about the
standards and technical requirements of the appliance and its proper installation.
Note that the In-Wall On/Off Module is designed to be installed in a wall switch
box to operate.
Check your local codes as they apply to your situation. If the house wiring is of
aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE
LIGHTING CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID
ELECTRICAL SHOCK.
WARNING
Due to connection to AC mains, the curtain
controller module should be placed inside an
enclosed casing to avoid accidents from electrical
contact. Ideally an electrical wall box should be
used whenever possible.
(Example of electrical box on right)
