EVERSPRING AN188 Quick Start Manual

AN188 Z-Wave Metering Mini Plug
The Metering Plug is a Z-Wave Plus enabled device which is fully compatible with any Z-Wave enabled
network. Inclusion of this unit on other manufacturer's Z-Wave Wireless Controller menu allows remote
operation of the unit and the connected load.
This product supports the S2 security protocol that uses encrypted Z-Wave Plus messages to communicate
to other security-enabled Z-Wave Plus products. A security-enabled Z-Wave Plus Controller must be used in
order to fully utilize the security features of this product.
The Metering Plug is designed to control the on/off status appliances load in your house. For metering the
unit can detect up to 10485.75kW*h and can support wattage, voltage, ampere, and PF detection. The unit
can also detect overload upon which the unit will switch off relay and keep LED flashing until power is off and
re-applied. At 220-240V voltage, this Plug can support up to 3000W resistive load.
WARNING:
Read operator's manual
CAUTION
For safety concerns:
- Do not connect appliances to this remote controlled socket-outlet if the instruction manual of the
appliances prohibits to be remote controlled (for example appliances according to EN 60335-2-9 like grills,
toasters and similar portable cooking appliances, or portable kitchen appliances, or appliances with
heating elements like ovens or heaters, etc).
- Do not connect any appliances to this remote controlled socket-outlet which are radiating heat and may
cause ignition or burning of surrounding materials (for example radiation heaters, portable heaters,
portable floodlights, desk lamps, etc).
- Take into consideration that connected appliances might be moved by pets, cleaning staff or other persons
who are not aware of the remote control functions.
- Do not connect any appliances with potential hazards by moving parts (for example drills, table saws,
blender, etc).
- The connection/installation of this product should be in a suitable area with the remote controlled
socket-outlet easily readable and accessible for disconnection actions.
- Connected equipment should not cause any hazard to the environment, personnel, other equipment and
property when left unattended.
- The socket outlet on equipment forbids to insert to other equipment of wall plug (Direct Plug-in) or Power
bar.
- The socket outlet only can insert power cord, The direction of power cord is drooping naturally, Power Cord
length needs < 2M.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.

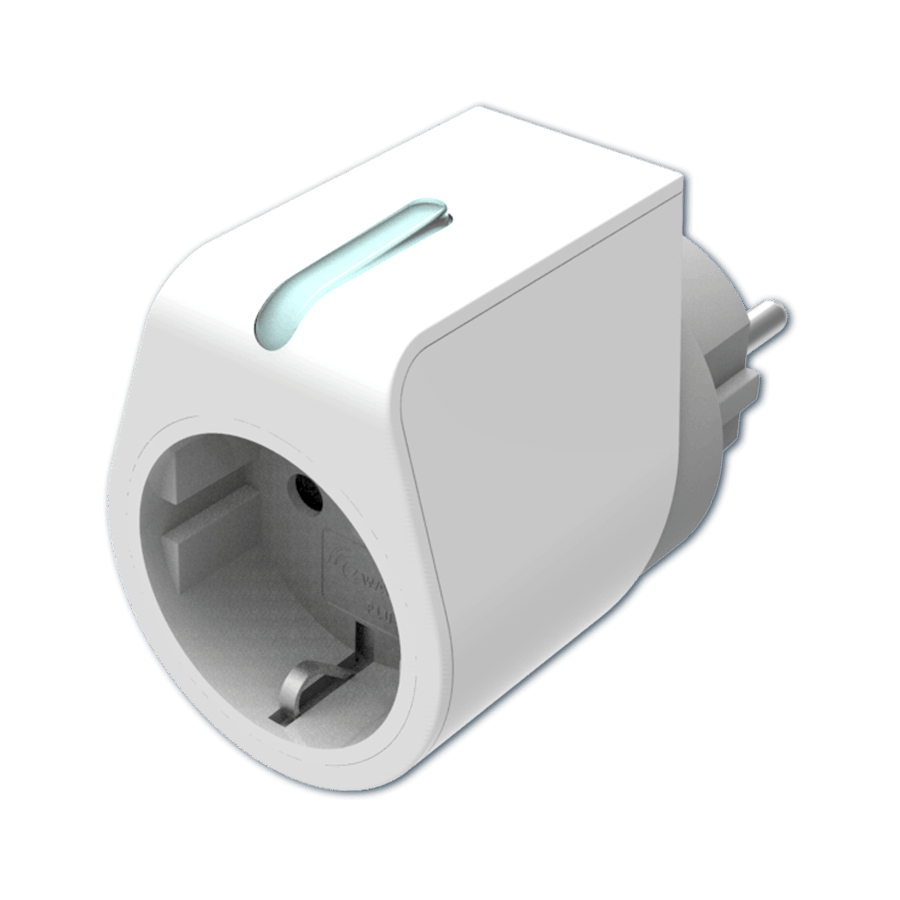

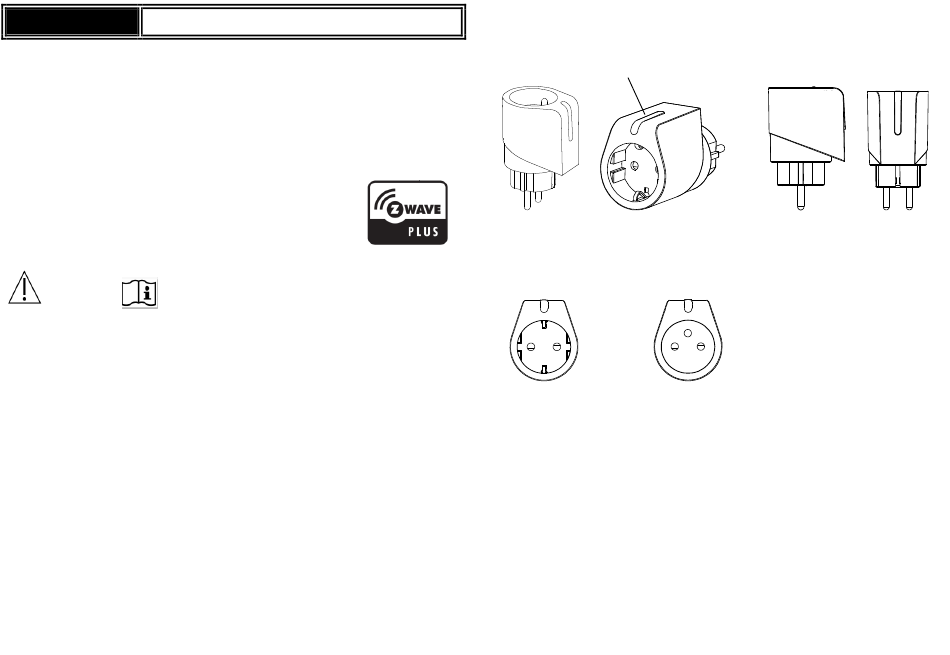

Product Overview
On/Off button
& LED Indicator
Plug Type
AN188 comes in Gerrnan plug and French plug versions.
AN188-2
German plug
TM
Adding to Z-Wave Network
On the unit you can find a link key which is used to carry out the function of inclusion, exclusion, and reset.
When power is applied for the first time, the LED will flash on and off alternately and repeatedly, implying that
it has not been assigned a node ID and cannot work with other Z-Wave devices yet. This unit supports the
Auto Inclusion function when power is applied and no node ID is stored in the memory.
Auto Inclusion
The module may automatically execute the function of inclusion when ;
1. The power is applied for the first time and no node ID has been stored in the module.
2. The execution of reset is successful where the stored node ID is cleared.
Note: The duration for Auto Inclusion is 25 seconds. Unlike the "inclusion" procedure shown in the table
below, the execution of Auto Inclusion is automatic without the necessity of pressing the link key.
- 1 -
Side view
AN188-6
French plug
Front view
