Crime Guard 650i5 Quick Start Manual

Standard Features:
NEW!
NEW!
5

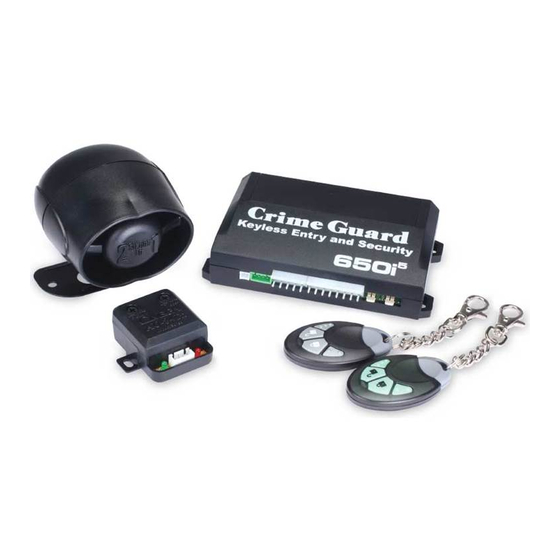

The Crime Guard 650i offers serious No-Nonsense Security that is comprehensive in features, yet affordable and easily expandable. Features
include the amazing 2-in-1 Psycho Siren, reliable AU-84Tn magnetic dual-zone shock sensor, Selectable Coded Override and Easy Valet opera-
tion. Special installer features are the new plug-in IntelliKit data port, plug-in and internal doorlock capability, two plug-in sensor ports, new
programmable onboard relays, offering choices of lock, unlock, horn, lights, or 4th and 5th channel output options, and a plug-in port for an optional
backup battery.
Two Transmitters included:
1 green (glow) button and 1 gray button.
(the 650i5 is capable of being upgraded with the 2-way Echo)
Operations: Lock Button - Press and release to Arm/Lock. Press
and hold to activate Remote Panic with locking doors.
Unlock Button - Press and release to Disarm/Unlock. Press and hold
to activate Remote Panic with unlocking the doors.
3rd Channel - Press and hold Lock and Unlock together.
"II" Button - Press and hold to activate trunk release. Press and
release twice to arm/lock - disarm/unlock without confirmation chirps.
"III" - Press and hold to activate remote panic, or change to 3rd Channel.
New! Optional Additional Channels - 4th and 5th Channel outputs are
available, as an option of the programmable relays.
4th Channel - Press the Lock and "II" buttons together.
5th Channel - Press the Unlock and "III" buttons together.
MORE Programmable Features Options! The Crime Guard 650i
incredible array of programmable features- 24,with many of the individual Features offering as many as four setting choices.
Programmable Features
the feature's setting by pressing the controller or transmitter buttons: the Lock button (L); Unlock button (U); II button (2) or III button (3).
#
Feature
1 SecureCode
2 Last Door Arming
3 Automatic Rearming
4 Starter Interrupt Functions
5 Ignition Activated Override
6 Doors Lock With Ignition On
7 Doors Unlock With Ignition Off
8 Open Door Bypass To Previous Two Features
9 Confirmation Chirps
10 Confirmation Chirp Volume
11 Activated Alarm Cycle
12 Lights On Upon Disarm
13 Disarm Alarm Upon Trunk Release
14 Arming Delay
15 Steady Siren Output / Pulsed Horn
16 Alarm Functions Bypass
17 Ignition Activated Anti-Carjacking Protection
18 Door Activated Anti-Carjacking Protection
19 Remote Activated Anti-Carjacking Protection
20 Open Door Warning Upon Arming
21 III Button Operation
22 Doorlocking Functions
23 Lock Relay Functions
24 Unlock Relay Functions
Specifications subject to change
2 programmable-function onboard relays (lock, parking lights, channel 4, unlock, horn, channel 5)!
Programmable Features!
NEW! Data port for IntelliKit plug-in bypass kits and databus modules!
the same number of times as the feature number. After the system chirps the same number back, choose
Default Setting
1 & 0
OFF (L)
OFF (L)
Alarm only (L)
OFF (U)
ON (L)
ON all doors unlock (3)
ON (L)
ON (L)
Medium Loud (2)
30 Seconds (L)
ON (L)
ON (L)
3 Seconds (L)
Steady Siren (L)
OFF (U)
OFF (U)
OFF (U)
OFF (U)
OFF (U)
Panic (L)
.8 Second Output (L)
Lock (L)
Unlock (L)
01/07
650i
Remote Security System
NEW! 2 additional remote channel outputs!
Omega part #
144-05
(Grey buttons, smoke case)
144-05G
(Green buttons, smoke case)
5 is extremely versatile, due to an
How to program:
Turn the ignition ON, then OFF. Press the Valet Swtch 5 times (the siren briefly
sounds; the Status LED lights red). Then select the desired feature by pressing the Valet Switch
Option
Two stages, of up to 9 presses each. Total of 99 possible combinations.
ON w/o door lock (U)
ON w/o door lock (U)
Off (U)
ON (L)
OFF (U)
OFF (L)
OFF (U)
OFF (U)
Low (L)
60 Sec. (U)
OFF (U)
OFF (U)
15 Seconds (U)
Pulsed Horn Lo (U)
ON (L)
ON (L)
ON (L)
ON (L)
ON (L)
3rd Chan. (U)
3 Second output (U)
Parking Light (U)
Med. Horn (U)
5
The 650i
way
ECHO
Compatible!
2nd Option
ON with doors locking (2)
ON with doors locking (2)
Automatic (2) Alarm+AntiGrind (3)
output 1 (dr. door) only (U) output 2 only (2)
except in Valet Mode (2) in Valet Mode only (3)
Med Lo (U) Loud (3)
90 Sec. (2) 120 Sec. (3)
30 Seconds (2) 45 Seconds (3)
Pulsed Horn Med. (2) Pulsed Horn Hi (3)
4th Chan. (2) 5th Chan. (3)
Double Unlock output (2) Total Closure (3)
Channel 4 Latched output (2) Ch 4 on-demand output (3)
Channel 5 Latched output (2) Ch 5 on-demand output (3)
5 is
2-
3rd Option
