Summary of Contents for MIKOTERM mControl HT500 SET
- Page 2 THE CONTENT: WHAT IS SMART ROOM THERMOSTAT? HOW DOES HT500 SET WORKS? WHAT ARE ADVANTAGES OF HT500 SET? RULES TO BE CONSIDERED FOR SAFETY HT500 EQUIPMENT SET, INSTALLATION, CONNECTION, SYNCHRONIZATION HT500 SET AND EQUIPMENTS TECHNICAL DATA HT500 SET RECEIVER HT500 SET RECEIVER PLACEMENT HT500 SET RECEIVER SETUP HT500 SET SMART ROOM THERMOSTAT HT500 SET Reset and Sync...
- Page 3 WHAT IS SMART ROOM THERMOSTAT? Smart Room Thermostat is a device which allows you to control your heating equipment via App with Internet even you are not at home. HOW DOES HT500 SET WORKS? HT500 SET Works as being smart room thermostat when connects with power adapter. It Works as being wireless room thermostat when batteries are installed instead of adapter.
-
Page 4: Technical Data
TECHNICAL DATA Room Thermostat - Technical Data Feeding Voltage (Usage with Adapter) 5V (DC) Feeding Voltage (Usage with Battery) 3V DC (2 x AAA alkaline battery) Maksimum Load Current (Usage with Adapter) 500 mA Maksimum Load Current (Usage with Battery) 80 mA Dimensions 131mm / 74mm / 25.5mm... - Page 5 At the following link you can watch a video that describes in detail the procedure for connecting the receiver: https://www.youtube.com/watch?v=EPZexrCDGdA or on the Mikoterm YouTube channel which you can reach through our site or by loading the following QR code:...

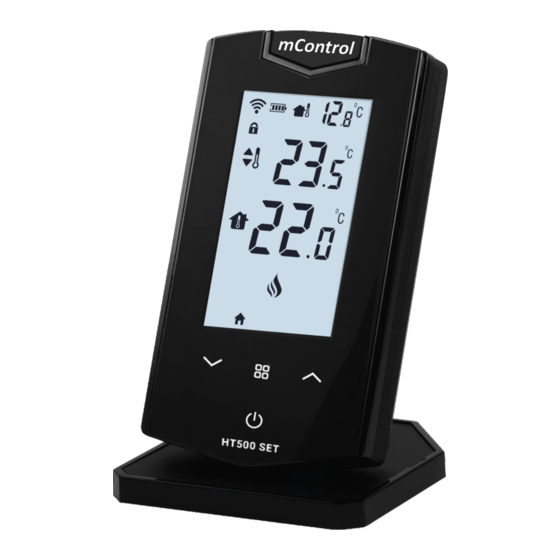

- Page 6 HT500 SET SMART ROOM THERMOSTAT “ ”, “ ” Temperature Set Buttons: Increasing or reducing the temperature while manual mode is active. “ ” Mode button: Unlock keylock by pressing 2 seconds. Change the modes. “ ” ON/OFF: Turn off the boiler and thermostat by pressing 4 seconds. HT500 SET Reset and Sync Sync while setup: Sync signal is sent to receiver if “...
-
Page 7: Battery Placement
HT500 SET SMART ROOM THERMOSTAT PLACEMENT Place your HT500 Smart Room Termostat in a room where you most use it as your living area. For example: living room. Be attentive to placement in the area of wireless internet modem zone at home by reason of the signal is sent via internet connection to room thermostat. - Page 8 2.10 RECEIVER WALL HANGER SCHEME...
- Page 9 https://www.youtube.com/watch?v=ZhYK3CQmx1U or on the Mikoterm YouTube channel which you can reach through our site or by loading the following QR code: Note: in order to synchronize the thermostat with the home network, you must make sure that the frequency of the Wi- Fi network is 802.11 b / g / n @ 2.4GHz.
- Page 10 THERMOSTAT CONTROL THROUGH APPLICATION NOTE: if your mobile phone is set to Serbian and the application will be installed in Serbian. While if your mobile is set to English or any other language, an English language application will be installed during installation. After the correct installation of the mC HT500 SET application, connection and synchronization, starting the mC HT500 SET application, you will get image 1 on the phone screen.
- Page 11 MODES By clicking on one of the modes from image 2, the thermostat switches the operation to the selected mode (pictures 3,4,5,6,7,8). image 3 – image 4 – image 5 – manual mode home mode outside mode image 6 – image 8 –...
- Page 12 OPERATING MODE ADJUSTMENT To adjust the operating mode parameters, go to the settings by clicking on the menu icon - image 9, after which the image application menu - 10 opens. By selecting modes / modes, you enter the operating mode settings - image 11. Here you can set the temperature for each operating mode individually, so that when you select a specific operating mode (image 3,4,5,6,7,8) the thermostat will operate according to the settings you set as in image 11.
-
Page 13: Location Mode
LOCATION MODE On the smart location setting page, you can specify the distance (circle radius) from your station (thermostat). The location mode of the thermostat works so that when you enter within the circuit you set by setting the distance, the thermostat will automatically set the boiler one temperature and when you leave the circuit another temperature. - Page 14 image 16 image 18 image 17 image 21 image 20 image 19...
- Page 15 MANUAL, HOME, SLEEP AND OUTSIDE MODES Manual mode allows you to adjust the current temperature you want in your home using the "up" or "down" arrows. Active manual mode (image 2 and 3). Home mode is used when you are at home and a temperature of 23 C is recommended.
- Page 16 image 24 image 25 image 26 image 27 image 28...
- Page 17 Reports - provides an overview of the previous operation of the thermostat where weekly, monthly or 6-monthly reports can be viewed (image 29). Weather forecast - provides a daily and weekly overview of weather conditions for the place where your thermostat is located (image 30).
-
Page 18: Declaration Of Conformity
WARRANTY CONDITIONS AND STATEMENTS DECLARATION OF CONFORMITY mControl Brand: Product Name: HT500 SET Product Type: Smart Room Thermostat The product is connected wirelessly at 2.4 Ghz internet and periodically shares the temperature and status information with the server on the internet. Compatible Directives: Radio and Telecommunication Terminal Equipment Regulation 2014/53/EU (R&TTE/RED EN 301 489-1 V2.1.1:2017, EN 300 220- 1 V3.1.1:2017, EN 301 489-3 V2.1.1:2017, EN 300 220-2 V3.1.1:2017, EN 62479: 2010, EN 60730-2-9:2010, EN 60730-1:2011)
