QUICK START GUIDE for GOelectronic Streaming Kit

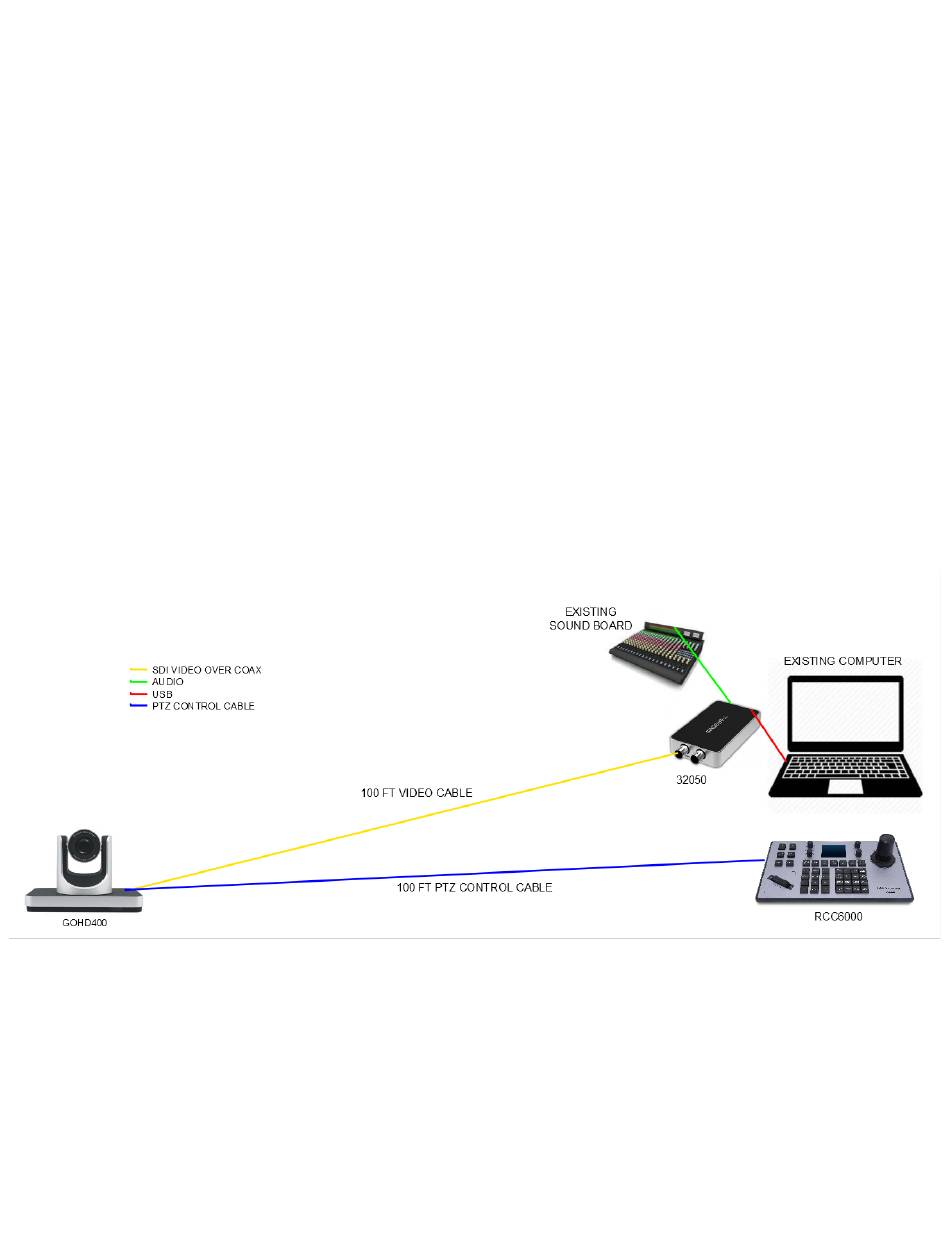

First, let's review what comes in the GOelectronic Streaming Kit:
1.

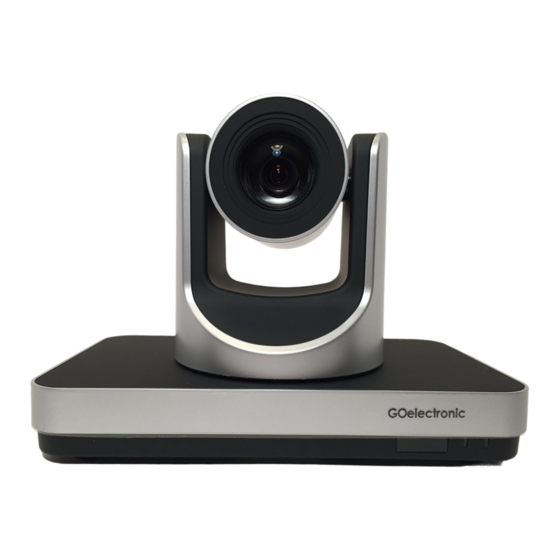

GOelectronic GOHD400 PTZ Camera
2.
GOelectronic RCC6000 PTZ Controller
3.
Magewell 32050 USB Capture SDI Plus
4.
100 ft Coax Video Cable
5.
100 ft PTZ VISCA Control Cable
6.
Camera Wall Mount
Note, the computer required for this system is NOT included. You can use a laptop or desktop
computer. The hardware in this system is compatible with both Mac and Windows operating
systems. However, the free Capture Express software recommended for previewing, streaming
and recording is only compatible with Windows.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOHD400 and is the answer not in the manual?

Questions and answers

Related Manuals for Go Electronic GOHD400

Summary of Contents for Go Electronic GOHD400

  • Page 1 QUICK START GUIDE for GOelectronic Streaming Kit First, let’s review what comes in the GOelectronic Streaming Kit: GOelectronic GOHD400 PTZ Camera GOelectronic RCC6000 PTZ Controller Magewell 32050 USB Capture SDI Plus 100 ft Coax Video Cable 100 ft PTZ VISCA Control Cable Camera Wall Mount Note, the computer required for this system is NOT included.
  • Page 2 Included in the Streaming Kit is a wall mount for the camera should you need it. You will make three connections to the GOHD400: 1. 100 ft VISCA cable for PTZ control 2.
  • Page 3 Connect the Camera to the USB Capture Device Now connect the coax video cable coming from the GOHD400 to the SDI INPUT on the Magewell 32050 USB capture device. You will also run audio out from your existing sound system (or microphone) and into the audio input on the 32050 unit.
  • Page 4 Download and Install Capture Express Software Magewell’s free Capture Express software is used for previewing, streaming and recording your broadcast. Download Magewell’s free Capture Express software and follow install instructions here: http://magewell.com/capture-express-v3 Now, open the software application. Assuming your camera is powered on and you have correctly connected the video cable, you should see video from the camera in the Capture Express preview area.
  • Page 5 Test a Live Stream You successfully installed and tested all equipment. Now it’s time to setup a test live stream. For streaming to Facebook Live: 1. From your Facebook page, click the Live button. The Stream Setup page should load. Under 'Get Started' click the button that says 'Use Stream Key'. And under 'Setup Options' select 'Use a Persistent Stream Key'.
  • Page 6 1. Click on the gear icon in the top right corner to view and edit your Zoom Settings. 2. Click on ‘Video’ in the navigation menu. 3. Select ‘USB Capture SDI’ as your camera from the drop-down list.
  • Page 7 For more detailed operating instructions for each product in the system, please view the individual product manuals. For questions or for technical support, please contact GOelectronic at 888-707-8024 or via our online support request form at https://www.goelectronic.com/pages/contact-us...
