- Page 1 Cube Plus USER’S MANUAL...
-
Page 2: Table Of Contents
INDEX Fare clic o toccare qui per immettere una data. 1 - Foreword ............................ 3 1.1 - PACKAGE CONTENT ......................3 3 - Warning and precautions......................6 3.1 - SAFETY RULES ........................8 3.2 - PRECAUTIONS ........................10 4 - Description ..........................11 4.1 –... -
Page 3: Foreword
CB3 Basic EU - User Guide 1 - FOREWORD We kindly require you to read this manual carefully in order to be able to use the CUBE PLUS (code AC GTW01) device as well as possible. This User Guide is related to all variants of the CUBE PLUS: •... - Page 4 Class E2(0.4W, 26dBm +3/-4 dB RF power @EDGE) 3G (WCDMA): Class 3(0.25W, 24dBm +1,7/- 3,7 dB) 4G (FDD & TDD): Class 3(0.2W, 23dBm ± 2,7 CUBE PLUS XE dB @1RB)) LTE category 4 LTE FDD: Max 150Mbps (DL)/Max 50Mbps DATA TRANSFER (UL)
- Page 5 Class E2(0.4W, 26dBm +3/-4 dB RF power @EDGE) 3G (WCDMA): Class 3(0.25W, 24dBm +1,7/- 3,7 dB) 4G (FDD & TDD): Class 3(0.2W, 23dBm ± 2,7 CUBE PLUS XA dB @1RB)) LTE category 4 LTE FDD: Max 150Mbps (DL)/Max 50Mbps DATA TRANSFER (UL)
-
Page 6: Warning And Precautions
The unauthorized disposal of equipments from the consumer behaves the application of the sanctions according to the normative of the current law. CUBE PLUS XE On what concerns CE, the equipment must be compliant with essential safety requirements and this has to be guaranteed by manufacturer or directly by the Company that takes under its responsibility the direct launch of the equipment itself on the market with its brand name or as an importer. - Page 7 (Conformity Clearance Procedure), whose content is specified by each single harmonization directive. • (Vdc) – Direct current CUBE PLUS XA Contains FCC ID: 2AZ9H-CUBEPXA Contains FCC ID: RI7LE910CXLA Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device complies with part 15 of the FCC Rules.
-
Page 8: Safety Rules
Since the GSM system is a radiofrequency technology (RF), it may interfere with the operation of any other phone set or electronic device which is not properly protected against radiofrequency energy. CUBE PLUS shall be arranged at least 2 m far from any electronic equipment (telephone set, etc) to avoid any interference problems. - Page 9 3 - Warning and precautions CB3 Basic EU - User Guide People with auxiliary systems such as pacemakers and electro acoustic devices (hearing aids) should keep at a safe distance. Plug RS485, DIDO, FXS, PWR UART ports, even if not used, with the correct connector.
-
Page 10: Precautions
Never use any type of solvent, such as alcohol or gasoline, in order to avoid damaging any finish. The non-observance of the precautions might permanently damage the device. The CUBE PLUS-EU device will be installed within restricted access area and it is accessible only by highly qualified staff. -
Page 11: Description
When making a call (both voice, data or fax), CUBE PLUS uses the main number (the voice number), while in order to receive a data or fax call, it is necessary that CUBE PLUS is called on its corresponding data or fax... -
Page 12: Connectors Description

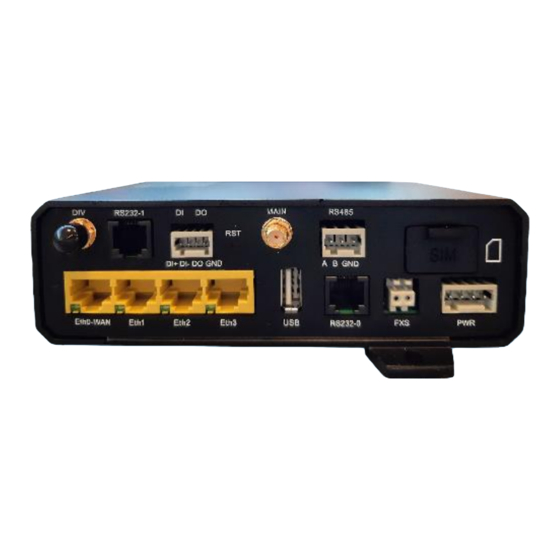

CB3 Basic EU - User Guide 4.1 – CONNECTORS DESCRIPTION CUBE PLUS is arranged in a plastic case that shall be fastened to the wall by qualified installers. Connectors and lighted signals are arranged on two sides: at the bottom and in the front. -
Page 13: Sim Card Insertion
Never put your hands on the antenna when the device is in use. This may compromise the quality of the connection and force CUBE PLUS to require a higher transmission power. Never use CUBE PLUS if the antenna is visually damaged. In this case, it shall be replaced without any delay. 6 - POWER SUPPLY The interface can be supplied by direct current with a 12-24 Vdc nominal voltage. - Page 14 6 - Power supply CB3 Basic EU - User Guide The equipment shall be powered by ES1 d.c. power supply at 12-24 Vdc and protected by means of external fuse rated 2 A placed on positive terminal.
-
Page 15: Mounting Options
7 – Mounting Options CB3 Basic EU - User Guide 7 – MOUNTING OPTIONS 7.1 - WALL MOUNTING Use the appropriate holes in the fixing tabs to screw n.2 screw #12 or M5 7.2 - DIN MOUNTING Lift the DIN hook by pressing on the tab and pulling up Hook the box to the DIN rail as follow: a. - Page 16 7 – Mounting Options CB3 Basic EU - User Guide b. Push down the hook c. The Cube is hooked...
-
Page 17: Label
8 – LABEL CB3 Basic EU - User Guide 8 – LABEL CUBE PLUS XE... - Page 18 8 – LABEL CB3 Basic EU - User Guide CUBE PLUS XA...
- Page 19 8 – LABEL CB3 Basic EU - User Guide CUBE PLUS CUBE PLUS AP...
