Rycom SnapTRACK HPTX Quick Start Manual

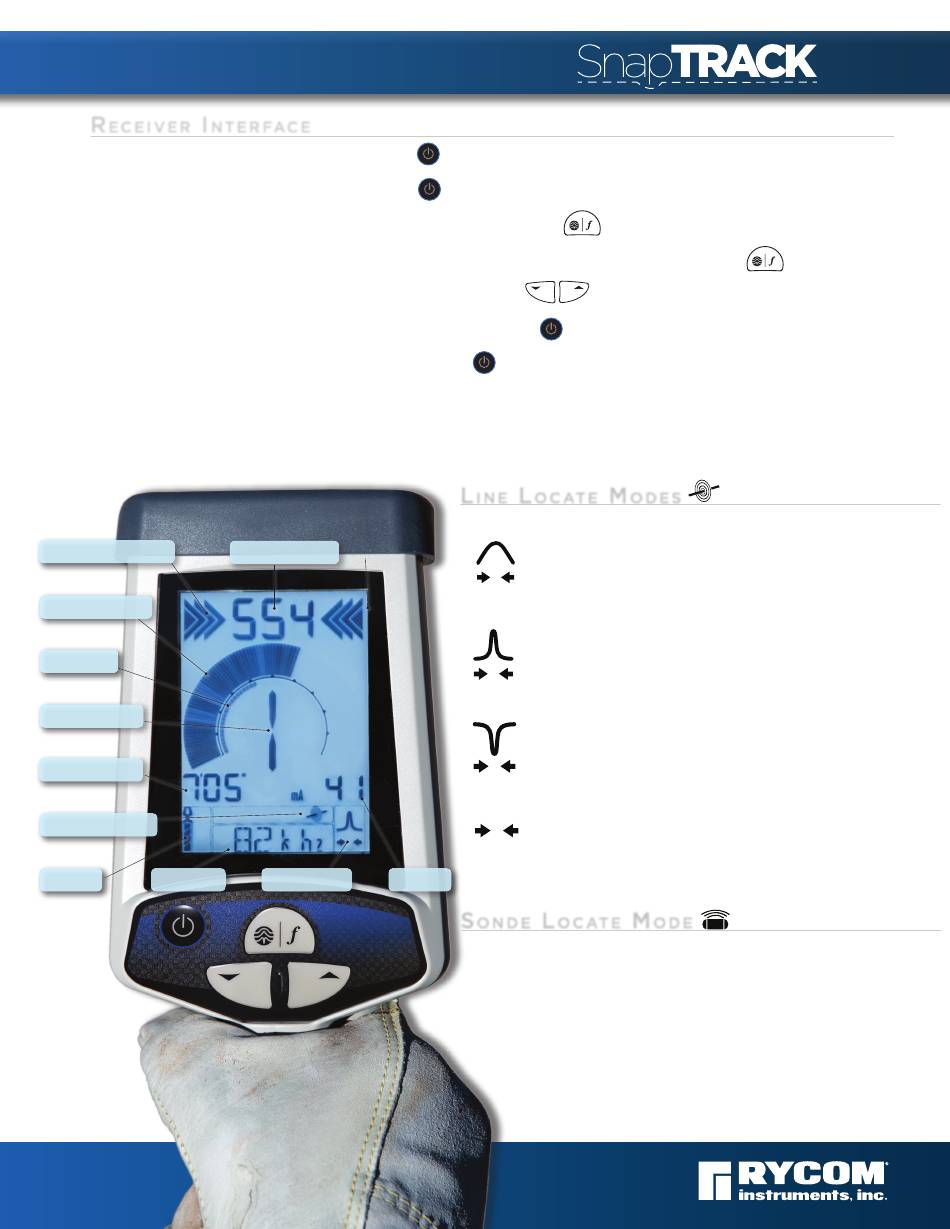

R i
e c e i v e R n t e R fa c e
To turn unit on: Short press on/off button
To turn unit off: Short press on/off button
To change frequencies: Short press the frequency/mode key
To change modes (peak, null, auto, etc.): Long press (3 sec) the frequency/mode key
To adjust gain up or down: Press applicable gain button
To enter Program Mode: Long press on/off button (3 sec)
To exit Program Mode: Short press on/off button
L /r G
eFt iGht uidance
S B
iGnaL arGraph
G L
ain eveL
L o
ine rientation
d e
epth StiMate
o M
perationaL ode
B
F
attery
requency
S S
iGnaL trenGth
L M
c
ocate ode
urrent
L L M
i n e o c at e o d e s
Peak
Highest signal strength directly over conductor
with gradual decline side to side. Receiver must
be oriented perpendicular to conductor.
Pinpoint Peak
Highest signal strength directly over conductor
with sharp decline side to side. Receiver must be
oriented perpendicular to conductor.
Null
Lowest signal strength directly over conductor
with sharp increase side to side. Receiver
orientation not required.
Auto Left/Right Guidance
Broken tone to left side of conductor with solid
tone to right side of conductor. Receiver must be
oriented perpendicular to conductor.
s L M
o n d e o c at e
Sonde
Highest signal strength directly over sonde with
gradual decline side to side and front to back.
Receiver must be oriented parallel with sonde.
HPTX
o d e
