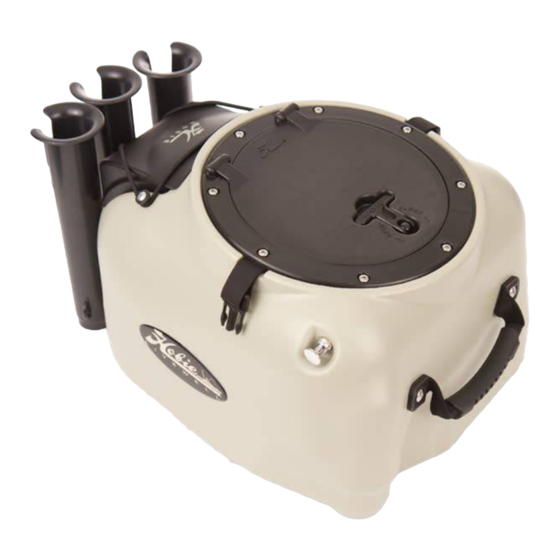

- Page 1 Hobie ® Adventure Island Livewell Kit Please read through the instruction manual before using this product.
- Page 2 Installation Livewell Kit Anatomy 1. 90 Degree Hose to Barb 2. Barbed Elbow 3. Webbing Buckle 1” Open Sided 4. Foam Base 5. Webbing Buckle Ladder Lock 6. 37” Webbing Strap 7. 4” Webbing Strap 8. Downspout Hose 9. Horizontal Tube...
- Page 3 Pump Connector & Downspout Hose 1. Unscrew the pump connector lock from Livewell. See FIG 1 & 2. FIG 1 2. Slide the Downspout Hose up into the down- spout tube. See FIG 1 & 3. FIG 2 FIG 3...
- Page 4 90 Degree Hose & Barbed Elbow 1. Thread on the 90 Degree Hose to Barb fitting to the intake pump inside the livewell. See FIG 4. 2. Insert one Barbed Elbow into the Downspout Hose. See FIG 4. FIG 4 Horizontal Tube 1.
- Page 5 Barbed Elbow 1. Fit one Barbed Elbow into the Horizontal Tube on the intake side. See FIG 6. 2. Fit the other Barbed Elbow into the Horizontal Tube on the downspout side. See FIG 6. FIG 6 Intake Tube 1. Fit the intake tube assembly that come with the livewell onto the Barbed Elbow on the...
- Page 6 Foam Base 1. Place the Foam Base underneath the livewell tank. See FIG 8. FIG 8 Webbing Strap 1. Attach the Webbing Buckle 1” Open Sided on the 37” Webbing Strap and 4” Webbing Strap to the webbing lashing on both sides of the livewell tank hatch.
- Page 7 Webbing Straps 1. Run the end of the 37” Webbing Strap through the Ladder Lock attached to the 4” Webbing Strap. See FIG 10 & 12. 2. Once the webbing straps are attached, make sure the strap runs evenly around the livewell and Foam Base.
- Page 8 Hobie Cat Company Oceanside, California, USA 1-800-HOBIE-49 hobiecat.com Hobie Cat Australasia Huskisson, New South Wales, Australia 1-800-4-HOBIE hobiecat.com.au Hobie Cat Europe Toulon, France +33(0)494 08 78 78 hobie-cat.net Hobie Kayak Europe Stellendam, The Netherlands +31(0)187 499 440 hobie-kayak.com Hobie Cat Brazil...
