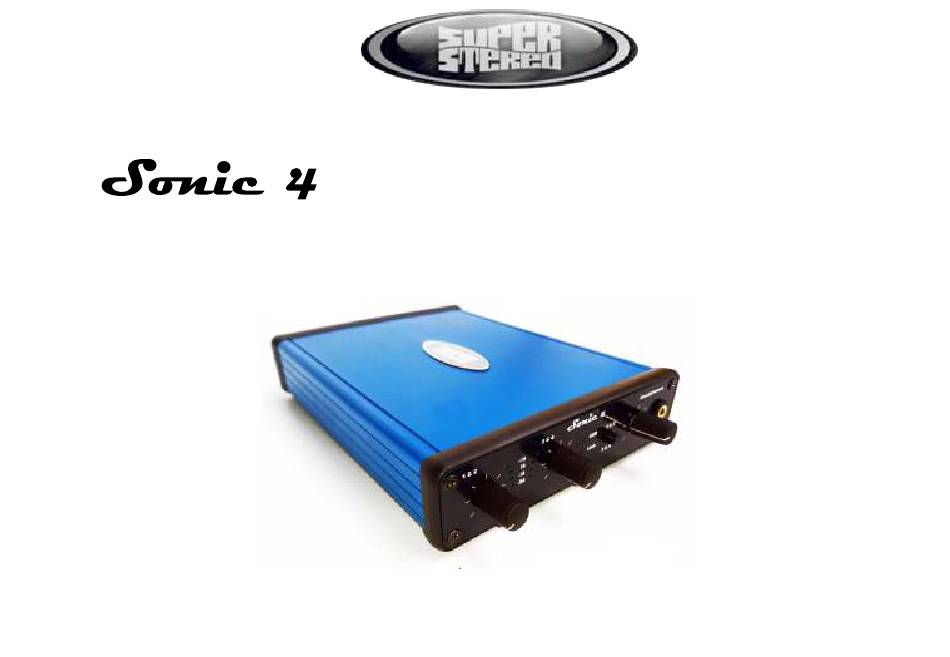

- Page 1 - Four Channel USB Audio Interface Operation manual...
- Page 2 Sonic 4 -Features: upto 32 bit 192kHz *audio with servo balanced outputs Audiophile grade USB interface found in the world best converters. 4 Channels of high quality playback. Great for Ableton/Traktor/Dex/DJ Pro High quality Burr Brown converters with 112db SNR & Dynamic range.
- Page 3 Headphones 1 & 2 3 & 4 + 6 db 0 db 1 & 2 - 3 db Lock - 20 db 3 & 4 Superstereo.co.uk. Made in England 1. Channel 1&2 and 3&4 level controls. 6. Headphone volume control. 2.
- Page 4 Sonic 4 -Quick start. Ensure the volume controls are at zero. Ÿ Plug in the USB cable ensure the USB light is on, for Mac no drivers are needed. Ÿ For PC, download from www.superstereo.co.uk and follow install procedures. Ÿ...
- Page 5 USB Setup for Mac OSX 1. Plug in the soundcard with USB cable to available port. 2. No extra drivers required. Plug and play for OSX 3. Go to system preferences, Sound. Select Superstereo as output. 4. To setup sample rates and outputs: goto Applications - Additional settings - Select Audio Midi setup.
- Page 6 USB Setup for Mac OSX 9. To adjust sample rates, select drop down box, and select the sample rate you require. frequencies are indicated by the Lock LED: 44.1khz - Red 48khz - Green 88.2khz - Orange. 96khz - Blue 176.4khz - Turquoise 192Khz - Purple 44.1 khz is compatible with all systems and...
- Page 7 12. For four channel operation select quadraphonic. 13. Any output can be selected. Once set, click apply and done. 14. Your Sonic 4 is now ready to use. 15. Go to your playback software and select outputs as required. (note: Some versions of OSX can show output 3 as centre and output 4 as sub) +44(0)2080888878 info@superstereo.co.uk www.superstereo.co.uk...
- Page 8 USB Setup for Windows www.superstereo.co.uk 1. Goto download windows drivers. 2. Extract ZIP files to a folder. 3. Open folder Superstero windows driver 4. Run Setup32.exe for 32 bit systems 5. Run Setup64.exe for 64bit systems +44(0)2080888878 info@superstereo.co.uk www.superstereo.co.uk...
- Page 9 USB Setup for Windows 6. Click Yes to run driver setup wizard. 7. Click finish once the setup has finished. 8. Plug the sound card into any available port on your computer. 9. Ensure the USB light and Lock lights are on. 10.
- Page 10 USB Setup for Windows 1. To change sample rates and outputs. 2. Go to Hardware and sound. Select Sound. 3. Select Superstereo and click on Configure. 4. For stereo operation, select stereo. 5. For four channel operation, select quadraphonic. 6. Click next, then select Full-range speakers Front L&R 7.
- Page 11 USB Setup for Windows 8. Then click properties. Click advanced. 9. Select the desired sample rate from the drop down box then click ok 10. For most software that uses multiple outputs, select Windows WASAPI mode, for best results. Frequencies are indicated by the Lock LED: 44.1khz - Red 48khz - Green...
- Page 12 Sonic 4 Block diagram. Output level 1&2 Lock DAC 1 4 x Balanced 24bit 192khz USB in or unbalanced DAC 2 outputs 24bit 192khz Optional 5V Power input Output level 3&4 Phones Phones select Phones level +44(0)2080888878 info@superstereo.co.uk www.superstereo.co.uk...
-
Page 13: Technical Speci Cations
Technical specications. USB & DACS: 24/32bit 192kHz Burr brown DACs x 2 . Dynamic range 112db SNR 112db. THD+N @ -1dBFs -93 db. Low latency 3.0 ms 44.1k-96k. 8 x oversampling Sample rates 8khz to 384khz, Bit rate up to 32bit. (Mac) - 8khz - 192khz, up to 24bit (PC WASAPI) Channel separation 48Khz - 192Khz - @110 db. - Page 14 7 - Ensure level on your computer is turned on. 8 - If your computer is showing output levels are on, both lights on the Sonic 4 are lit, levels are up and still no sound - unplug the USB and stop playback.
