Summary of Contents for SUPER STEREO PHANTOM VALVE Series
- Page 5 (upto 32bit 384khz)

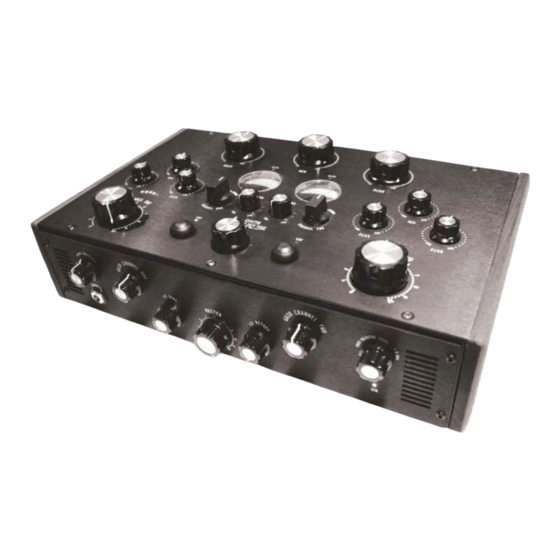

- Page 6 he New DN78 Phantom Valve is a desktop analogue DJ mixer featuring 2 dual input channels, one mono mic channel, 2 stereo USB channels and features rotary faders and an optional rotary cross-fader. The mixer is designed to the highest audio standard featuring a valve stage giving extra warmth and depth to the sound and is designed for professional DJ's, clubs and venues.
- Page 7 DN78 Phantom Valve Series User Guide. It is important you read this guide before starting. Plug in the power connector and twist the ring so its locked in place. Switch on the power switch on the external power supply so the blue LED is lit up. (if the LED is red, the internal fuse has blown - refer to fuses section).
- Page 13 Superstereo Dn78 3 band channel EQ +20db +15db +10db Mids Bass - 180hz +18db to -26db +5db Bass Treble Mid - 950hz +14db to -14db Top - 5Khz +14db to -14db -5db -10db -15db -20db -25db 100hz 500hz 5khz 20khz 1khz 10khz...
- Page 17 The USB input socket is located at the rear of the mixer and provides 4 channels of studio quality audio from your computer into channel one and two on the mixer. It is a one direction only sound card and can run any audio file from Mp3 to high resolution 32bit 384KHz, on Mac and PC. It uses the latest Burr Brown converters with multi oversampling technology and very high quality USB interface for true studio quality sound.
- Page 18 Pad attenuation switch There is a small toggle switch on the base of the mixer which will reduce the master output by -6db and roll off the bass at 20hz by a further 14db. This is designed for smaller sound systems or for small speakers that cannot cope with allot of sub bass frequency’s. It also allows you to drive the output and valve with more signal to get greater valve compression sound.
- Page 20 The connection to earth (ground) in an audio system is important for safety to protect the operator from high voltage electric shock.Audio performance can be effected when earth (ground) loops occur, which result in audible hum and buzz, and to shield the audio signals from interference.
- Page 22 For MAC: Simply plug your DN78 mixer into an available USB port and your mixer is ready to use with any professional DJ or music software. If you are not getting any sound or its distorted, open the application MIDI and Audio setup. Select Superstereo driver and select the required sample rate 44.1, 48, 96 or 192Khz as it will usually default to 385khz which is out of range of our DAC's.
- Page 23 ·PHONO STAGE: RIAA - 47kohm, S/N 102dB 3 to 100mV. 300pf, Moving Magnetic pick up. MC switch optional - 100 - 300 uV - 300pf. Standard RIAA curve. Switchable to line inputs. ·LINE IN: >47k ohm -10 to +15dBu. S/N 104dB USB AUDIO: 32 bit @ upto 384khz.
- Page 24 +10db Peak LEDs Effects Return Main VU Meters Channel 1 input meter RIAA Mid Freq Input select Phono Channel input gain Fader Iso Bypass line/phono +4db select 3 band EQ Master Isolator -6db cut Outs -12db roll off @25 hz Electronic Cue Master Line...
