Summary of Contents for Magellan Outdoors SwiftRise Hub 4P
Page 1

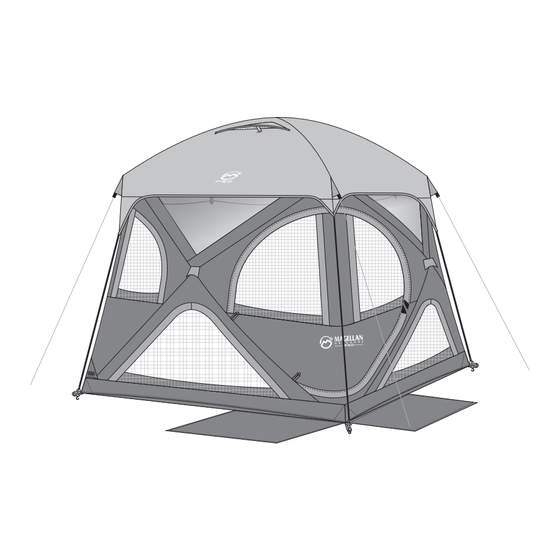

SwiftRise Hub 4P Tent 164276 Customer Service:(888) 922-2336 7:00 am to 12:00 am CST (daily) Live Chat at:www.academy.com Email:customerservice@academy.com (Made in Bangladesh)
Page 2
Warnings..................3 Parts List..................4 Assembly Instructions............5-6 Care and Maintenance............7 Warranty Information...............8 Note: Before beginning assembly of product,make sure all parts are present.Compare parts with package content list and hardware contents.If any part is missing or damaged do not attempt to assemble the unit.Contact customer service for replacement parts.
Page 3
Warnings IMPORTANT SAFETY AND TIP INFORMATION TO MAXIMIZE THE ENJOYMENT OF YOUR PRODUCT PLEASE ASSEMBLE AND USE YOUR PRODUCT AS SAFELY AS POSSIBLE. THE PURPOSE OF THE SAFETY ALERT SYMBOLS TO CALL YOUR ATTENTION TO POSSIBLE HAZARDS RELATING TO THE USE AND ASSEMBLY OF YOUR PRODUCT. THE PURPOSE OF THE TIP SYMBOL IS TO CALL YOUR ATTENTION TO SUGGESTIONS THAT WILL ASSIST YOU IN THE ASSEMBLY/DISASSEMBLY PROCESS AND ENHANCE YOUR CAMPING EXPERI-...
Page 4
Tent body with attached poles Tent rainfly Carry bag Lighted gear loft Guy rope Steel stake String light for tent Battery compartment for gear loft 3D Battery compartment for tent IMPORTANT NOTES BEFORE YOU BEGIN: • Assemble your tent before camping to become familiar with the assembly. •...
Page 5
Assembly Instructions Step 1: FIGURE 1 CAUTION:Avoid pinch points when opening ROOF or closing the tent frame. ● Remove tent from expandable carry bag. Remove the tie strap from around the tent. ● Lay the tent flat on the ground and check that there is no material twisted or overlapping the FIGURE 2 ends of any poles.
Page 6
Assembly Instructions Step 3: ● Hook the S-hook at the bottom of the rainfly to the D-ring at the bottom of the tent body. (Fig.7) ● Your tent should be standing up completely. You can now easily move your tent to its final position before securing with stakes and guylines.
Page 7
Tent take down: ● Remove gear loft and fold it for storage. ● Remove all stakes from tent and guylines, store in stake bag. ● Detach the rainfly and set aside after folding it. ● Hold the webbed ring sewn to the steel ring in the center of one of the roof and pull down until the roof is collapsed.
Page 8
Warranty Information This product has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase.
