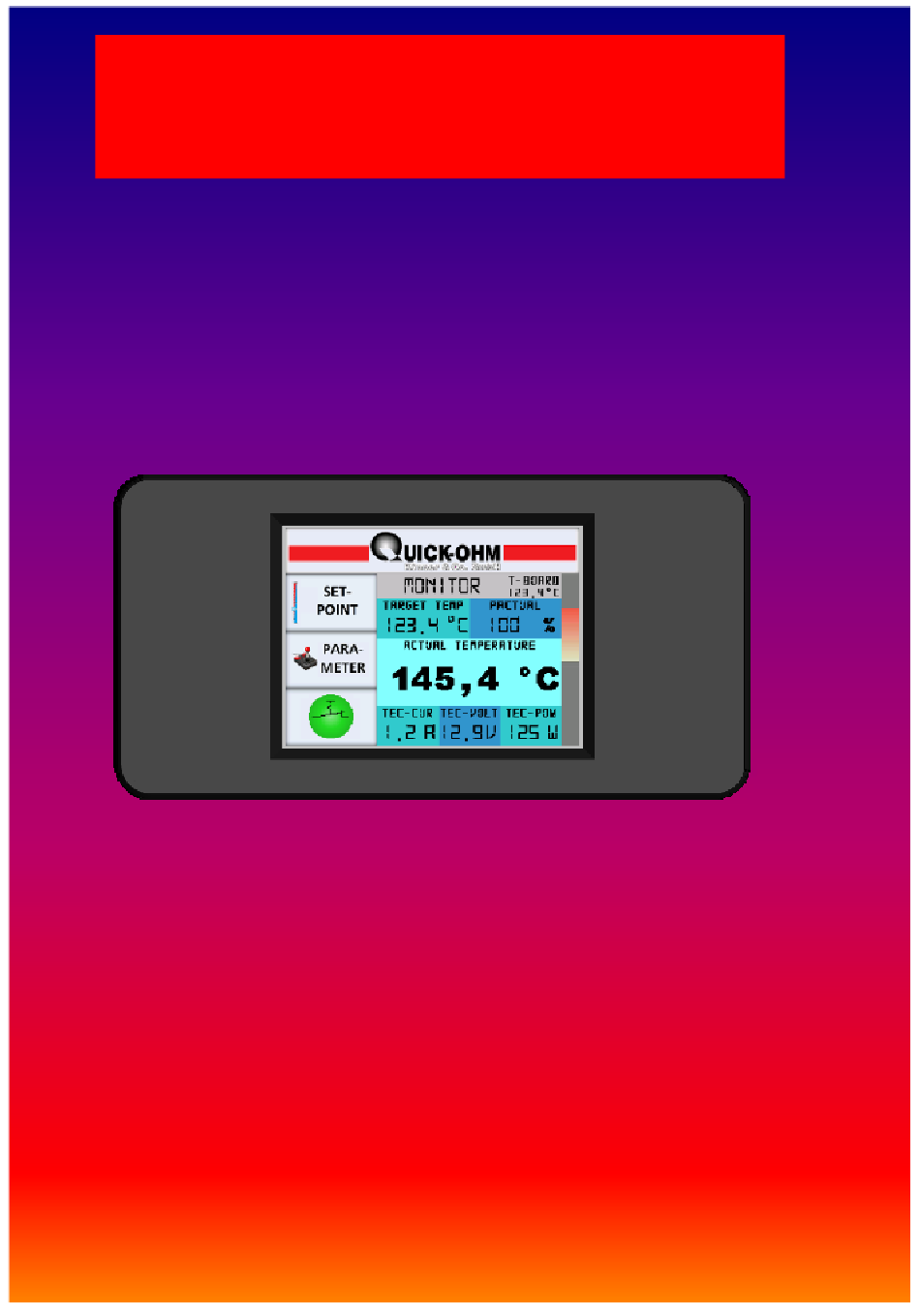

  • Page 1 Manual QC-PC-PID-01 Peltier-Controller...

  • Page 2: Table Of Contents

    General remarks on the control parameters KP, TN and TV ..............24 Parameterization according to Ziegler & Nichols .................. 25 Summary of commissioning ........................26 Reset controller to factory setting ......................27 Drawing: ..............................28 Peltier controller ..........................28 PT1000-Sensor ........................... 29 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.
  • Page 3 Quick-Ohm Küpper & Co. GmbH Cronenfelder Straße 75 42349 Wuppertal Germany www.quick-ohm.de www.quick-cool.de 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 4: Technical Specifications

    100mA / Emitter on ground Intended use and description of the controller The QC-PC-PID-01 is used for controlling temperature. The controller detects the temperature via a PT1000 sensor (deliverables) and controls a peltier element with a continuously regulated DC voltage.

  • Page 5: Correct Polarity Of The Peltier Element

    (also called "cold side") is at the top. Quick-Ohm peltier elements have their imprint on the “cold side”. The object to be tempered must be thermally coupled to the cold side.

  • Page 6: The Thermal Design

    You can find information about the use of Peltier elements in our library on our homepage. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 7: Before Switching On

    Before switching on, make sure that the maximum permissible current of 8 amperes cannot be exceeded. The data sheet of the Peltier element must be consulted for this. Please read these instructions carefully. The menu is explained below. This is followed by a description of a step-by-step start-up. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 8: The User Interface (Menu)

    The user interface (Menu) After applying the supply voltage, the monitor menu is displayed on the touchscreen. All important values and various states of the controlling are visualized here. From here you can access the individual submenus. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 9: Monitor-Menu

    ACTUAL TEMPERATURE shows the temperature currently measured on the sensor TEC-CUR shows the current flow through the connected element TEC-VOLT shows the current voltage at the output TEC-POW shows the electrical power that is supplied to the connected element (TEC-POW = TEC-VOLT X TEC-CUR) 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.
  • Page 10 Bar display = Control value display (tacho) The bar indicates the current status of the control system. -up / red: Heating - Full deflection at maximum heating -down / blue: Cooling - Full deflection at maximum cooling 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 11: Setpoint-Menu

    Key function: Switches ON peltier element Display function: Output is OFF TARGET TEMPERATURE shows target temperature SENSOR OFFSET (CAL) shows sensor offset ACT. TEMP. Shows the actual temperature measured with the sensor TEC-CUR shows the actual current through the peltier element 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 12: Password-Menu

    The password can be changed. jumps into the CHANGE PASSWORD-MENU (only if the correct password was entered beforehand, otherwise the system jumps back to the MONITOR-MENU) 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 13: Change Password-Menu

    Safety query aborts the process and returns to the MONITOR-menu without changing the password Before the password can be overwritten, a safety query appears to prevent the password from being changed accidentally. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 14: Safety Query

    The security query protects against unwanted password changes. changes the password and jumps to the PARAMETER-MENU The new password is set. The old password is no longer valid. aborts the process and returns to the MONITOR-menu. The old password remains unchanged. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 15: Parameter-Menu

    PARAMETER-MENU, the first digit of the proportional gain KP flashes. KP flashes increases the flashing digit decreases the flashing digit jumps to the next digit changes to the next line (from KP to PM and back to KP) 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.
  • Page 16 Display Function: Output is ON. Key Function: Starts output Display Function: Output is OFF. jumps back to the MONITOR-menu jumps to the PA SET MENU. The values KP, TN and TV can be stored here. rameter 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 17: Pa Set Menu

    4 shows the PID parameter set in memory location 4 overwrites ACTUAL PARA with selected parameter RECORD 1/2/3/4 overwrites RECORD 1/2/3/4 with ACTUAL PARA jumps back to PARAMETER-MENU. Now the last shown ACTUAL PARA is active. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 18: Software Version

    Software Version Here you get the information about the software version. Touching the centre of the display switches back to the MONITOR-menu. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 19: Controller Connection

    = PM x 10V Control signal → 0V / GND Open col. Output open collector Experts only Collector connection Control output Open-Collector Open col. Output emitter / Potential Emitter GND zero / GND Imax = 100mA 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 20: Before Start-Up

    Peltier element will overheat during operation within a few seconds and consequently get damaged. A poorly cooled Peltier element will not achieve the set goal. You can find helpful information on our homepage under the heading Library. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 21: First Commissioning Step By Step

    Parameter settings Switch from the MONITOR to the parameter menu To do this, tap - You get into the password menu: 0000. You will be asked to enter the password. By default, the password is 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 22: Determine And Set Pm

    DC voltage may be connected. Example: If the supply voltage is 24 volts and the Peltier element is to be operated with a maximum of 12 volts, set the value PM to 50%. 12�� × 100% = 50% 24�� 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 23: Start Temperature Control

    Check the power indicator. If a value of above 8A or above the I (data sheet Peltier element) is displayed, tap the operation indicator again to switch off the output. Check your assembly and the parameters. Correct the mistake. And then turn it on again. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 24: Adjustment Of Control Parameters

    Optimizing the parameters using this method requires a lot of experience. Without this experience, we recommend the method for determining the parameters according to Ziegler & Nichols. This procedure is described below for this controller. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 25: General Remarks On The Control Parameters Kp, Tn And Tv

    X1 differs from such a parameter set for reaching the temperature X2. If the controller is to control a certain temperature range, the best compromise must be found for this range. The parameter determination according to the Ziegler & Nichols vibration method has proven to be useful. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 26: Parameterization According To Ziegler & Nichols

    According to Ziegler & Nichols, the controller now has the following parameters: o KP = 0,6 KP TN = 5 T TV = 1,25 T Krit Krit Krit If you enter these values in the controller, the control should work well. 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 27: Summary Of Commissioning

    Switch off the supply voltage Connect the Peltier element to terminals 1 and 2 Switch on the supply voltage Switch operating indicator light to On Monitor current temperature (temperature value must move towards target temperature) Adjust parameters if necessary 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 28: Reset Controller To Factory Setting

    The individual keystroke is not communicated to the user via feedback. If the buttons are pressed successfully in the order mentioned, the controller is reset with all parameters in the delivery state (default state). All saved values will be lost 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 29: Drawing

    Drawings: Peltier controller 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.

  • Page 30: Pt1000-Sensor

    PT1000-Sensor Stainless steel sleeve Connection cable silicone 200°C 04.10.2021 20210927 QC-PC-PID-01-Bedienungsanleitung engl.
