Quick-Ohm QC-PC-CO-CH1 User Manual

Temperature Controller for Automatic Heating and Cooling

Technical specifications:

-Voltage supply:
-Separate driver supply:
-Maximal Peltier current:
-Interface Display connect:
-Temperature range:
-Sensitivity: 0,1 °C
-Accuracy +/- 1 K
-P-control characteristic
-Control parameter for heating and cooling range
separately adjustable
-Maximal nominal value limit adjustable
-Minimal nominal value limit adjustable
-Maximal output voltage adjustable
-Minimal output voltage adjustable
-Detection of sensorial burst and short circuit

1 Proper application of the controller QC-PC-CO-CH1

The Peltier controller QC-PC-CO-CH1 has been developed to actuate Peltier elements. The controller
undertakes the control of the temperature in a tempering setup. The temperature range of the controller
serves from -40°C to +100°C, while the controller triggers the Peltier element automatically for a
suitable heating or cooling. The control parameters are programmable by the display QC-PC-D-CH1.

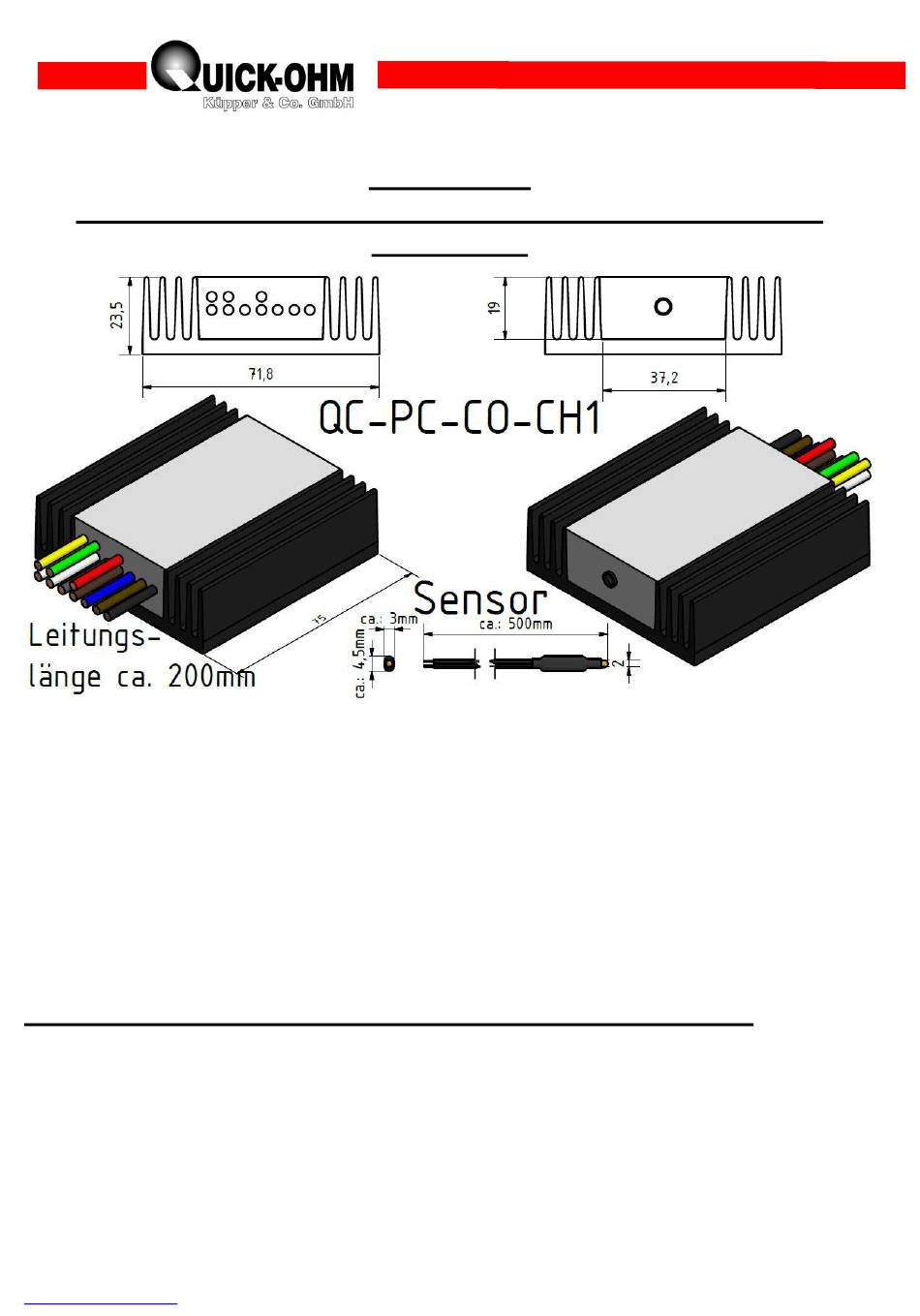

The compact construction of the QC-PC-CO-CH1 enables the integration of the controller into a
controlling setup, without a significant disturbance of the overall design. The temperature
specification either has to be implemented by an external connectable potentiometer or a
programmable fixed value. The user has the ability to determine the supply voltage of the controller
Quick-Ohm Küpper & Co. GmbH
Components – Heat Management – Industry Ceramics
www.quick-ohm.de
Peltier Controller QC-PC-CO-CH1
User Manual
Applications
12....24VDC/<45mA
3...48VDC
20A
3,5mm Stereo-Klinke
-40°C - +100°C
Delivery content:
1 Peltier controller QC-PC-CO-CH1
1 Temperature sensor NTC 10KΩ (β=3977K)
1 Potentiometer 10KΩ
1 User manual
- 1 -
User Manual English Controller QC-PC-CO-CH1 20181122
