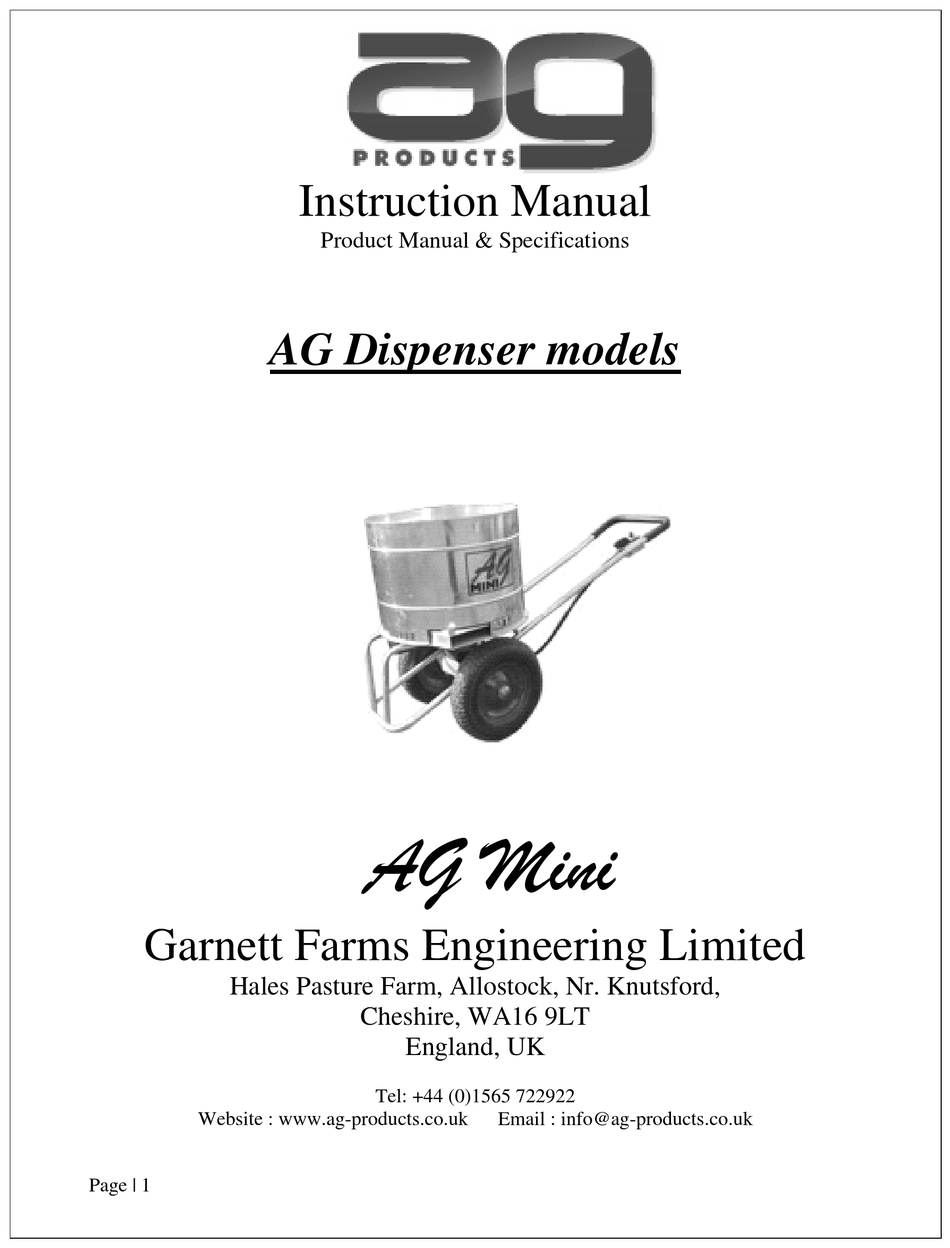

- Page 1 Instruction Manual Product Manual & Specifications AG Dispenser models AG Mini Garnett Farms Engineering Limited Hales Pasture Farm, Allostock, Nr. Knutsford, Cheshire, WA16 9LT England, UK Tel: +44 (0)1565 722922 Website : www.ag-products.co.uk Email : info@ag-products.co.uk Page | 1...
-
Page 2: Safety Instruction
SAFETY INSTRUCTION EEC Directives and British Standards To effect the correct application of the safety requirements stated in the EEC Directives and the British Standards, the following standards and/ or technical specification have been used. BS EN ISO 4254-1:2005 – Agricultural machinery – Safety and General Requirements. - Page 3 AG Mini IMPORTANT This manual list should be used in conjunction with the operator’s manual. Before starting, removing any parts packed, read the Operators manual. PRE-DELIVERY CHECK LIST, TO BE COMPLETED BY THE MANUFACTURER AND THE DEALER MANUFACTURER P-D-I Control on/off switch rear cover fitted Signs and safety stickers labelled.
- Page 4 This machine must not be released for delivery until the inspector has performed the pre-delivery inspection in accordance with the above requirements. Dealer branch _____________________________________ Dealer P-D-I inspector _____________________________________ AG thanks you for the purchase and we wish you a safe and productive use of this machine. Page | 4...
- Page 5 Pictogram to indicate ‘read product manual’ Pictogram to indicate ‘Caution – Rotating Pictogram to indicate ‘read electronic safety’ mechanism- Do not put limbs inside mechanism’ from users manual. Ensure that safety goggles are worn during use of AG MINI. Page | 5...
-
Page 6: Identification Of The Machine
4. Only the operator must operate the AG Mini and must remain in control during the complete working cycle. 5. Do not attempt to use the AG MINI if any of the Safety guards have been removed, are damaged or missing. -
Page 7: Specification
! Practice workshop safety at all times! ! IMPORTANT – DISCONNECT BATTERY BEFORE ASSEMBLY OF AG MINI! 1) – Ensure the AG MINI is placed on the ground in a stable position. 2) – Ensure all guards are fitted correctly before use. FIG.1... - Page 8 Position 3 - OFF Never charge when switch is in any position other than position 1. Never charge the AG MINI with any other charger than the unit supplied. Never leave the battery flat, always charge battery after use.
- Page 9 General instructions for the 3 stage battery charger 1) Plug the charger in and switch on. 2) During start up the charger will determine battery status and depending on the result will switch to either BULK charge mode (red indicator ON) or FLOAT charge node (green indicator ON) NOTE, when the charger enters float charge mode the battery is 100% fully charged.
-
Page 10: Operation
DO NOT operate the machine with bystanders present. The AG MINI has been designed to bed cubicles with ease and speed, following are some simple guidelines in this booklet will ensure the AG machine is reliable and satisfactory. - Page 11 ARROWS!!!!!!!!! MOTOR BREAKER IMPORTANT: Machine blockage: In the unlikely event of machine blockage. ALWAYS ensure the AG MINI is switched off and the battery is disconnected. Never attempt to clear blockages by hand; always use a tool of some kind.
-
Page 12: Maintenance
Varying distance of application It is also possible to alter the distance the material is distributed. This is shown in figure 6. FIG 6 Moving the distribution bolt in this direction will increase the distance the product is thrown. Moving the distribution bolt in this direction will decrease the distance the product is... - Page 13 Removal of drum When servicing the AG MINI, the following steps may wish to be followed. These steps, if followed, will ensure that the AG MINI is running to its full potential. DICONNECT BATTERY TERMINALS!!!! FIG.7 Remove the agitator plate, by simply pulling the plate off the shaft.
- Page 14 Clearance on distributing vane FIG.9 Ensure a clearance gap of 3 mm between the distributor arm and the base of the machine shown in Fig 9 (A). Also ensure there is a gap of 5 mm between the distributor arm and the top plate shown in Fig 9(B).
-
Page 15: Motor Removal
Motor removal Fig 11 To remove the flicker vane you need to first remove the bin as shown on page 8. Fig 12 Then taking a punch and hammer you need to remove the roll pin as shown in fig 11 Once the roll pin is removed the vane will pull off as shown in fig 12 Fig 13... -
Page 16: Parts List
PARTS LIST AG Mini parts Page | 16... - Page 17 Page | 17...
- Page 18 Page | 18...
- Page 19 AG Mini electrical drawings Page | 19...
- Page 20 Garnett Farms Engineering Limited Clay Bank Farm, Allostock, Nr Knutsford, Cheshire WA16 9NE Tel: 01565 722 922 Fax: 01565 723303 ITEM QUANTITY Machine REQURIED PART NO. DESCRIPTION MINI MC1-4 APETURE PLATE MINI MC3-01-1 M6 NUT MINI MC1-02-1 BASE MINI MC3-06-1 WHEEL CAP MINI MC3-06-2...
