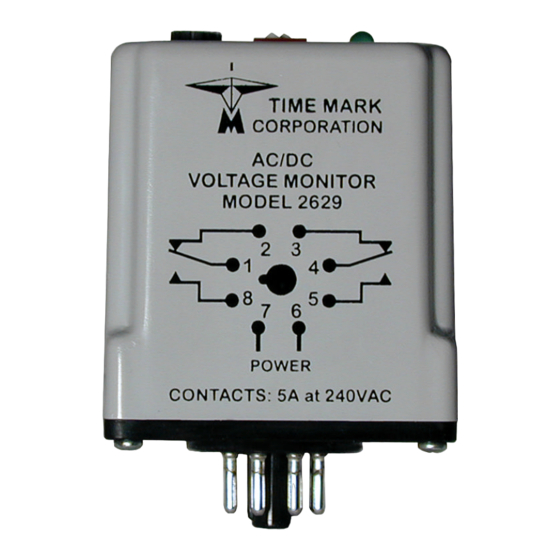

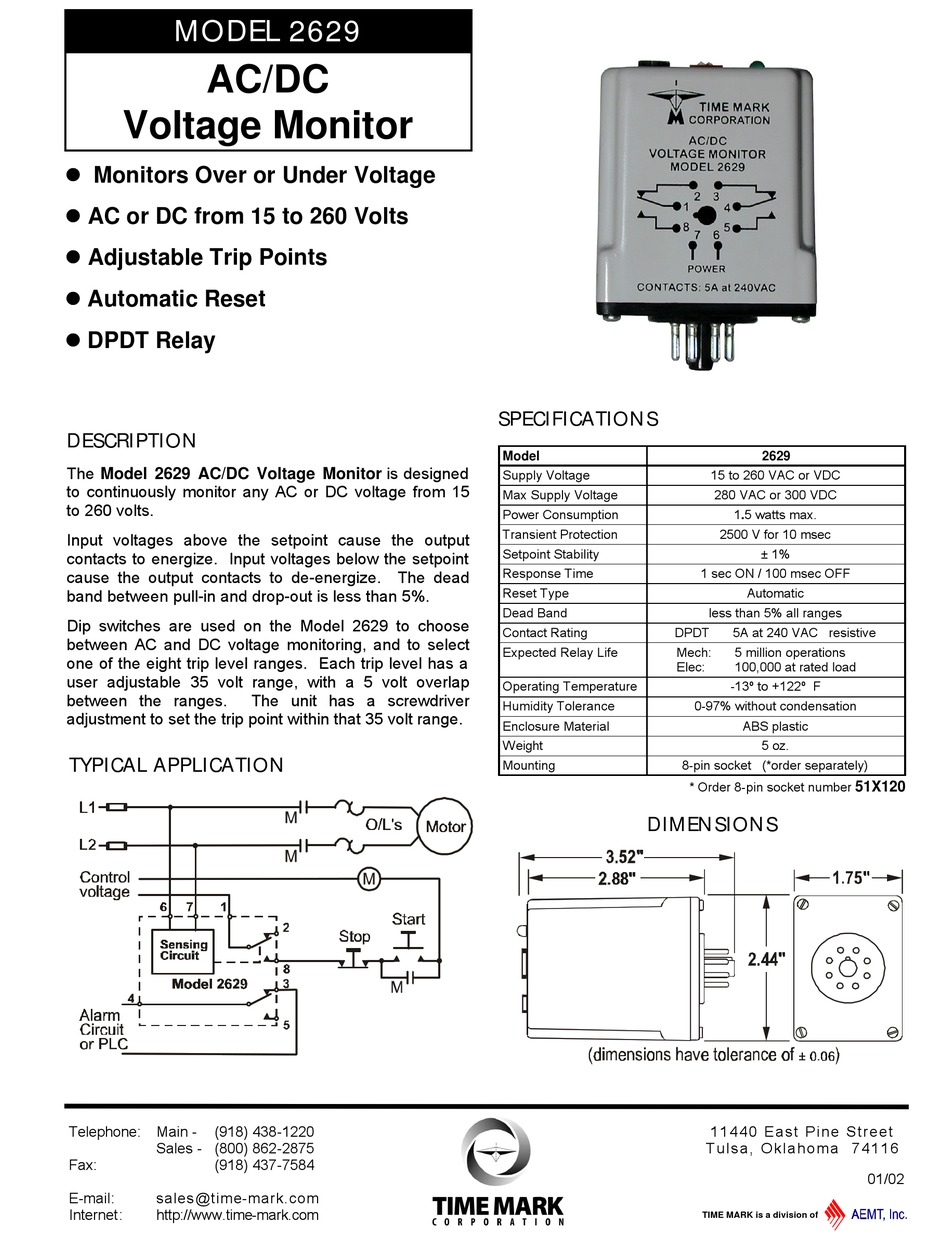

TIME MARK 2629 Manual

MODEL 2629
AC/DC
Voltage Monitor
l l Monitors Over or Under Voltage
l l AC or DC from 15 to 260 Volts
l l Adjustable Trip Points
l l Automatic Reset
l l DPDT Relay
DESCRIPTION
The Model 2629 AC/DC Voltage Monitor is designed
to continuously monitor any AC or DC voltage from 15
to 260 volts.
Input voltages above the setpoint cause the output
contacts to energize. Input voltages below the setpoint
cause the output contacts to de-energize. The dead
band between pull-in and drop-out is less than 5%.
Dip switches are used on the Model 2629 to choose
between AC and DC voltage monitoring, and to select
one of the eight trip level ranges. Each trip level has a
user adjustable 35 volt range, with a 5 volt overlap
between the ranges.
adjustment to set the trip point within that 35 volt range.
TYPICAL APPLICATION
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
The unit has a screwdriver
SPECIFICATIONS
Model
Supply Voltage
Max Supply Voltage
Power Consumption
Transient Protection
Setpoint Stability
Response Time
Reset Type
Dead Band
Contact Rating DPDT
Expected Relay Life Mech:
Elec:
Operating Temperature
Humidity Tolerance
Enclosure Material
Weight
Mounting
DIMENSIONS
2629
15 to 260 VAC or VDC
280 VAC or 300 VDC
1.5 watts max.
2500 V for 10 msec
± 1%
1 sec ON / 100 msec OFF
Automatic
less than 5% all ranges
5A at 240 VAC resistive
5 million operations
100,000 at rated load
-13º to +122º F
0-97% without condensation
ABS plastic
5 oz.
8-pin socket (*order separately)
* Order 8-pin socket number
51X120
