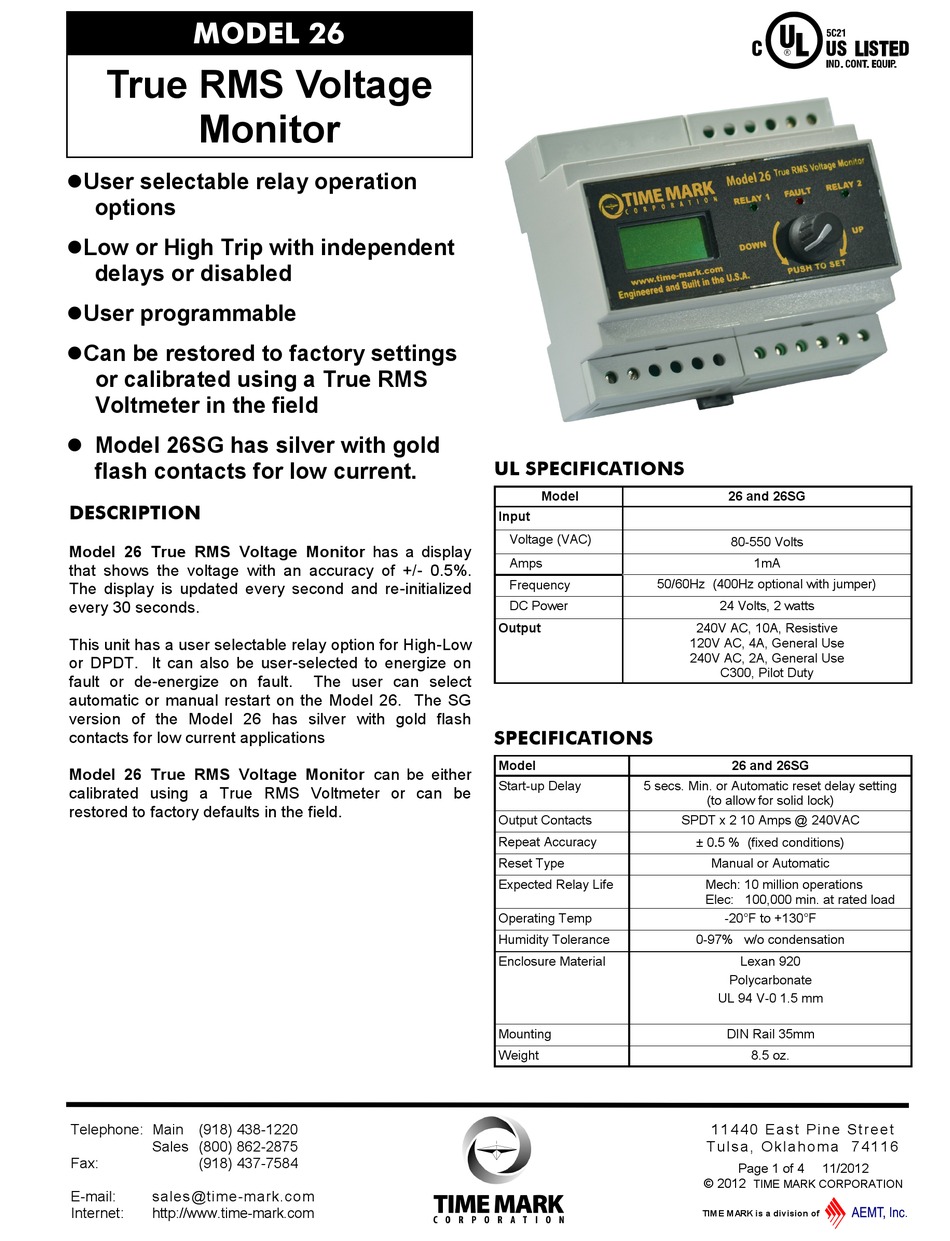

TIME MARK 26 Quick Start Manual

MODEL 26
True RMS Voltage
Monitor
 User selectable relay operation
options
 Low or High Trip with independent
delays or disabled
 User programmable
 Can be restored to factory settings
or calibrated using a True RMS
Voltmeter in the field
 Model 26SG has silver with gold
flash contacts for low current.

DESCRIPTION

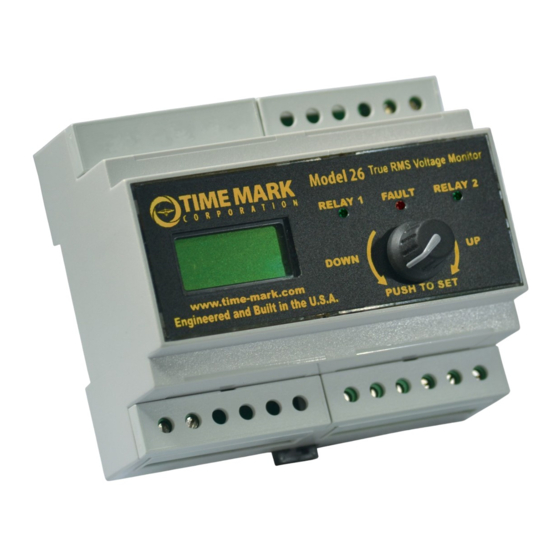

Model 26 True RMS Voltage Monitor has a display
that shows the voltage with an accuracy of +/- 0.5%.
The display is updated every second and re-initialized
every 30 seconds.
This unit has a user selectable relay option for High-Low
or DPDT. It can also be user-selected to energize on
fault or de-energize on fault.
automatic or manual restart on the Model 26. The SG
version of the Model 26 has silver with gold flash
contacts for low current applications
Model 26 True RMS Voltage Monitor can be either
calibrated using a True RMS Voltmeter or can be
restored to factory defaults in the field.
Telephone: Main (918) 438-1220
Sales (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
The user can select

UL SPECIFICATIONS

Model
Input
Voltage (VAC)
Amps
50/60Hz (400Hz optional with jumper)
Frequency
DC Power
Output

SPECIFICATIONS

Model
Start-up Delay 5 secs. Min. or Automatic reset delay setting
Output Contacts
Repeat Accuracy
Reset Type
Expected Relay Life
Operating Temp
Humidity Tolerance
Enclosure Material
Mounting
Weight
26 and 26SG
80-550 Volts
1mA
24 Volts, 2 watts
240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty
26 and 26SG
(to allow for solid lock)
SPDT x 2 10 Amps @ 240VAC
± 0.5 % (fixed conditions)
Manual or Automatic
Mech: 10 million operations
Elec: 100,000 min. at rated load
-20°F to +130°F
0-97% w/o condensation
Lexan 920
Polycarbonate
UL 94 V-0 1.5 mm
DIN Rail 35mm
8.5 oz.
