TABLE OF CONTENTS
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 5
4 Installation Instructions ---------------------------------------- 6
5 Operating Instructions------------------------------------------ 8
6 Test Mode ----------------------------------------------------------13
7 Service Mode -----------------------------------------------------15
8 Troubleshooting Guide ----------------------------------------16
9 Critical Torque Valuess ----------------------------------------18
10 Disassembly and Assembly Instructions ---------------19
11 Component Specifications -----------------------------------30
12 Wiring Connection Diagram ---------------------------------37
13 Exploded View and Replacement Parts List -----------39

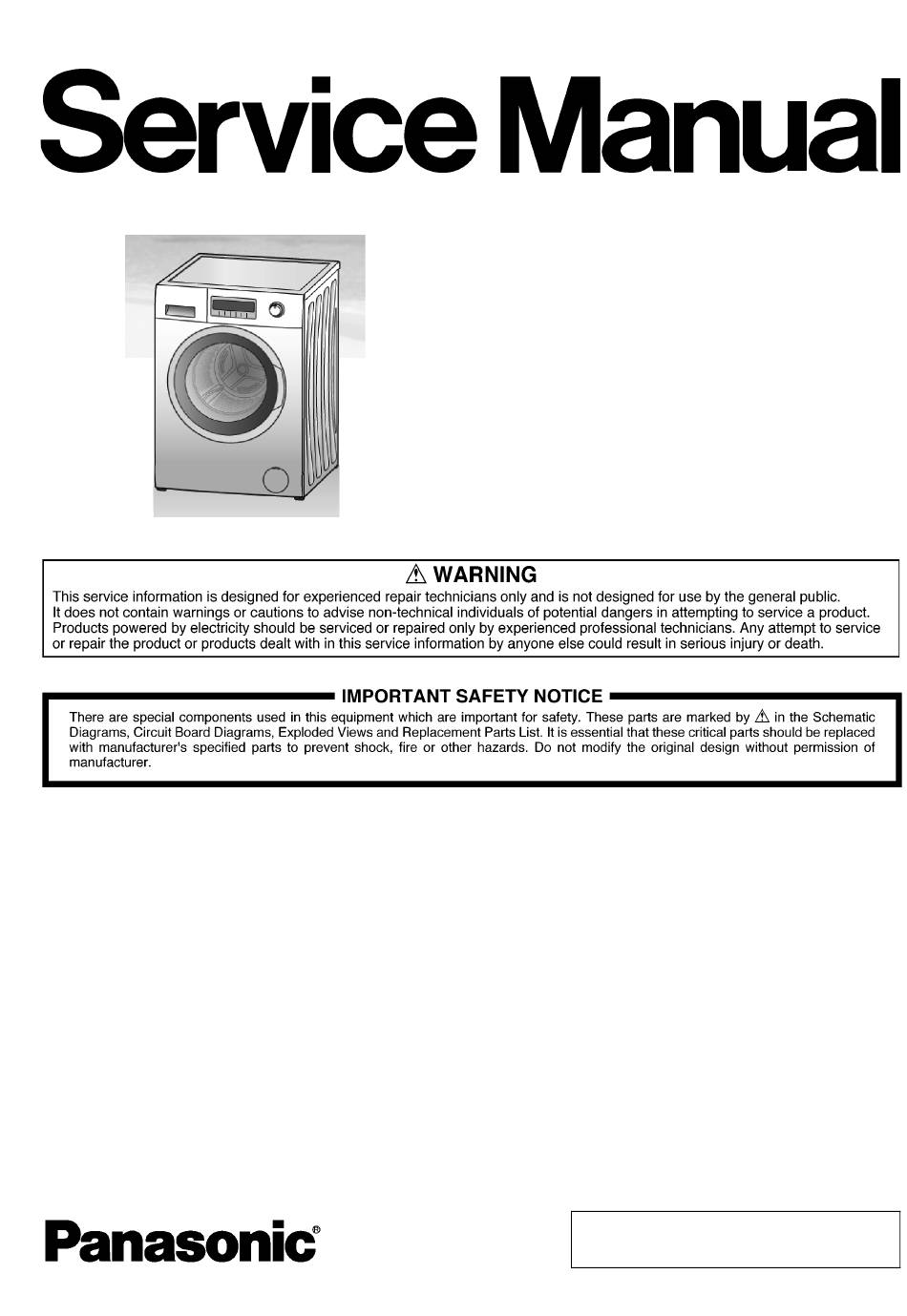

Drum Type Washing Machine
Model No.
Product Colour
Destination
PAGE
© Panasonic Corporation 2014 Unauthorized copy-
ing and distribution is a violation of law.
Order No. VES1404005CE
NA-A47VC5WDE
White
Germany
PAGE
Advertisement
Table of Contents
Related Manuals for Panasonic NA-A47VC5WDE
Summary of Contents for Panasonic NA-A47VC5WDE
-
Page 1: Table Of Contents
9 Critical Torque Valuess ----------------------------------------18 10 Disassembly and Assembly Instructions ---------------19 11 Component Specifications -----------------------------------30 12 Wiring Connection Diagram ---------------------------------37 13 Exploded View and Replacement Parts List -----------39 © Panasonic Corporation 2014 Unauthorized copy- ing and distribution is a violation of law. -
Page 2: Safety Precautions
NA-A47VC5WDE 1 Safety Precautions... -
Page 3: Specifications
NA-A47VC5WDE 2 Specifications 2.1. Product Specifications Model NA-A47VC5 Product Type Front Loader Capacity 7 kg Max Spin Speed 1400 rpm Drum Volume 50 lt Energy Label Rating Energy Consumption 195 kWh / annum Water Consumption 10337 L / annum Wash... - Page 4 NA-A47VC5WDE 2.3. Dimensions Dimension in millimetres NA-A47VC5...
-
Page 5: Location Of Controls And Components
NA-A47VC5WDE 3 Location of Controls and Components... -
Page 6: Installation Instructions
NA-A47VC5WDE 4 Installation Instructions 4.1. Moving and Installing 4.1.1. Removal of Transportation Screw 4.1.2. Foot Adjustment 1. Transportation screws, which are located at the back side 1. Do not install machine on rugs or similar surfaces. of the machine, must be removed before running the 2. - Page 7 NA-A47VC5WDE 4.1.4. Water Supply Connection 1. Washing machine is supplied with a single (cold) water inlet. 2. To prevent leakage from the connection joints, a rubber washer is included in the hose packing. Fit this washer at the end of water inlet hose on the tap side.
-
Page 8: Operating Instructions
NA-A47VC5WDE 5 Operating Instructions 5.1. LCD Screen, Function Buttons & Knobs Program selector 16 programs including off position Switch 1, Start / Pause Switch 2, Temperature Selection Switch 3, Spin Speed Selection Switch 4, Delay Timer Selection Switch 5, Extra Rinse Option... - Page 9 NA-A47VC5WDE 5.2. Programmes 5.2.1. Selecting the Programe (Programmauswahl)
- Page 10 NA-A47VC5WDE 5.2.2. Power and Water Consumption (Strom-und Wasserverbrauch)
- Page 11 NA-A47VC5WDE 5.2.3. Details of Programmes (Details von Programmen)
- Page 12 NA-A47VC5WDE...
-
Page 13: Test Mode
NA-A47VC5WDE 5.3. Child Lock Activation Deactivation Press SW7 for 5 seconds. Press SW7 for 5 seconds. The Child Lock Symbol will disappear on LCD displayupon The Child Lock Symbol on appears on the LCD display as deactivation. Child Lock is active. - Page 14 NA-A47VC5WDE...
-
Page 15: Service Mode
NA-A47VC5WDE 7 Service Mode 7.1. Service Autotest 1. Set PR to program 3 ( ) and press SW2 At the end of heating, [SAU] visualization should make slow (T°C) blink to indicate that the step is over. Note: If user changes the selector position, machine will do what is defined for the new selected position. -
Page 16: Troubleshooting Guide
NA-A47VC5WDE 7.2. Failure Codes Error Indication Error Number Indication For User Indication For Service Yes/No Yes/No Door is not locked Door is unlocked during programme Lack of water Pump failure Overflow NTC or Heater Failure Motor Failure - 1 (Tachometer open-short circuit or... - Page 17 NA-A47VC5WDE FAILURE PROBABLE CAUSE METHODS OF ELIMINATION The pieces of some detergents which By calibrating machine for [Rinsing] program, make an There are residues of detergent do not dissolve in water may stick to additional rinsing or eliminate the stains After drying on the clothes.
-
Page 18: Critical Torque Valuess
NA-A47VC5WDE 9 Critical Torque Valuess Assembly Location Bolt/Nut Torque Min. Torque Nom. Torque Max. Air Pressure (Nm) (Nm) (Nm) Wrench. (rpm) Transport Screw Assembly Transport Screws 6.50 6.50 7.00 1000 Motor Assembly Motor Screws 6.00 6.50 7.50 Front Concrete Weight - Front Front Counterweight Screws 14.00... -
Page 19: Disassembly And Assembly Instructions
NA-A47VC5WDE 10 Disassembly and Assembly Instructions 10.1. Top Plate 2. Pull the door up. 1. Remove two screws that fix the top-plate at the back. 2. Push the top-plate back and pull it up. 3. Remove screws that fix the door group. - Page 20 NA-A47VC5WDE 10.3. Spring Wire 5. Remove the door inside plastic. 1. First remove the spring wire fixing the tub bellows seal by using the small size screw driver. Pull the tub bellows seal. 6. Remove six screws that fix the door hinge.
- Page 21 NA-A47VC5WDE 10.5. Control Panel 5. Remove electronic card cover as it is shown in the pic- tures by using small screw driver. 1. Remove the screw which fixes the control panel to the front panel. 2. Remove two screws fixing control panel.
- Page 22 NA-A47VC5WDE 3. Unplug display card connector. 4. Open fuse box and remove the fuse. 4. Remove the tub bellows seal. 10.7. Front Panel 1. Remove the screw fixing the front panel at the bottom. 5. Remove two screws fixing front panel to body.
- Page 23 NA-A47VC5WDE 10.9. Detergent Drawer Housing 7. Pull front panel up. 1. Remove the tub bellow hose by releasing the holder extensions of bellow hose. 8. Remove front panel 2. Unplug connectors from feed valve. 10.8. Support Bracket 1. Remove two screws fixing the body group on the upper 3.
- Page 24 NA-A47VC5WDE 10.10. Power Cable Group and EMI 4. Remove EMI filter. Filter 1. Remove the five conectors that is connected to the EMI filter. 10.11. Electronic Pressure Switch (EPS) 1. Unplug EPS connector. 2. Remove two screws fixing EMI filter.
- Page 25 NA-A47VC5WDE 3. Remove clamp from EPS hose. 2. Remove clamp fixing tub outlet hose. 3. Unplug drain pump connector. 10.12. Door Lock 1. Unplug door lock connector. 4. Remove screws holding drain pump. 10.13. Drain Pump 1. Remove clamp holding drain hose by using a plier.
- Page 26 NA-A47VC5WDE 10.16. Tub Bellow Seal 2. Gently pull counterweight out. 1. Remove the tub gasket clip by using small screwdriver. 10.15. Heater 2. Hold the tub bellows seal and gasket-body fixing spring 1. Unplug heater connectors. together, and pull them out.
- Page 27 NA-A47VC5WDE 10.19. Washing Group 2. Hold the transport screw and pull it out. 1. Unplug motor connectors. 10.18. Upper Counterweight 2. Cut all the cable ties which fix cable group 1. Remove two screws fixing the upper counterweight by using box wrench size 13 mm.
- Page 28 NA-A47VC5WDE 10.20. Shock Absorber Pin 2. Remove pulley. 1. Remove shock absorber pins squeezing the ratchet by a pliers. 10.23. Motor 1. Remove two screws holding motor by using box wrench. 10.21. Driven Pulley 1. Remove the belt rotating the driven pulley.
- Page 29 NA-A47VC5WDE 10.24. Tub 4. Remove 19 screws around tub using box wrench size 8 1. Remove tub inlet bellow hose loosening the clamp squeezing it by using a pliers. 5. Remove front tub. 2. Remove screw holding EPS reservoir. 6. Remove drum.
-
Page 30: Component Specifications
NA-A47VC5WDE 11 Component Specifications 11.1. Drain Pump Drain pump is both a mechanical and electrical component which is used to drain water inside the washing machine. It has an synchronous motor inside. For better performance maintenance, pump filter should be cleaned regularly. - Page 31 NA-A47VC5WDE 11.2. Heater Heating element (Resistance) is a component which is designed to regulate temperature of water inside the drum. It has three connections: Phase, neutral and ground con- nections. Technical features Nominal power 2000 W (±5%) Heater type Tubular heating element with NTC-sensor 24,8 ±5% ...
- Page 32 NA-A47VC5WDE 11.3. NTC Component which sends signals to PCB about the water temperature inside the tub. The Resistance () value of the NTC decreases as the temperature increases. Technical features Testing component Check the resistance value on the component with multimeter as shown below.
- Page 33 NA-A47VC5WDE 11.4. Valve Valve is an electrical and mechanical component which is designed to take water from the network system into the washing machine. It is operated by PCB card. Technical features Nominal voltage 220-240 V Rated flow 7 L/min (±15 %)
- Page 34 NA-A47VC5WDE 11.5. Electronic Pressure Sensor (EPS) Electromagnetic field occurs due to movement of pressur- ized membrane. The spring moves vertically by nucleus due to electromagnetic field. The water level is regulated according to the frequency changes of the spring by elec- tronic card.
- Page 35 NA-A47VC5WDE 11.6. Motor The washing machine has an asynchronous motor. It is controlled by the PCB. It is essential to check the motor for correct diagnosis and quick servicing. In the below picture, socket points on the motor is shown to measure with multi- meter.
-
Page 36: Wiring Connection Diagram
NA-A47VC5WDE 11.7. Door Lock Door lock is activated at the beginning of the program in order to prevent the door from opening. Locking is gener- ated by supplying power to PTC-bimetal, after max 6sec (220V), the bimetal will be warm and ready to close the contacts.
