MA-1206 60 watt
MA-1212
Professional Mixer/Amplifiers
Instruction Manual and Users Guide
R
MASTER
INPUT10
BASS
TREBLE
10
+ 10
10
+ 10
10
0
10
0
10
AUX2
MONITOR
OUTPUT
10
0
10
POWER
120 watt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-1206 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Electro-Voice MA-1206

Summary of Contents for Electro-Voice MA-1206

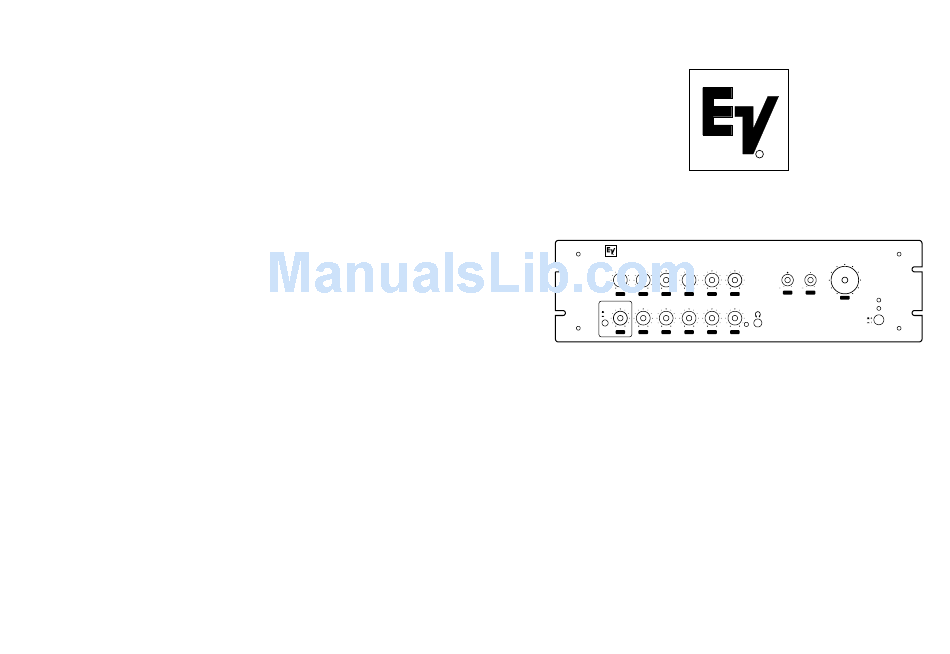

  • Page 1 Professional Mixer/Amplifier Professional Mixer/Amplifier INPUT5 INPUT6 INPUT7 INPUT8 INPUT9 INPUT10 Mute INPUT1 INPUT2 INPUT3 INPUT4 AUX1 AUX2 MONITOR OUTPUT MA-1206 60 watt MA-1212 120 watt Professional Mixer/Amplifiers Instruction Manual and Users Guide MASTER BASS TREBLE + 10 + 10 POWER...
  • Page 2 INSTALLATION NOTES At all times, the amplifier has to be operated under appropriate conditions. This includes that the operation location provided sufficient ventilation and the device is not exposed to direct sunlight or the direct radiation or reflection from any heat source. Installing the loudspeaker systems choose a location that gets not affected by extreme and / or constant vibration or other mechanical oscillation.
  • Page 3 SAFETY PRECAUTIONS 1. Please read the notes proceeded by the symbol with special attention, safety information. 2. The power supply voltage of the amplifier has a sufficiently high value to involve the risk of electrical shock; therefore, never install, connect, or disconnect the equipment with the power supply switched on.
  • Page 4 (3) years from the date of original purchase. Additional details are Included in the Uniform Warranty statement. Electro Voice 12000 Portland Avenue South, Burnsville , MN 55337 Phone: 952/884-4051, Fax:952/884-0043 www.electrovoice.com Telex Communications, Inc. 10/2001 Service or any of its authorized active electronics...
  • Page 5 Example of possible connections CD player AM/FM tuner Cassette recorder Speaker Contact "VOICE PRIORITY" CAUTION: LINE LINE WARNING ELECTRIC SHOCK HAZARD. DO NOT REMOVE COVER. RISK OF FIRE-REPLACE REFER SERVICING TO QUALIFIED PERSONNEL. SEE FUSE AS MARKED NO-OUTDOOR USE INSTRUCTION MANUAL. AVIS RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
  • Page 6 4: -20dB (100mV)-24K (for auxiliary appliance) MAIN IN / mono RAC jack / 0dB(1V)-10K / unbalanced 4 ohms 25V-70V-100V (10 , 83 , 170 )(MA-1206 series) 25V-70V-100V (5 , 42 , 83 )(MA-1212 series) PRE OUT / mono RCA jack / 1V-600 / unbalanced Loudspeaker / on terminal board / 1 watt-8 Monitor output / 6.3mm jack / 1.5V-600...
  • Page 7 Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Do not defeat the safety purpose of the grounding-type plug.
  • Page 8 18. "INPUT 1 ~ INPUT 10" Inputs These ten balanced/unbalanced combination type jack (XLR and 6.3mm) input, Meant for the connection of-condenser type microphone that accept 24V phantom power, dynamic microphone (30-600ohms) or a high level sound source (e.g AM/FM tuner, cassette desk, CD player, ect.) In case you are using , it is necessary to use the switch (20).
