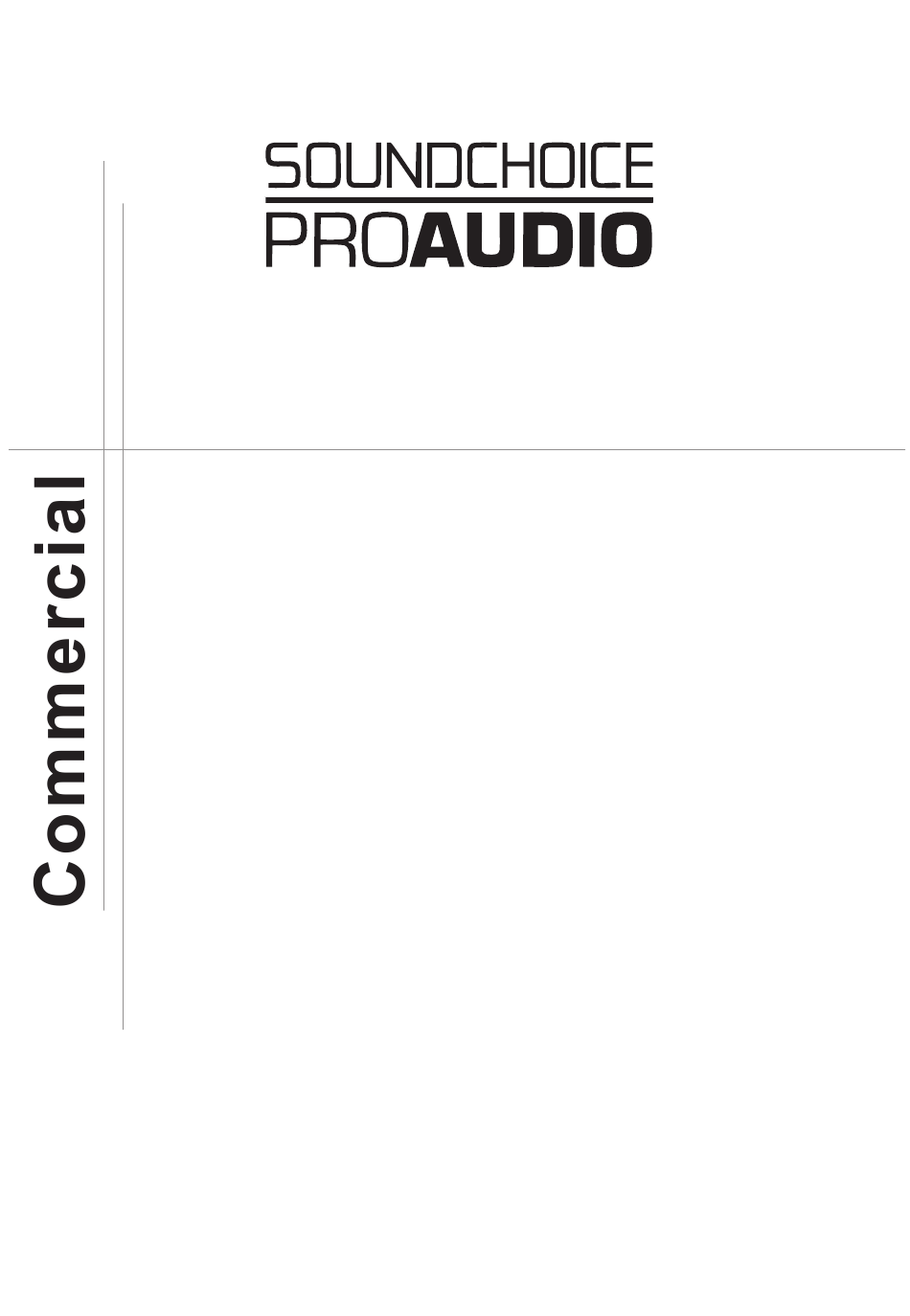

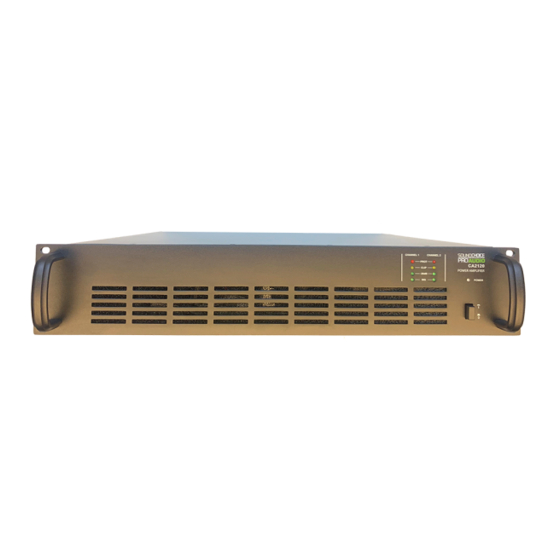

- Page 1 2 Channel Power Amplifier MODEL: CA2120 CA2240 CA2480 Warning:Before attempting to connect,operate or adjust this Amplifier, please read these instructions completely and carefully and save this Manual...
-
Page 3: Table Of Contents
Table of Content Table of Content Introduction ------------------------------------------ 2 Features ----------------------------------------------2 Front panel controls ------------------------------- 3 Rear panel controls ---------------------------------4 Block diagram ----------------------------------------5 Specifications ----------------------------------------6... -
Page 4: Introduction
Introduction/Features Introduction Welcome Congratulation and thank you for the purchasing CA2 series 2 channel constant voltage power amplifier. Unpacking and Installation Although it is neither complicated to install nor difficult to operate, a few minutes of your time is required to read this manual for a properly wired installation and to become familiar with its many features and how to use them. -
Page 5: Front Panel Controls
Front Panel Controls Front Panel Controls FRONT PANEL POWER 1.OUTPUT LEVEL METER These indicators show current output level. 2.CLIP INDICATORS These indicators warn against overload short on the each output channels. We recommend for users to adjust the VOLUME control when CLIP indicators are flicking for best performance. -
Page 6: Rear Panel Controls
Front Panel Controls Rear Panel Controls AC INPUT 230V ~ 50/60Hz 268W FUSE T2AL / 250V 1.AC POWER INPUT CONNECTOR A correct capacity fuse and power cable should be applied. Please make sure the value of fuse before replacing. 2.AMPLIFIER OUTPUTS These amplifier output blocks provide 100V constant voltage output for commercial and industrial use. -
Page 7: Block Diagram
Block Diagram Block Diagram... -
Page 8: Specifications
Specifications Specifications Model Name CA2120 CA2240 CA2480 Rated Output Power 120W X 2CH 240W X 2CH 480W X 2CH Output / Impedance 100V (83 Ω) 100V (42 Ω) 100V (21 Ω) Input 0dB/20KΩ Balanced Input sensitivity /Impedance 0dB/20KΩ Balanced link...
