Summary of Contents for Club Cannon HANDHELD MKII

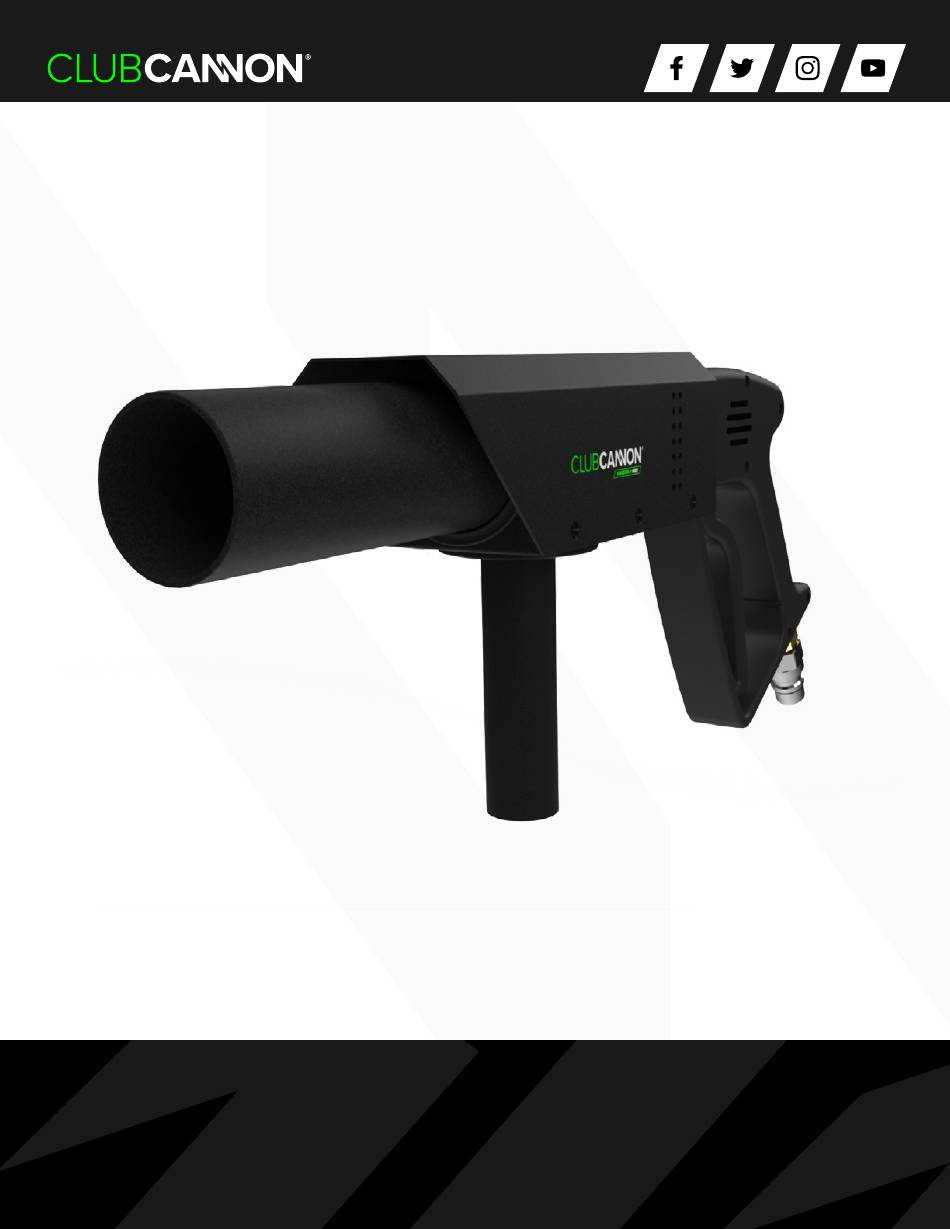

- Page 1 HANDHELD MKII User Manual V1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS HANDHELD MKII INTRO ..............1 OVERVIEW ..................1 FEATURES ..................1 INCLUDED ITEMS ................2 INCLUDED WARRANTY ..............2 SAFETY GUIDE ..................3 SAFETY RADIUS ................4 HARDWARE SPECIFICATIONS ............5 CO2 REQUIREMENTS .................6 CO2 SETUP ..................7 DEVICE TROUBLESHOOTING ............8 TERMS & CONDITIONS ..............9 CONTACT US ..................10... -
Page 3: Handheld Mkii Intro
If you have questions outside the scope of this manual, feel free to contact us directly. OVERVIEW The Club Cannon Handheld MKII is a handheld CO2 Cannon that produces 20-30FT plumes of ice cold fog, using liquid CO2. It is great for DJ’s, Touring acts, performers, nightclubs, DJ booths, sporting events, field entrances, theatre productions, weddings, special events and more. -
Page 4: Included Items
INCLUDED ITEMS The following items are included with the purchase of each Handheld MKII. If you need replacement items, contact Club Cannon, 888-804-8175 / info@clubcannon.com. HANDHELD MKII CO2 HOSE ACCESSORIES CO2 Cannon CGA-320 x Quick Connect CO2 Washers & Tool... - Page 5 SAFETY GUIDE DANGER WARNING NOTICE CAUTION This icon signifies that severe This icon signifies that severe This icon signifies that mild This icon signifies product bodily harm or death will bodily harm or death may to moderate injury may malfunction or damage may occur if instuctions are not occur if instructions are not occur if instuctions are not...
-
Page 6: Safety Guide
GUIDE SAFETY RADIUS The Handheld MKII can produce a plume of fog up to 30FT/9M. Images below outline the necessary safety radius, which must be observed at all times. 15FT Under no circumstance should any person or object be placed inside the displayed safety radius while system in under pressure. -
Page 7: Hardware Specifications
HARDWARE SPECIFICATIONS VENT HOLES BARREL SAFETY STABILITY HANDLE TRIGGER CO2 QUICK CONNECT INLET 19.84 2.87 3.70 7.26 7.77 8.21 8.21 1.22 WEIGHT: 3.5 LBs OPERATION: MANUAL 1.58 KGs DIMENSIONS: 20” x 8.25” x 2.875” CO₂ ~ 0.83LB / Sec CONSUMPTION: ~ 0.36KG / Sec... -
Page 8: Co2 Requirements
CO₂, which comes from a non-siphon CO₂ tank, will not create the desired fog effect. The siphon tube feeds the Club Cannon product liquid from the bottom of the tank, while a standard CO₂ tank draws gas from the top of the tank (see illustration). -
Page 9: Co2 Setup
Club Cannon products (the “Product”) are meant to be used to create special effects. Any use of these Products shall be in accordance with the Terms and Conditions presented at the time of sale, and as they appear in this manual. -
Page 10: Device Troubleshooting
• Check relative humidity. Low humidity will have a negative affect on the fog appearance. Issue not listed • Contact Club Cannon directly. No user serviceable parts inside. If your issue is not listed, or the suggested solution did not solve the issue, contact Club Cannon. -
Page 11: Terms & Conditions
When using the Products, make sure you are in an open field or a well-ventilated area and are at least fifteen (15) feet away from people or other living things. Never hold a Club Cannon® Product by the barrel, especially after it has been used as it becomes extremely cold. Once the Product is attached to the CO2 tank and the tank is turned on, the gas passing through the Product will be under pressure. -
Page 12: Contact Us
CONTACT CONTACT 856 Ricardo Ct. San Luis Obispo, CA 93401 888-804-8175 info@clubcannon.com ● www.clubcannon.com © CLUB CANNON...
