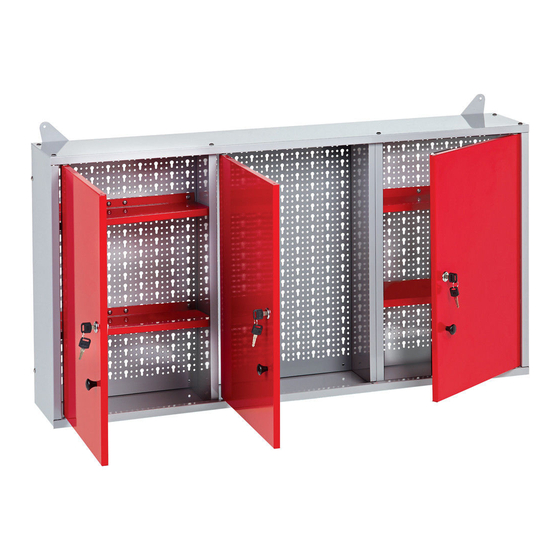

- Page 1 3 DOOR LOCKABLE WALL CABINET MODEL NO: CWC114 PART NO: 7642005 ASSEMBLY INSTRUCTIONS LS0814...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 WHATS SUPPLIED Description Top/Bottom Panel Side Panels Rear Panel Left divider Panel Right divider Panel Door (the centre door with a tool rack on the inside.) Shelf Wall Hanging Brackets Fixings kit (not shown) Includes • 32 x M5x10 round head bolt set (bolt, washer, nut) •...
- Page 4 ASSEMBLY 1. Place the left divider between 2. Use the fixings (nuts bolts and two rear panels as shown. washers) supplied, to secure in place. 3. Place the right divider against 4. Place the final rear panel the right panel as shown. against the right divider and use the fixings (nuts bolts and washers) supplied to secure in...
- Page 5 5. Make sure that the left and right 6. Place the top panel in place dividers are orientated as and use the fixings (nuts bolts shown above. and washers) supplied to secure in place. 7. Repeat this with the bottom and two side panels.
- Page 6 10. Place the key in the lock and 14. Insert the lock barrel (with the turn it so that the window on the green window at the top) front of the lock turns green. through the door and secure using the locknut as shown. 11.
- Page 7 18. Place the shelves into position 19. Place the tool hooks onto the and secure using the fixings rear panel . supplied. 20. A coimbination of shelves and tools is also possible. 21. Fit the wall hanging bracket as shown (one on each side). 22.
