FRC SPECTRA MAX-S Wiring, Installation And Mounting Templates

Advertisement

Quick Links

Document Number
XM-LGT1PMEX-R5F
SPECTRA MAX-S WIRING,
LAMPHEAD INSTALLATION AND
MOUNTING BRACKET TEMPLATES

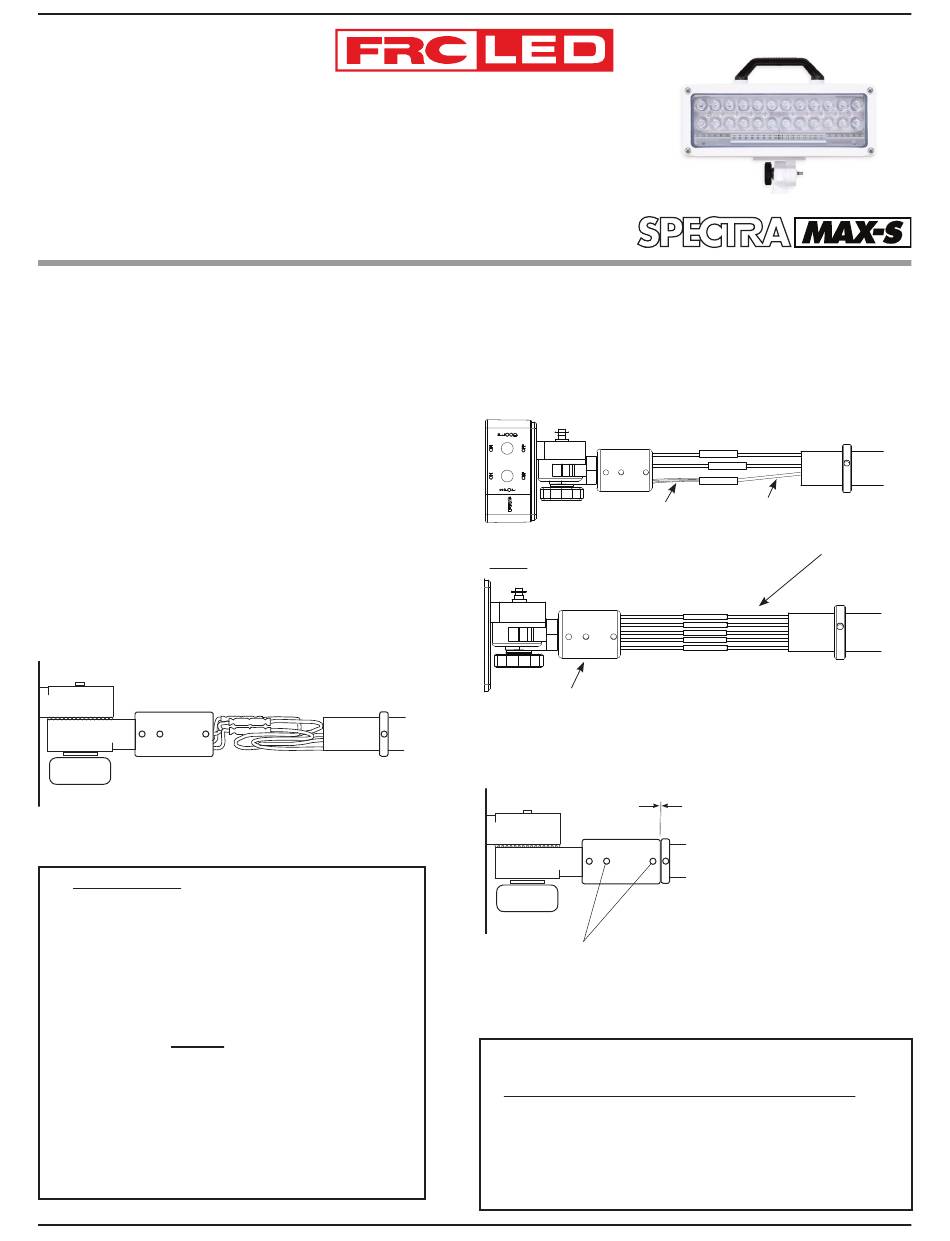

INSTALL LAMPHEAD ON TELESCOPIC POLE
Refer to the General Lighting manual or lamphead and model specific sheets for safety, maintenance, and installation instructions.
Lampheads and telescopic poles are shipped apart and need to be assembled.
Note: The 512 telescopic pole must be installed before the lamphead is attached if the small diameter hole is used. Refer to template
drawing for 512 Thru-The-Roof mount.
1.
Place the lamphead and the pole on a flat surface.
2.
Connect the lamphead wires to the pole wires.
a. Ensure that 3/8 inch of bare conductor shows at the end of
each wire.
b. Insert the wires in the butt connectors and crimp.
3.
Ensure the crimps are tight. (Test by lightly tugging on the wires.)
4.
Loop the excess wire in a zig-zag fashion to take up the slack.
5.
Slide the lamphead onto the pole tucking the wires into the pole.
Note: Ensure that the wires are not caught and
squeezed by the lip of the pole. If this happens the
wire insulation may be cut and short the wire to
the pole.
SPECTRA Max-S
12/24 V DC
{
Connect the RED wire to POWER.
Connect the BLACK wire to GROUND.
{
Connect the ORANGE wire to POWER.
Connect the BLACK wire to GROUND.
(without Switch option)
120/240 V AC
Connect the GREEN wire to chassis GROUND.
Connect the WHITE wire to RETURN.
{
Connect the RED wire to POWER.
Connect the WHITE wire to RETURN.
{
Connect the BLACK wire to POWER.
FIRE RESEARCH CORPORATION
26 Southern Blvd., Nesconset, NY 11767
TEL 631.724.8888 FAX 631.360.9727
TOLL FREE 1.800.645.0074
www.fireresearch.com
-ON
(with Switch option)
(without Switch option)
6.
}
SPOT
Note: Dimension A should be less than 0.015" (the thickness of a folded piece of
}
paper). If A is larger, a wire is probably caught. Disassemble and check for
FLOOD
wire insulation damage. If there is no damage, reassemble.
}
SPOT
}
FLOOD
Black
White
Silver Braid
R
W
B
W
G
DC powered light will only have four wires:
RED + BLACK and ORANGE + BLACK
Apply thread lock and tighten the set screws to secure the lamphead
on the pole. (A medium strength locking compound like Loctite blue
is recommended.)
Apply thread lock and tighten the set screws.
MAINTENANCE
Use a clean soft cloth, mild soap, and water to clean the lens.
NOTE: FRC led lampheads use Lexan lenses and cleaning with
abrasive materials, solvents, or most chemical cleaners can
cause lens surface degradation and reduced performance of
the light. Some chemicals will cause the lens to become
brittle and prone to cracking.
LGTR5F-Rev150518
