messana
zone
Job _________________________

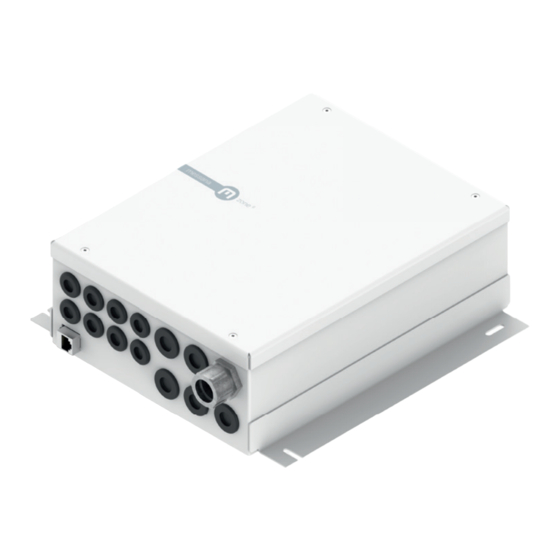

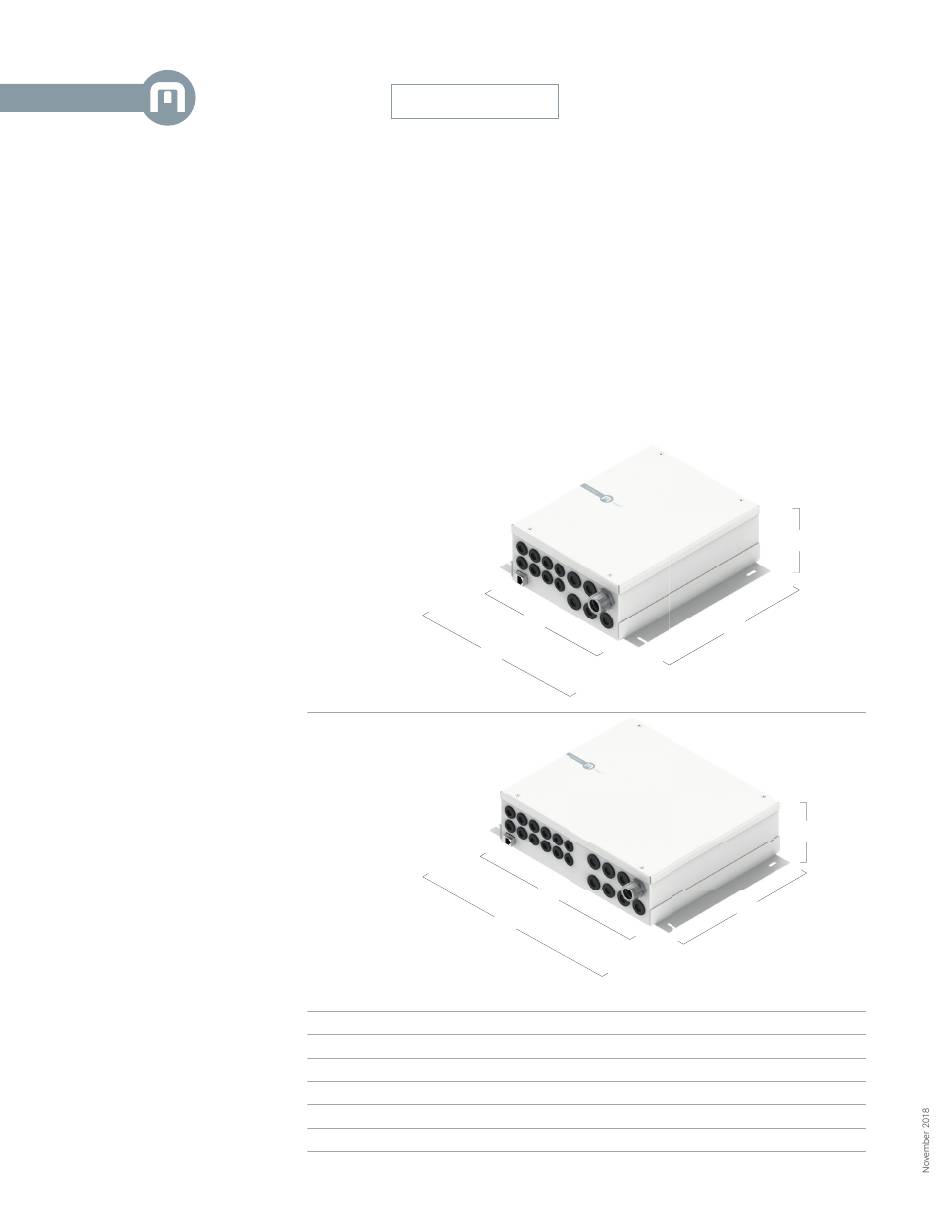

mZone is a fully programmable zone controller available in two different sizes: 8 and 12 zones. It is assembled
with industrial grade components for commercial and residential high-end applications. It connects with mBox via
Ethernet or, alternatively, via serial bus (RS485 slave) and integrates with the Messana climate control platform
developed with more then 20 years of experience in radiant cooling and heating technology.
Features
Size and weight
1
Casing
Environmental requirements
submittal
Designer _____________________
Controlled by mBox; connects with mSense; PID temperature control; thermal actuator staggered
activation; programmable analog I/Os; opto-insulated I/Os; additional graphic display (optional);
powered by Emerson Climate I/O controller.
size
W1: 10 inches (254 mm)
W2: 8 inches (203 mm)
D:
3 1/2 inches (90 mm)
H:
10 1/2 inches (267 mm)
W1
weight
8.5 lb (4 kg)
size
W1: 14 inches (357 mm)
W2: 12 inches (305 mm)
D:
3 1/2 inches (90 mm)
H:
10 1/2 inches (267 mm)
weight
11.5 lb (5.5 kg)
Mounting type
Protection grade
Color and finish
Operating ambient temperature
Relative humidity (indoor use only)
1
Contact _________________________
W2
W2
W1
Fixed mounting brackets
NEMA 4X (IP65)
Arctic white metal enclosure
36° to 110°F (2° to 45°C)
<90%, non condensing
mZone 8
D
H
mZone 12
D
H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mZone 8 and is the answer not in the manual?

Questions and answers

Related Manuals for Messana mZone 8

Summary of Contents for Messana mZone 8

  • Page 1 It connects with mBox via Ethernet or, alternatively, via serial bus (RS485 slave) and integrates with the Messana climate control platform developed with more then 20 years of experience in radiant cooling and heating technology.

  • Page 2: Technical Specifications

    DO15 (PWR). mZone8DO8 can only have one usage: either DO8 (24VDC) or power relay DO8 (PWR). Based on Messana two-wire (1W) thermal actuators. Max 3 actuators per digital contact (DO). Relay sockets pre-wired as dry contacts. Require Finder 44.52.9.024 miniature power relays (not included) rated 250VAC/6A (max 400VAC/10A).
  • Page 3 8 components and 2D footprint Components Legend DIN rail-mounted terminal blocks with Push-in CAGE CLAMP® I/O contacts Ethernet connection DIN rail-mounted relay holders and power relays Emerson iProGENIUS I/O controller (IPG208D) Inlet male power socket with switch and fuse holder (IEC 320 C14)
  • Page 4 mZone 12 components and 2D footprint Legend DIN rail-mounted terminal blocks with Push-in CAGE CLAMP® I/O contacts Ethernet connection DIN rail-mounted relay holders and power relays Emerson iProGENIUS I/O controller (IPG215D) Inlet male power socket with switch and fuse holder (IEC 320 C14) A/C Power Supply 120W (65W available to I/O) 14 (356 mm) 12 (305 mm)
  • Page 5 Inputs / Outputs contacts ZONE THERMAL ACTUATORS (24VDC) (mZone8DO1-DO8 and mZone12DO1-DO12) mZone 8 features eight digital outputs (DO1-DO8) and mZone 12 twelve digital outputs (DO1-DO12), dedicated to the activation of zone thermal actuators or zone valves. mZone 12 mZone 8 Each digital outputs is a 24VDC normally open contact with max 5Amps.
  • Page 6 0-10V or 2-10V programmable opto-insulated analog outputs for controlling motorized mixing valves, servo motors, actuators, fan-coils, and other analog devices. Can also be reprogrammed as 4-20mA. AO1 MIX (available on both mZone 8 and mZone 12) is typically used to control a motorized proportional mix valve to adjust the radiant fluid temperature.

  • Page 7: Power Contacts

    ON and OFF. DI AUX mZone 8 do not offer any digital input pre-wired on the terminal blocks on the DIN bar. Additional 11 Digital Inputs (DI1-DI11) are available directly on the embedded Emerson I/O controller and need to be wired directly on the push-in connectors located on the controller.
  • Page 8 The voltage supplied by the relay DO8 (PWR) is 110VAC or 220VAC, depending on the mZone AC power, and is protected by the same fuse of the mZone 8. Any high voltage device connected to DO8 (PWR) will be powered by the same mZone AC power supply and will be protected by the same fuse.

  • Page 9: Installation

    Relay holders and miniature power relays External miniature power relays for mZone8DO8 and mZone12DO13-DO15 digital outputs The digital outputs mZone8DO8 and mZone12DO13-DO15 are pre-wired to control the 24VDC coils (A1 and A2 COIL) of Finder relays (model 44.52.9.024, not supplied). Each miniature power relay features two separate poles (“1”...
  • Page 10 Double-pole dry contact relay The Finder relay features two columns of terminals, COM 11, NC 12, NO 14 (pole 1) and COM 21, NC 22, NO 24 (pole 2) equivalent to two single-pole relays actuated by a single coil 24VDC (A1, A2). Relay pinout diagram (top view) The two poles are electrically insulated and activated by the same digital output.
  • Page 11 Rewiring mZone12DO13-DO14 from dry contacts to 24VDC wet contacts mZone 12 features two auxiliary digital outputs (DO13 and DO14) for general purpose that are pre-wired a on two relays holders as dry contacts. To use these two contacts, a miniature power relay is required (Finder relay model 44.52.9.024, not included).
  • Page 12 Rewiring mZone12DO13-DO14 from dry contacts to high voltage (110/220VAC) wet contacts mZone 12 features two auxiliary digital outputs (DO13 and DO14) for general purpose that are pre-wired a on two relays holders as dry contacts. To use these two contacts, a miniature relay is required (Finder relay model 44.52.9.024, not included).

  • Page 13: Dry Contacts

    (DO8 for mZone 8 and DO15 for mZone 12) wired as normally open 110/220VAC wet contacts dedicated to directly activate a circulator pump or other high voltage devices. The circulator pump connected to the wet contacts NO 14 (N) and NO 24 (L) will be turned on and off by the relay based on the status of its related digital output (mZone8DO8 and mZone12DO15).
  • Page 14 24VDC wet contacts mZone module features one digital output (DO8 for mZone 8 and DO15 for mZone 12) wired as normally open 110/220VAC wet contacts dedicated to directly activate a circulator pump or other high voltage devices. The circulator pump connected to the wet contacts NO 14 (N) and NO 24 (L) will be turned on and off by the relay based on the status of its related digital output (mZone8DO8 and mZone12DO15).

  • Page 15: Electrical Drawing

    8 sample application drawing Below is a sample application drawing for this product. This application may include other Messana products that are required for installation. More sample applications can be found at radiantcooling.com. Electrical drawing DO8 (PWR) ZONE THERMAL ACTUATORS (24 VDC)
  • Page 16 12 sample application drawing Below is a sample application drawing for this product. This application may include other Messana products that are required for installation. More sample applications can be found at radiantcooling.com. Electrical drawing DO15 (PWR) DO13 DO14...
  • Page 17 Messana. (b) Without limiting the foregoing in any way, Messana is not responsible, in contract, tort or strict product liability, for any other (i) losses, (ii) costs, (iii) expenses, (iv) inconveniences, or (v) damages, whether direct, indirect, special, secondary, incidental or consequential, arising from ownership or use of the product, or from defects in workmanship or materials, including any liability for fundamental breach of contract.
