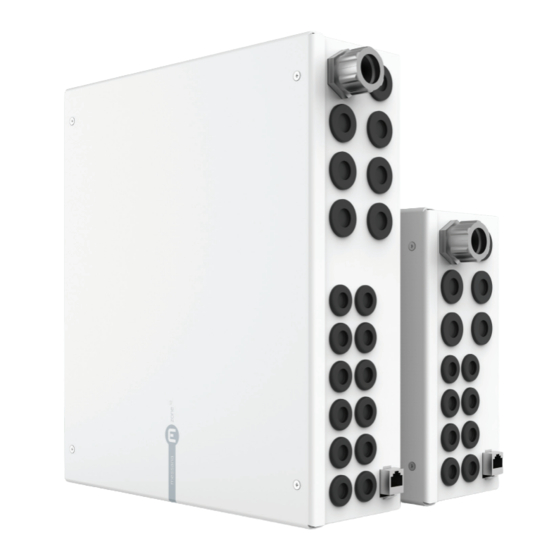

Messana mZone Installation Manual

Programmable zone controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
zone
messana

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mZone and is the answer not in the manual?

Questions and answers

Related Manuals for Messana mZone

Summary of Contents for Messana mZone

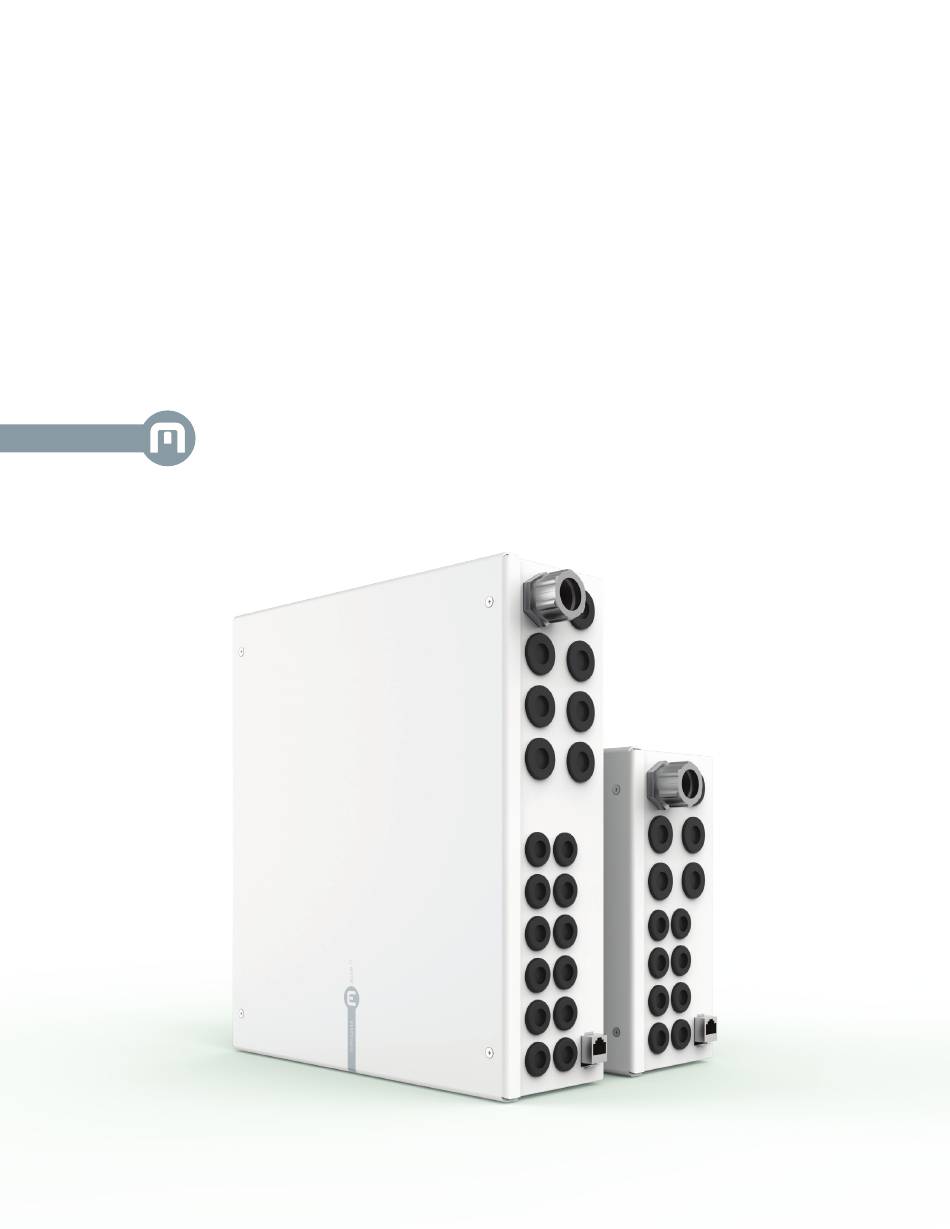

  • Page 1 messana...
  • Page 3 Messana mZone delivers a uniform comfort level thorough your living space.
  • Page 4 designed in California & made in Italy...

  • Page 5: Programmable Zone Controller

    34 thermal actuators (with mZone 12) The mZone module connects up to twelve mSense room sensors (mZone 12) or up to eight mSense (mZone 8) in daisy-chain via serial bus (RS485 master zone bus).
  • Page 6 WAGO terminal blocks with Ethernet or serial bus RS485). (mZone 8) or 12 (mZone 12) CAGE CLAMP® connection mBox is the brain of any Messana different zones. Each zone technology. It makes connections climate control platform. It is is monitored with the new...
  • Page 7 1 1 0 / 2 2 0 V a c 5 0 / 6 0 H z...

  • Page 8: Control Logic

    Messana PID temperature control logic mZone can dynamically modulate the fluid supply temperature when is combined with an hydronic mixing and pumping station. The mixing station features a high efficiency recirculating pumps, a motorized 3-way proportional mixing valve (0-10V or 2-10V) and two temperature probes installed on the supply (S) and return pipes (R). This configuration allows to a PID (Proportional Integrative Derivative) control loop with temperature feedback mechanism.
  • Page 9 The Messana PID control logic evaluates the supply temperature (target crosshai) based on how far is each zone from the desired set-point (proportional), how long is in that status (integrative) and how quick the radiant terminals reacts to the fluid temperature change (derivative). This technology allows to deliver just enough heat (or cool, by heat extraction) to always meet the actual internal loads and maintain the correct room operative temperature within a 0.5F differential.
  • Page 10 1. Staggered activation with 2 groups of thermal actuators. Group #1 is activated fist and Group # 2 is activated with 2 minutes of delay to minimize the power pick. It turns out that the power pick is reduced by 40%. This allows the mZone controller to drive up...
  • Page 11 Closed Warm-up Partially open Model Simultaneous opening Staggered activation logic with 2 groups mZone 8 Up to 10 Up to 18 mZone 12 Up to 17 Up to 31 Each digital output (DO) can drive up to 3 thermal actuators.
  • Page 12 systems...
  • Page 14 12 Reasons to choose mZone Below, in a nutshell, are the best 12 reasons to consider mZone for your next radiant cooling project. 1. Messana / Emerson programmable I/O module. We have based our technology on the new Emerson I/O module custom made and programmed on our specification.
  • Page 16 DO 12 (18) thermal actuators. mZone 12: Can control up to 12 zones and drive up to 17 (34) thermal actuators. Up to three thermal actuators can be connected to one digital output. Messana thermal actuators come with 1.5mt (5ft) of wire.
  • Page 17 Digital Input can be used for door/window or presence sensors, season changeover switch, alarms and any on/off communication. Additional programmable AO and DI are available on the Emerson/Messana I/O device. DRY CONTACT RELAY DIGITAL OUTPUT (SOCKET) Available on mZone12 only.

  • Page 18: Lcd Display

    LCD Display LCD Graphic display with membrane keyboard (optional). It allows to program the device and to read the status of the device. The mechanical contractor can override outputs, useful for startup and troubleshooting.

  • Page 20: Technical Specifications

    Zone Bus RS485 master with shield and 24Vdc power supply up to 8 mSense up to 12 mSense (Zone Bus 24Vdc/0V/SHL/D+/D -) Communication With Messana mBox module Ethernet (Modbus TCP) RS485 slave (Modbus RTU) note 10 Initial setup and programing...

  • Page 21: Size And Weight

    Emerson controller and need to be wired directly on the controller push-in connectors. Based on Messana two-wire (1W) thermal actuators (code RM1152). Max 3 actuators per Digital Output. Pre-wired relay socket for dry contact. Requires 24Vdc Finder 44.52.9.024 miniature industrial relays (not includ- ed).
  • Page 23 Installation Guide in the most simple way...
  • Page 24 0.5 ft 0.5 ft 0.5 ft...
  • Page 25 (install at least 3ft from manifold or pipes). 5ft cable for each actuator 11. Use wood screws to fix the mZone to wall. Anchors are recommended when mounting to drywall or masonry.
  • Page 26 Return Supply Aux AI / AO Aux DI 22 AWG 22 AWG AI 3 AO 2 DI 1 DI 2 DI 3 DI 4 DI 5 DI 6 AI 4 AI 5 AI 6 AI C AO C AO 3 AO 4 DI 7 DI 8 DI 9 DI 10 DI 11 GND...
  • Page 27 5ft/1.5mt included with valve (extent up to 500ft/150mt with 18AWG cable) zone 2 max 3 actuators for each zone (DO) max 36 actuators for mZone 18 AWG 5ft/1.5mt included with valve (extent up to 500ft/150mt with 18AWG cable) zone 1 (1/3)
  • Page 28 Return Supply To Aux AI on page 25 Commons to be added together on this terminal or wired on the front terminal block. To Aux AO on page 25 Do not use this terminal. To Aux DI on page 25...
  • Page 29 ID 4 Termination ON 18 AWG max 3 actuators for each zone (DO) 5ft/1.5mt included with valve max 36 actuators for mZone (extent up to 500ft/150mt with 18AWG cable) zone 6 zone 1 (1/3) zone 1 (2/3) zone 1 (3/3) 18 AWG 5ft/1.5mt included with valve...
  • Page 30 Messana Radiant Cooling typical system wiring diagram Wiring Legend mSense data/power cable (22 AWG 2-pair twisted cable)  Outdoor Sensor RS485 twisted pair (Slave)  Ethernet CAT 5  DO Digital Outputs  Digital Inputs  use AWG18 twisted pair AO Analog Outputs ...
  • Page 31 (Bus) (Bus) (Bus) (Bus) (Analog) (1 speed digital) max 300ft m mSense (n+m ≤ 12) Window or Presence Activations mZone Alarms mSense ID n+1 mSense ID n+2 mSense ID m Termination ON mPad mPad mSense Window or Presence max 300ft...
  • Page 32 Mixing and pumping station with mZone 8 (2 pipe system) With mZone 8 you can control a 2-pipe heating and cooling system with a mixing and pumping station with up to 7 different zones. DO 8 (PWR) ZONE THERMAL ACTUATORS (24 VDC)
  • Page 33 Mixing and pumping station with mZone 12 (2 pipe system) With mZone 12 you can control a 2-pipe heating and cooling system with a mixing and pumping station with up to 12 different zones. DO 13 DO 14 DO 15 (PWR)
  • Page 34 This schematic allows to convey a 4-pipe system in a 2-pipe system with heating and cooling non simultaneous. With mZone 8 you can control the system with up to 6 different zones (DO1-DO6). Two of the 8 DOs are used for the pump activation DO8 and the DV1 and DV2 H/C diverting valves (DO7).
  • Page 35 110/220Vac ID 1 110/220V 50/60Hz mSense ID 6 mZone 8 Up to 6 zones (DO1 - D06). DO7 24 VDC for DV1 and DV2 in parallel. DO8 is used for the pump activation. mZone 12 zone Up to 12 zones (DO1 - DO12).
  • Page 36 A 4-pipe system requires also two mZone modules: With two mZone 8, you can control a 4-pipe system with up to 7 different zones (DO1-DO7). DO8 used for the pump activation. With two mZone 12, you can control a 4-pipe system with up to 12 different zones (DO1-DO12).
  • Page 37 ID 12 mZone 8 Up to 7 zones (DO1 - D07). DO8 is used for the pump activation. mZone 12 zone Up to 12 zones (DO1 - DO12). DO15 is used for the pump activation.
  • Page 38 6 Serial Bus (RS485 slave) Up to 10 serial devices can be attached to the RS485 slave serial bus of the mBox. This includes mZone controllers and other Modbus devices. Each device must have a unique Modbus address. Each device connected to the serial bus must be set with a unique address. Refer to section “How to setup mZone”.
  • Page 39 M Ethernet with supplemental Serial Bus (RS485 slave) It is also possible to connect mZone to mBox with Ethernet and Serial bus as a back up. When both connections are provided, only one communication protocol can be activated on mBox.
  • Page 40 Use a 18AWG/3C mains power cord with NEMA 5-15P plug and free/stripped-end connection and a 3/8” cable connector. 1. Secure the 3/8” cable connector to the mZone enclosure and the 3/8 hole with the red ring. 2. Pass the cable through the gland.
  • Page 41 1. Connect mZone LAN port to a computer using an Ethernet cable. 2. Add a power cord and plug the mZone to a 110 Vac outlet. 3. Configure your computer with a static ip (follow instructions from your OS vendor).

  • Page 42: System Status

    Access to mZone Once your computer is configured, open a web browser and type this address: http://172.16.0.11 iPro - Configuration & Analisys messana Login Home iPro by Dixell System status Variables DIXELL S.r.l. BIOS release is 2015072400 Z.I. Via dell’Industria, 27...
  • Page 43 Login to mZone Click the Login link below the Messana logo and enter Login and Pasword Login: admin Password: Dixell iPro - Configuration & Analisys messana Login Login Login Home iPro by Dixell System status Variables DIXELL S.r.l. BIOS release is 2015072400 Password Z.I.

  • Page 44: Network Configuration

    Network configuration iPro - Configuration & Analisys messana User: admin | Login Home TCP/IP Port Variables IP address: 172.16.0.1 HTTP port: Netmask: 255.255.255.0 HTTPS port: Configure Network: 172.16.0.0 Modbus slave port: Files Gateway: 172.16.0.254 Isa WB port: 1131 Accounts DNS: 172.16.0.254...
  • Page 45 Both IP address and Serial Bus address can be set and used for Ethernet and/or Serial Bus connection. 3. Go to the Modbus over serial line tab and assign a new address for the mZone in the range 1 to 247.

  • Page 46: Advance Settings

    Advance settings iPro - Configuration & Analisys messana User: admin | Login Disable watchdog for this session Home Variables Reboot the machine Configure Files Generate debug report Accounts 2017/09/05 - 10.19 - Synchronize time Advanced Firewall Get mZone ID...
  • Page 47 Generate debug report Generate debug report: this button generates a debug report that can be requested by Messana Radiant Cooling in order to solve some issues. Any information contained in this file needs a Dixell technician in order to be completely understood.
  • Page 48 Digital Outputs override (F08x) Set to “TRUE” or “FALSE” the value of the digital output. For example, in a mZone 8 the address F080 corresponds to the 24Vdc powered digital output DO1 (associated to the thermal actuator of the zone #1). Overriding the value to “TRUE” will activate the 24Vdc contact of the zone #1 (the thermal actuator of zone #1 will open up).
  • Page 49 - Configuration & Analisys messana User: admin | Login Change variables Home Update Variables Variabiles Address: F000 Value: F000 Set Variabile Configure Files Base Accounts addr. Advanced F00x 3899 3546 2286 32767 32767 32767 32767 32767 32767 32767 F01x...

  • Page 50: Analog Outputs

    I/O readings and override Manual mode Software version Address mZone 8 mZone 12 Address mZone 8 mZone 12 0 (FALSE) - Automatic F0F2 Software version F0F0 1 (TRUE) - Manual Analog inputs Analog outputs Address mZone 8 mZone 12 Address...
  • Page 51 - Configuration & Analisys messana User: admin | Login Change variables Home Update Variables Variabiles Address: F000 Value: F000 Set Variabile Configure Files Base Accounts addr. Advanced F00x 3899 3546 2286 32767 32767 32767 32767 32767 32767 32767 F01x...
  • Page 52 8 product wiring diagram C R6 40 41 42 43 47 48 49 Ser. Port – – – 10 11 Out3 DI10 Out4 DI11 – Supply DO 15 (PWR) ZONE THERMAL ACTUATORS (24 VDC) ZONE BUS AO MIX AI (NTC)
  • Page 53 12 product wiring diagram 70 71 72 73 79 80 81 – DI10 Out2 Out4 GND(-) DI11 Out1 Out3 GND(-) 52 53 27 28 10 11 DI11 DI13 DI15 DI17 DI19 Out6 GND(-) DI12 DI14 DI16 DI18 DI20 Out5...
  • Page 54 Designed by Messana specifically for Radiant Cooling and Heating Systems Messana offers a unique home climate control platform designed with 20-year experience in hydronic radiant cooling and heating. The Messana control system integrates a unique technology to modulate radiant fluid temperatures so that surfaces stay above the dew-point, while keeping occupants comfortable and boosting energy efficiency.

  • Page 55: Warranty Conditions

    (12) months from the documented date of installation if installed within twenty-four (24) months from the production date. The liability of Messana under the Limited Warranty shall be limited to, at Messana’s sole discretion: the cost of parts and labor provided by Messana to repair defects in materials and/or workmanship of the defective product;...
  • Page 56 Colophon designed in California & made in Italy copyright © 2017 by Messana Radiant Cooling All Rights reserved. Messana Radiant Cooling 4105 Soquel Dr, Suite B, Soquel CA 95073 radiantcoling.com...
  • Page 58 Messana Radiant Cooling - 4105 Soquel Dr, Suite B, Soquel - CA 95073 - USA...

This manual is also suitable for:

Mzone 8Mzone 12
