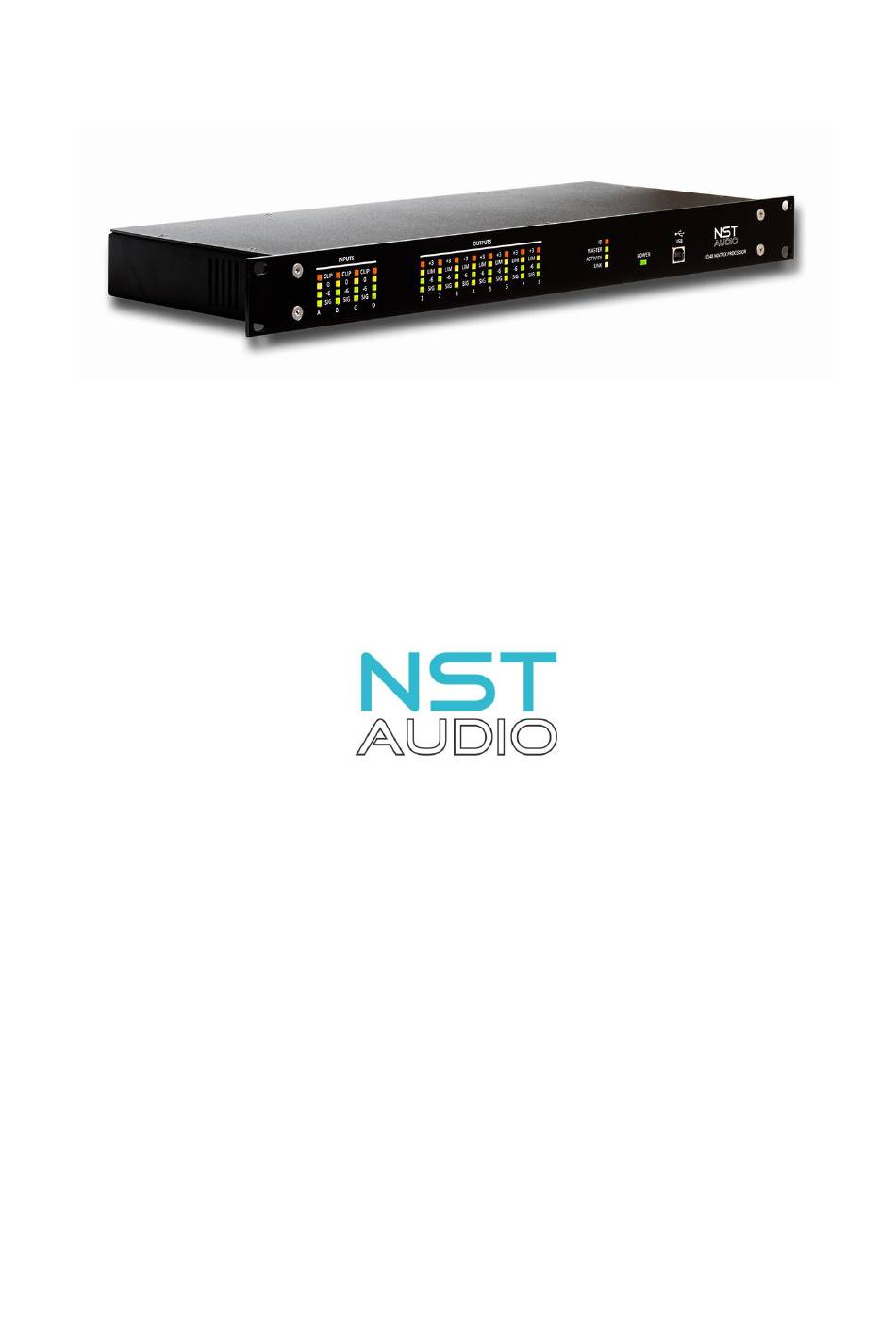

- Page 1 ID48 – Installation Matrix Signal Processor User Manual Revision 1.2.2 www.nstaudio.com © NST Audio Ltd 2017...
-
Page 2: Table Of Contents
Contents Contents Page Declaration of Conformity Important Safety Instructions WEEE and ROHS Thank you, Unpacking and Installation Overview and Key Features Front Panel Overview Rear Panel Overview D-Net Computer Control Software Technical Specifications Maintenance, Servicing, Warranty and Contact... -
Page 3: Declaration Of Conformity
EU Declaration of Conformity This declaration is issued under the sole responsibility of the manufacturer. The object of the declaration is in conformity with the relevant Union harmonisation Legislation. NST Audio Ltd 15 Chamberlain Road Worcester Worcestershire WR2 4PP England... -
Page 4: Important Safety Instructions
Important Safety Instructions Terminals marked the lightning symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high- quality cables with plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock. -
Page 5: Weee And Rohs
WEEE Once your NST Audio product has reached the end of its useful life, please ensure that is recycled in a proper manner. "The WEEE Regulations 2013 are the UK interpretation of the EU WEEE Directive and aim to reduce the quantity of waste electrical and electronic equipment (WEEE) disposed of in the UK". -
Page 6: Thank You, Unpacking And Installation
Thank You Thank you for choosing an NST Audio product for your application. Please spend a little time reading through this manual, so that you can obtain the best possible performance from the unit. All NST products are carefully designed and engineered for cutting-edge performance and world-class reliability. If you would like further information about this, or any other NST product, please do not hesitate to contact us. -
Page 7: Overview And Key Features
The ID48 runs at 96kHz as standard but can be switched into 48kHz mode to take advantage of 48dB/oct output crossover filters and two bands of dynamic EQ on both input and output channels. -
Page 8: Front Panel Overview

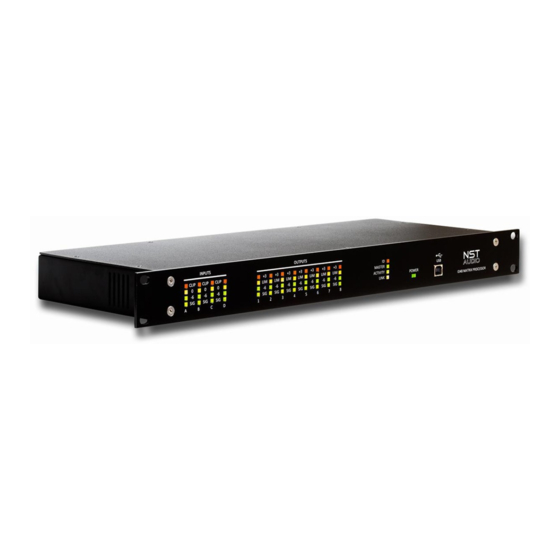

Unit Overview Front Panel Overview: 1. Input Meters: Real time LED input meters show level from maximum input level (clip) in 4-segments... Signal present, 6dB below clipping, 0dB/maximum input level and clip*. *If analogue input clipping is neared by 1dB, the red input Clip LED will illuminate to show this. 2. -
Page 9: Rear Panel Overview
Rear Panel Overview: 1. Mains Power Inlet, Fuse and Power Switch: 3-pin IEC input, fused [5mm x 20mm, 3.15A, 250V, Anti-Surge (T)], 90-250VAC, 50-60Hz <40W. A spare fuse is located within the fuse holder – only replace with the correctly rated fuse! 2. -
Page 10: D-Net Computer Control Software
Compatibility with Microsoft Windows, Apple Mac and Apple iPad too, you can control your system the way that suits you. USB connection (Microsoft Windows only) is also available on some devices, allowing quick connection to a single device. D-Net is available to download, free of charge, from the NST Audio website: nstaudio.com/software-downloads... -
Page 11: Technical Specifications
Technical Specifications Analogue Inputs – 4 Electronically balanced, pin 2 hot CMRR: >60dB @ 1kHz Maximum Level: >20dBu Input Impedance: 10kΩ balanced Analogue Outputs – 8 Electronically balanced, pin 2 hot Maximum Level: >20dBu Source Impedance: <60Ω Performance: Frequency Response (20Hz to 20kHz): +/-0.4dB Dynamic Range: >110dB unweighted (in to out analogue) THD + N (+10dB @ 1kHz): 0.0007% Latency: 0.896ms (in to out, analogue, 96kHz), 1.792ms (in to out, analogue, 48kHz) -
Page 12: Maintenance, Servicing, Warranty And Contact
This product comes with a warranty against defects in components and workmanship only, for a period of five years from the date of shipment to the customer. During the warranty period, NST Audio will, at its discretion, either repair or replace products that prove to be defective, provided that the product is returned, shipping prepaid, to an authorised NST Audio service facility.
