使用說明書
除濕機
型號：DB25W-H

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi DB23W-H

Summary of Contents for Mitsubishi DB23W-H

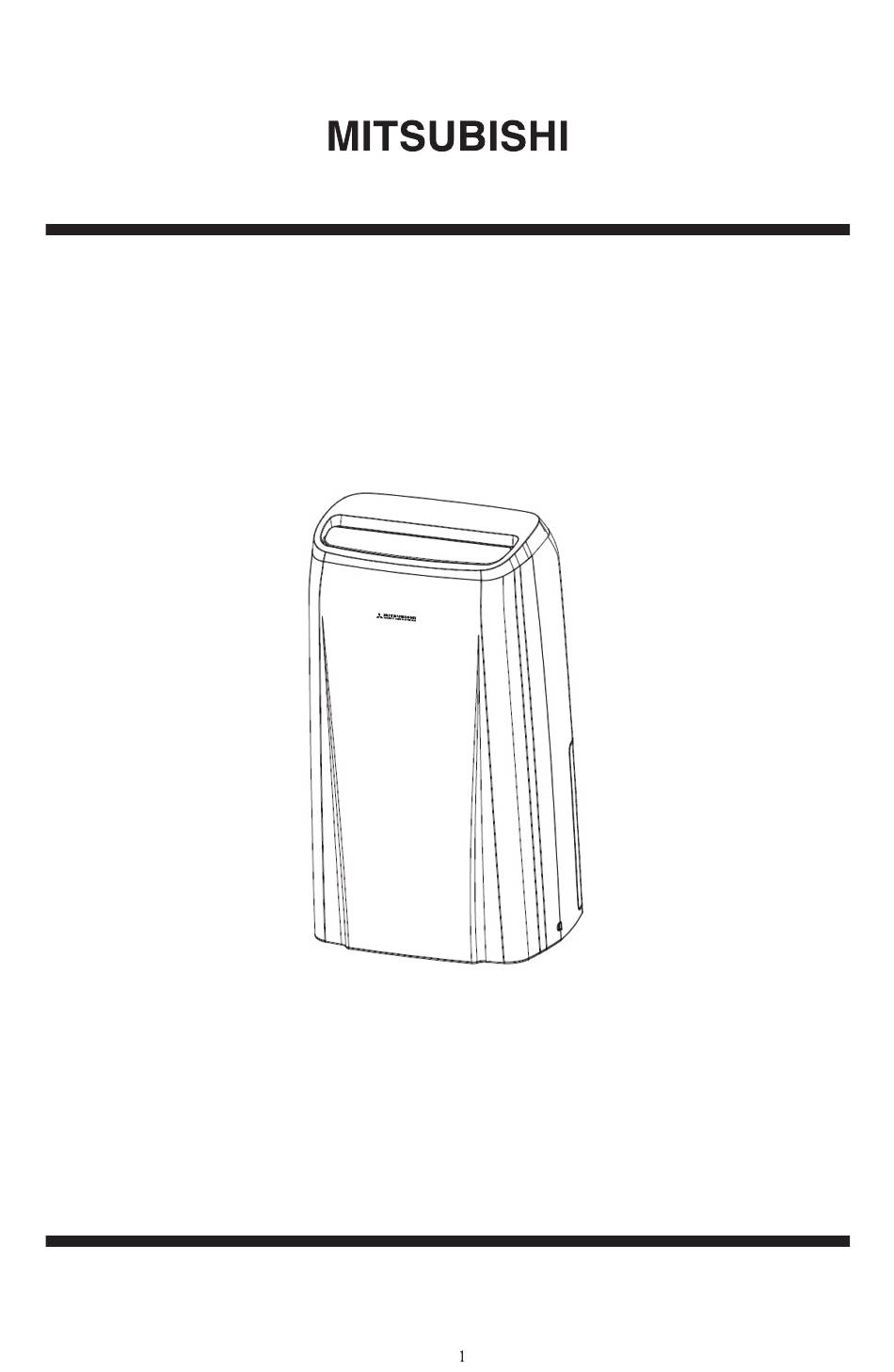

  • Page 1 使用說明書 除濕機 型號：DB25W-H...
  • Page 2 ..........3 ............. 6 ..........7 .......... 8 控制面板 ............ 8 ........8 ........8 .......... 9 ..........9 .......... 9 ..........9 五 維護與保養 ........... 10 ..........10 六 主要性能參數...
  • Page 10 ★ 本產品外殼為塑膠製品，避免陽光直射。 ★ 取出水箱時，需輕拿輕放。 ★ 清潔外觀件時，請用柔軟而乾淨的布擦拭（不可使用酒精，汽油及苯等化學溶劑）。 ★ 保持進風框的清潔。取出進風框，用真空吸塵器清掃或用水沖洗後，放於通風處晾乾。 ★ 清洗及其他維護前，請將電源線插頭拔掉。 ★ 移動機體前，請關機並拔下電源線插頭，將水箱水倒掉。 ★ 長期不用時，請將電源線插頭拔掉並將水箱的水全部倒掉放置兩天，待機器內部乾燥 後再包裝，保存於通風，乾燥的環境下，以延長使用壽命。存放時請將機體立放，切 勿橫放和倒放。 ★ 產品維修時，請找服務商及專業人員進行處理，如自行維修導致機體損壞及一切事故， 其責任用戶自負。 ★ 機器維修時換下的廢棄物，請送有廢棄物處理資格的工廠處理。 ★ 當機器使用壽命到期，需作廢處理時，請送環保專業廠家，不得隨意丟棄。...
  • Page 12 Watertank Full Compressor Protection Function Maintenance Main Parameter...

  • Page 13: Important Safeguard

    Important Safe Guard Do not operate the unit before carefully reading this instruction ！ guide. Please keep this manual for product warranty and future reference. 1）Please be sure your electricity is correct. 2）Please do not place the device near window or in bathroom in prevent of electrical shock.
  • Page 14 9）Ensure air intake and air outlet ventilation is not blocked at all times in order to avoid Damaged. 10）Do not spray water on the unit, spraying 11）Never pull the socket by using water may cause malfunctioning and electric damp hands. shock.

  • Page 15: Operation Condition

    Operation Condition 1. Working condition Ambient temperature：5℃-35℃. Ambient temperature: 30%RH–90%RH. 2. This device is only for indoor use e.g.: living room,bedroom, etc. Never use it in wet environment or outdoors. 3. For the best efficiency and energy saving, make sure the door and window are closed before turning on the unit.
  • Page 16 Components Diagrams – Part name Back casing Intake Continuous drain pipe Pull-out hook Window for water level Water tank...

  • Page 17: Operating Introduction

    Operating Introduction Control Panel Functions & Name of Key Pads （On/Off） ：Switch on/off the power. 1、 2、 ( Ion)：Press the button to turn on/off the ionizer function. 3、 ( Speed)：Press the button to set up the air speed. 4、 (Dry clothes)： Press the button to set up dry clothes mode. 5、...
  • Page 18 ： 3、 Speed Press “SPEED” to select the fan working at “High speed” level or “Low speed” level. ： 4、 Dry clothes The machine work under the highest speed, in order to dry clothes faster. The humidity setting is unavailable under this mode. 5、...

  • Page 19: Maintenance

    Continuous Drainage When the machine need continuous drainage, pull out the drain hole plug, use the drainage tube to connect on the hole. When the machine operates, the water will drain out via drainage tube, then water tank will not contain the water, then the machine could continuously work and do not shutdown due to water tank is full.

  • Page 20: Main Parameter

    Main Parameter Model DB25W-H Rated voltage 220V/1Ph/50HZ 24L/D (30℃ 80%RH) Rated dehumidification 14.5L/D(26.7℃ 60%RH) 290W(26.7℃ 60%RH) Rated power 350W(30℃ 80%RH) 410W(35℃ 90%RH) Max power Refrigerant R134a (185 g) Water tank capacity 3.8L Machine dimension 596×346×253 mm Machine weight 14.0kg This marking indicates that this product should not be disposed with other household wastes throughout the EU.
