YSI EXO Quick Start Manual

Sonde Quick Start Guide
Thank you for using an EXO sonde
for your environmental monitoring!
This document will assist with the
initial steps required to use an
EXO™ sonde.
Refer to the EXO User Manual for:
• Part numbers and accessories
• Maintenance guidelines
• Sensor calibration instructions
• Connecting EXO to a Data Logger

Unpacking and Inspection

Inspect the outside of the shipping
container(s) for damage. If you see any
damage, contact the shipping
carrier immediately.
Remove the equipment from the shipping
box. Some parts are loose in the box, so
check the packing material carefully.

Registration

Register your product online to
activate your warranty and keep
informed of software updates:
YSI.com/warranty
Keep your serial number on file:
Date of purchase:
See reverse for
more information.
TM

Items Needed

Included in Packaging
Sonde
•
• Probes (Sensors)
• Batteries
• Battery cover wrench
• Sensor tool with magnet
(to activate Bluetooth)
• KOR™ software on USB flash drive
Not Included
• EXO Handheld or PC running
KOR™ software
• USB cable and adapter, field cable,
or Bluetooth dongle (sold separately)

Preparing Sonde for Use

To prepare the sonde for operation,
you will need to:
• Install probes into the connectors
on the sonde bulkhead
• Install batteries
• Load KOR™ software onto PC
• Connect sonde to EXO Handheld
device or PC

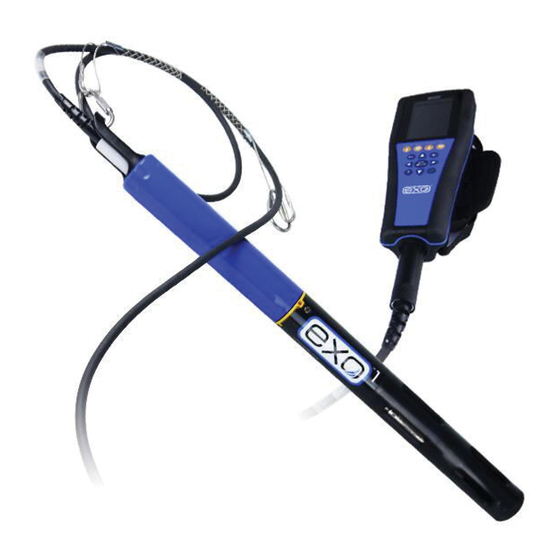

EXO1

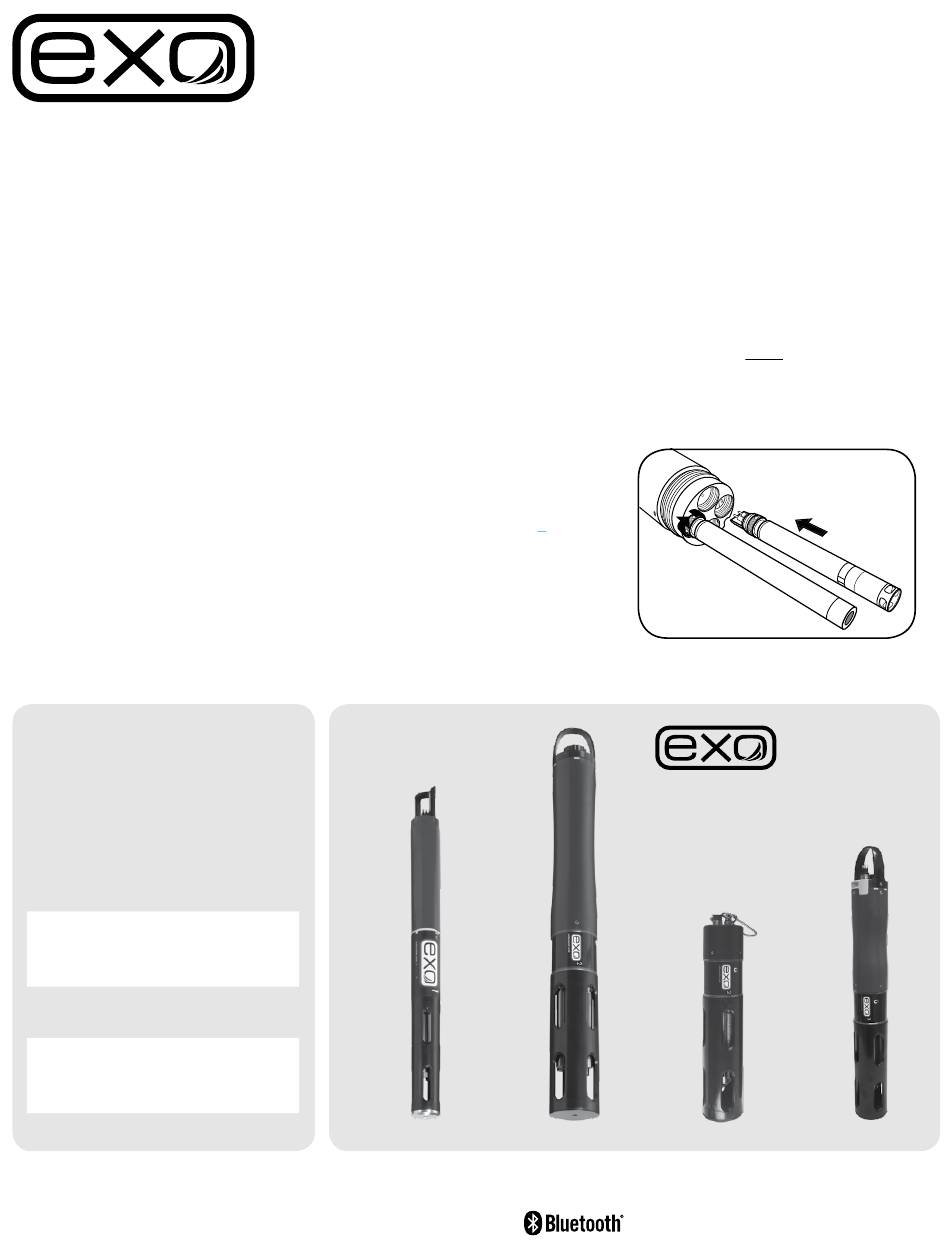

Install Probes

1. Remove buffer bottles and hydration
caps on the sensors (if applicable).
2. Remove the calibration cup and guard
from the sonde.
3. Remove port plugs and insert sensors into
ports on the bulkhead. Finger-tighten
the locking rings until snug. Ports are
"universal," which means any sensor can
be plugged into any port.
Exception – The wiper must be installed in
the correct port to function properly:
• EXO2 / EXO2s – Central Port 7
• EXO3 – Port 5
Install probes into the sonde bulkhead
EXO2
EXO2
The EXO
TM
Sonde Line
s EXO3
item# 603794REF
dwg# A603794
YSI.com
Jan 2017 Rev. C
