- Page 1 INSTRUCTION MANUAL Pneumatic 18 Gauge Brad Nailer Model # PS6130 Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com Toll free: 1-800-791-9458 M-F 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Table Of Contents
13 x 11.4 x 3.1 inches Weight: 3.3 lb. Thank you for purchasing PowerSmart products. Please register online at www. Amerisuninc.com. The information will allow us to track your warranty and update on your unit. Important: Our company does not provide email or personal information to any third party for any reason. -
Page 4: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your brad nailer works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. - Page 5 contact trip is adjusted when the tool is connected to the air supply and nails are loaded, accidental discharge may occur. Connect tool to air supply before loading fasteners, to prevent a fastener from being fired during connection. The tool driving mechanism may cycle when tool is connected to the air supply. Do not load fasteners with trigger or contact trip depressed, to prevent unintentional firing of a fastener.
- Page 6 Refer to the Maintenance and Repairs sections for detailed information on the proper maintenance of the tool. Always operate the tool in a clean, lighted area. Be sure the work surface is clear of any debris and be careful not to lose footing when working in elevated environments such as rooftops. Do not drive fasteners near edge of material.
- Page 7 Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. WARNING: ALWAYS USE SAFETY GLASSES.
-
Page 8: Knowing Your Brad Nailer
KNOWING YOUR BRAD NAILER Contact Trip Exhaust Deflector Magazine Trigger Magazine Latch Jam Clearing Latch 1/4" Air Quick Coupler Unpacking Unpack the brad nailer and all its parts, and compare against the list below. Do not discard the carton or any packaging materials. -
Page 9: Assembly

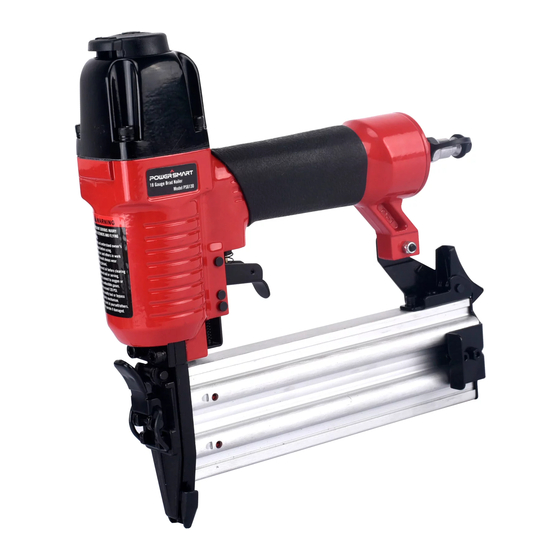

PowerSmart PS6130 Pneumatic Brad nailer drives 18 gauge brad nails from 5/8" to 2" (15 mm to 50 mm) in length. The tool has a die cast aluminum body for strong and light weight design. The tool features a comfortable rubber handle for improved control and comfort even during extended use and a contact safety to prevent accidental firing and an adjustable depth for various applications. - Page 10 To load your nailer: 1. Disconnect nailer from the air supply! 2. Grip the nailer firmly, and depress the magazine latch, as shown picture. 3. Pull the magazine cover back until it stops. 4. Point the nailer down and insert a stick of brad nails into the magazine, as show picture.
- Page 11 Clearing Jammed Nails WARNING: Always disconnect air from nailer whenever clearing a jammed nail! A nailer connected to air may fire accidentally, causing serious personal injury! A jammed nail must be cleared before using the nailer again. To clear a jammed nail from the magazine: 1.
-
Page 12: Maintenance
MAINTENANCE WARNING: Disconnect the tool from the air compressor before adjusting, clearing jams, servicing, Relocating and during non-operation. 1. Regular lubrication of the tool is required. Add 2 to 6 drops of lubricant oil into the air inlet before each work day or after 2 hours of continuous use depending on the characteristic of work piece or type of fasteners. -
Page 13: Troubleshooting
TROUBLE SHOOTING The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. WARNING: If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool. -
Page 14: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST... - Page 15 PS6130-029 O ring 11.2x2 PS6130-063 Rubber Grip PS6130-030 Trigger spring PS6130-064 O ring 36.3x3.55 PS6130-031 Pin PS6130-065 End cap PS6130-032 Trigger PS6130-066 Air inlet plug PS6130-033 Safety plate A PS6130-067 Pin sleeve PS6130-034 Pin 2.5x16 PS6130-068 Air inlet plug cover...
- Page 16 TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE. PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all Power Smart Products, if the tool is used for professional or commercial use.
