SVC-821
Assembly Instruction
The SVC-821 survey cart was specially designed for
the U-Explorer Mini system based on the radar control units
from the Akula 9000 series, as well as ground coupled
antenna from the GCB-series (200MHz-700MHz).
Please follow the instructions below to successfully
assemble and use the survey cart.
Note: The information in this document is based on the latest information at the time of publication. Geoscanners AB® reserves the right to make changes at any time,

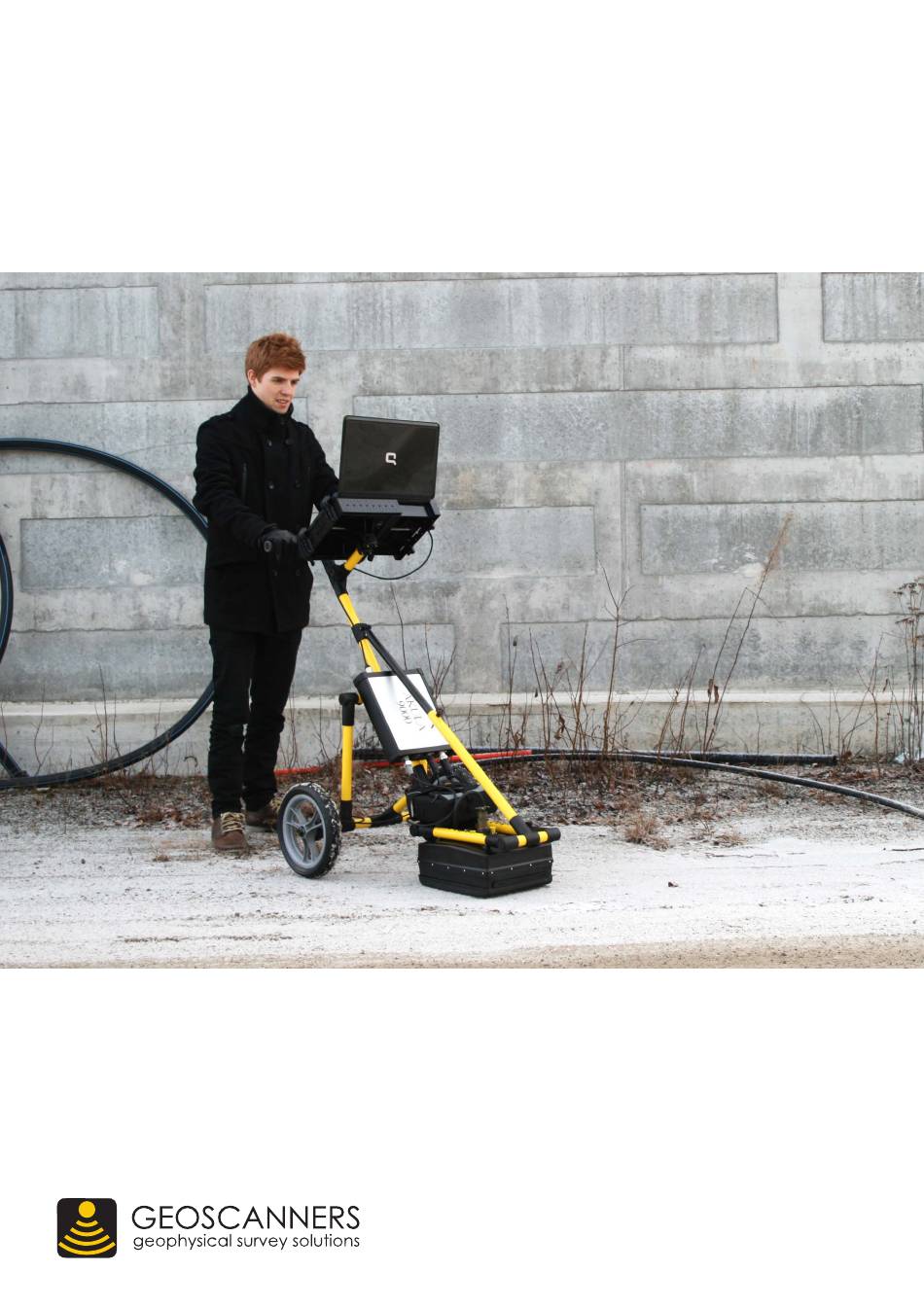

without notice to color, specifications, accessories, materials and models. The system shown in the images is a U-Explorer Mini system equipped with accessories that
are not part of the standard configuration. For more information contact the Geoscanners AB Sales Department +46(0)92153020. ©2015 Geoscanners AB, Sweden.
www.geoscanners.com | info@geoscanners.com
REV:EN301013-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVC-821 and is the answer not in the manual?

Questions and answers

Summary of Contents for Geoscanners AB SVC-821

  • Page 1 Note: The information in this document is based on the latest information at the time of publication. Geoscanners AB® reserves the right to make changes at any time, without notice to color, specifications, accessories, materials and models. The system shown in the images is a U-Explorer Mini system equipped with accessories that are not part of the standard configuration.
  • Page 2 (1) using the quick release bolt axes. Pay attention that the wheel with the magnet ring (9) is placed on the same side as the encoder. 2. Insert the back frame (2) into the back axis (1) connectors. Copyright 2006-2015 © Geoscanners AB...
  • Page 3 5. Secure the connection with one of the quick release pins (7). 6. Insert the handle (4) through the back frame (2) into the main frame (5). Secure the connection with one of the quick release pins (7). Copyright 2006-2015 © Geoscanners AB...
  • Page 4 8. Use a quick release pin (7) to fit one of the two available holes on the angle adjuster (4) to set the prefered angle of the main frame (5) to the antenna. Copyright 2006-2015 © Geoscanners AB...
  • Page 5 USB cable and the encoder need to be conected to complete the radar configuration. Connect the survey wheel cable to the encoder on the back axis, then connect the other end to the GPR control unit Akula 9000. Copyright 2006-2015 © Geoscanners AB...
  • Page 6 It is worth mentioning that this kind of failure is not covered by the warranty. So, please make absolutely sure the radar is OFF before you proceed to connect the control cable to it. Copyright 2006-2015 © Geoscanners AB...
