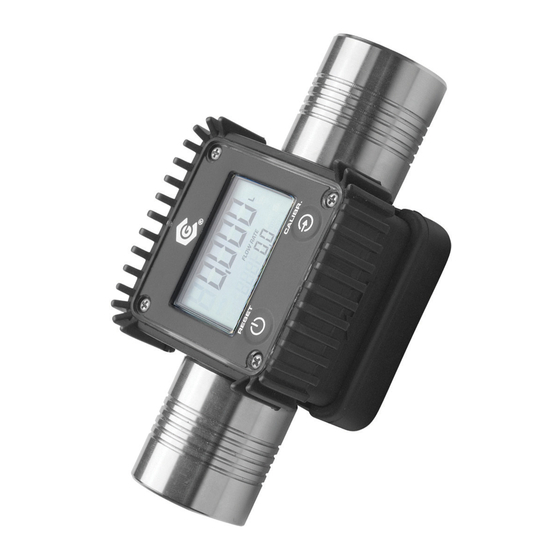

DIGITAL METER FOR AdBlue®
PART NO 1169096 / ART.NR. 1169096
TECHNICAL DATA / TEKNISKA DATA
PART NO / ART.NR / ART.-NR.
Meter mechanism / typ av mätverk
Flow range / flödeshastighet
Resolution (nominal) high flow / low flow / upplösning (nominellt)
högt / lågt flöde
Max operating pressure / max arbetstryck
Bursting pressure (min) / sprängtryck (min)
Operating temperature / användningstemperatur
Accuracy / noggrannhet
Reproducibility (typical) / reproducerbarhet (typ)
Power supply / strömförsörjning
Battery life / batteritid
Weight / vikt
Protection / klassning
GETTING STARTED / DRIFTSÄTTNING
1
2
3
GENERAL
Digital turbine volume meter, designed for precise measuring of low viscosity fluids. Maximum working pressure 10 bar.
Please refer to the sales Catalogue for details on accessories. Or visit our website: www. eurolube.com
WARNING!
Never point a control valve at any portion of your body or another person. Accidential discharge of pres-
sure and/or material can result in injury. Read these instruction carefully before installation, operation or service.
DO NOT EXCEED MAXIUMUM PRESSURE
ALLMÄNT
Digitalt turbinmätverk, utvecklad för noggrann mätning av lågviskösa vätskor. Maximalt arbetstryck 10 bar. För detaljerad
information, hänvisar vi till vår kompletta produktkatalog, eller vår hemsida: www. eurolube.com
VARNING!
Rikta aldrig utloppsmunstycke mot någon kroppsdel eller någon annan person. Vätska kan lätt tränga in
igenom hud och förorsaka skador. Läs dessa intruktioner innan installation, användning eller vid service.
ÖVERSKRID EJ MAX ARBETSTRYCK
1169096
Turbine
5 – 120 l/min
0.010 lit/pulse / 0.005 lit/pulse
10 Bar
40 Bar
-10° – +50° (C)
± 1% after calibration within / efter kalibrering inom
10÷90 (l/min) range / spann
±0,3%
2 x AAA alkaline batteries /
2st AAA alkaliska batterier
18 ÷ 36 months / månader
0,25kg (incl batteries)
IP65
The meter can be connected to a control gun or
installed directly in the distribution line pipe.
It is recommendable to install a cut-off valve
before the meter to facilitate its maintenance
or repair.
The meter has a 1"BSP connection at the inlet
4
and outlet. The supplied 1"BSP F-F bushing
enables several combinations of threads. The
meter requires two 1.5 V batteries and size
AAA as the power supply source. See "battery"
section.

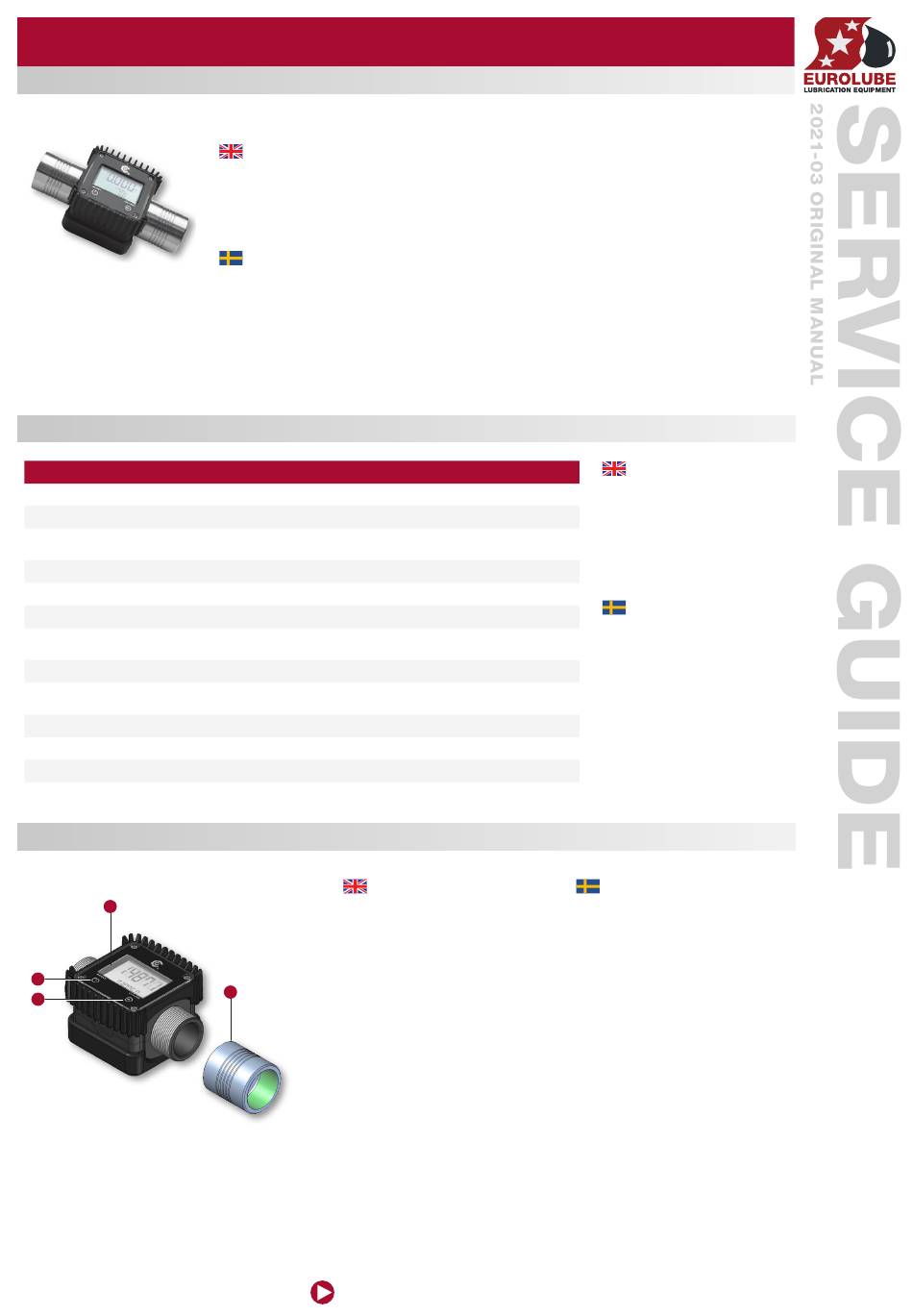

Description
1. LCD Display
2. RESET Button
3. CAL Button
4. 1" F-F Bushing
NOTE! In order to improve the life of the
turbine, we recommend a strainer is fitted
before the meter.
www.eurolube.com
Low visosity fluids that can be
used with this meter
• Water
• Aus32 (DEF, AdBlue®)
• Milk not suitable for human
consumption
• Diesel
• Kerosene
• Windscreen fluid
• Gasoline
Exempel på lågviskösa vätskor
som kan användas med mätverket
• Vatten
• Aus32 (DEF, AdBlue®)
• Mjölk ej för mänsklig förtäring
• Diesel
• Fotogen
• Spolarvätska
• Bensin
Mätaren kan installeras direkt på en
utloppsventil eller i ett rörsystem.
Vi rekommenderar att en avstängningsventil
monteras före mätaren för att underlätta
underhåll och service.
Mätaren har en 1" BSP anslutning vid
in- och utloppet. Den medföljande 1" BSP
dubbeladaptern möjliggör många typer av
anslutning. Mätaren använder två stycken
AAA-batterier som strömkälla. Se sektion
"batterier".
Beskrivning
1. Display
2. RESET-knapp
3. CAL-knapp
4. 1" BSP Adapter
OBS! För att förlänga livslängden på mätaren
rekommenderar vi att man installerar ett filter
före mätaren.
1417204
1
