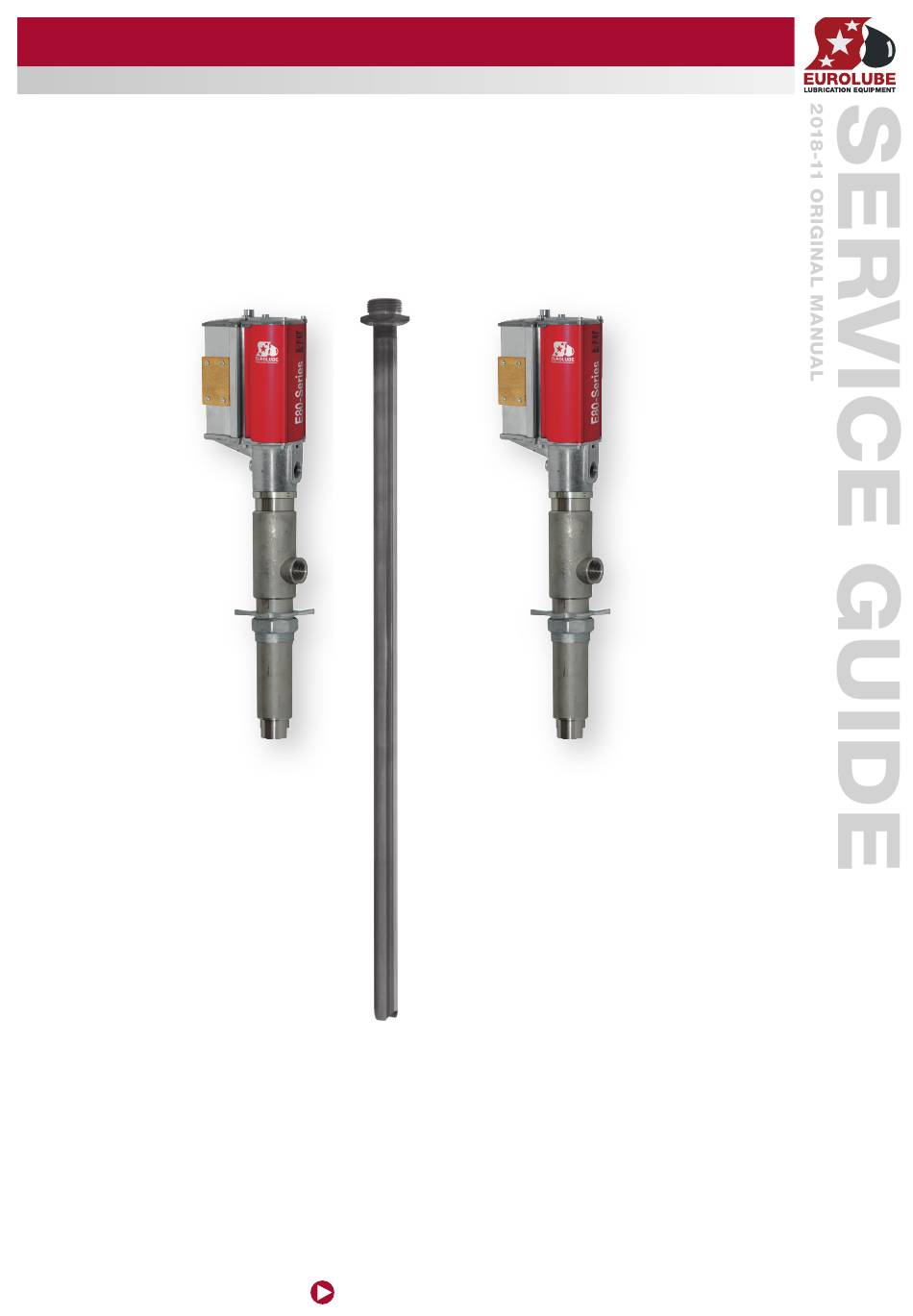

- Page 1 AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 www.eurolube.com 205167 EUROLUBE EQUIPMENT...
-
Page 2: Safety Precautions
AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D Technical data Tekniska data Pressure ratio Tryckförhållande Total length 585mm/ 23” Totallängd 585mm Pump tube length 220mm/ 8.6” Pumprörslängd 220mm Pump tube diameter Ø 54 mm/ 2.1”... -
Page 3: Fixed Installations
AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D (EN) Installation 2.1. Mobile units Remove the protective packing from the pump, including plugs from the air inlet and the fluid outlet. Remove the drum adapter from the pump tube. Mount the adapter into the 2” hole in the pump or pump bracket. If the pump is to be used with a drum of similar the suction tube, 122 62 94, has to be fitted. -
Page 4: Troubleshooting
AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D 4.2. Exchange of packings in outlet body Fasten he lower part of the air motor into a vice with pump tube in horizontal position. Loosen the four lower screws (Pos 29) and pull off the air motor with the complete valve mechanism. -
Page 5: Installation
AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D 5.4. Pump is running despite the outlet being closed. Packing on the lower piston assembly is worn out or damaged. Dirt in the bottom valve or in the lower piston assembly. -
Page 6: Byte Av Manschettpackning Mellan Luftmotor Och Pumprör
AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D 7.2. Stationära anläggningar Utöver det föregående gäller även följande: Montera aldrig en pump direkt på en plåtvägg eller annan liknande konstruktion som kan ge resonansljud och förstärka pumpens normala ljudnivå. - Page 7 AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D 9.3. Vätskekolv och bottenventil Utför först de två första punkterna under ”Byte av manschettpackning mellan luftmotor och pumprör”. Fäst pumpens utloppshus i ett skruvstycke. Gänga bort pumpröret (Pos 20). Drag ned kolvstången genom teflonpackningssatsen (Pos 12).
- Page 8 AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D (EN) Spare part kits/ (SE) Reservdelssatser Part Nr. Consist of: Består av: Pos. Quantity/ Antal 142 61 76 Packing kit air motor Packningssats luftmotor O-ring O-ring U-packing...
- Page 9 AiR OPeRATed sTAiNless sTeel PumP PART NO 12740-41/12745-46 / ART.NR. 12740-41/12745-46 Manual 22770_EN_SE_1D 10(11) www.eurolube.com 205167 EUROLUBE EQUIPMENT...
- Page 10 Alentec & Orion AB, Grustagsvägen 4, 138 40 Älta Sweden, declares hereby that the products: Alentec & Orion AB, Grustagsvägen 4, 138 40 Älta, deklarerar härmed att produkterna: 12740-41/12745-46 are in conformity with the requirements of the Council´s Machinery Direc- 12740-41/12745-46 är tillverkade i överensstämmelse med bestämmelserna i Maskindirektivet tive 2006/42/EC.
