Item #0000 000 000
Model #FTS70660AH

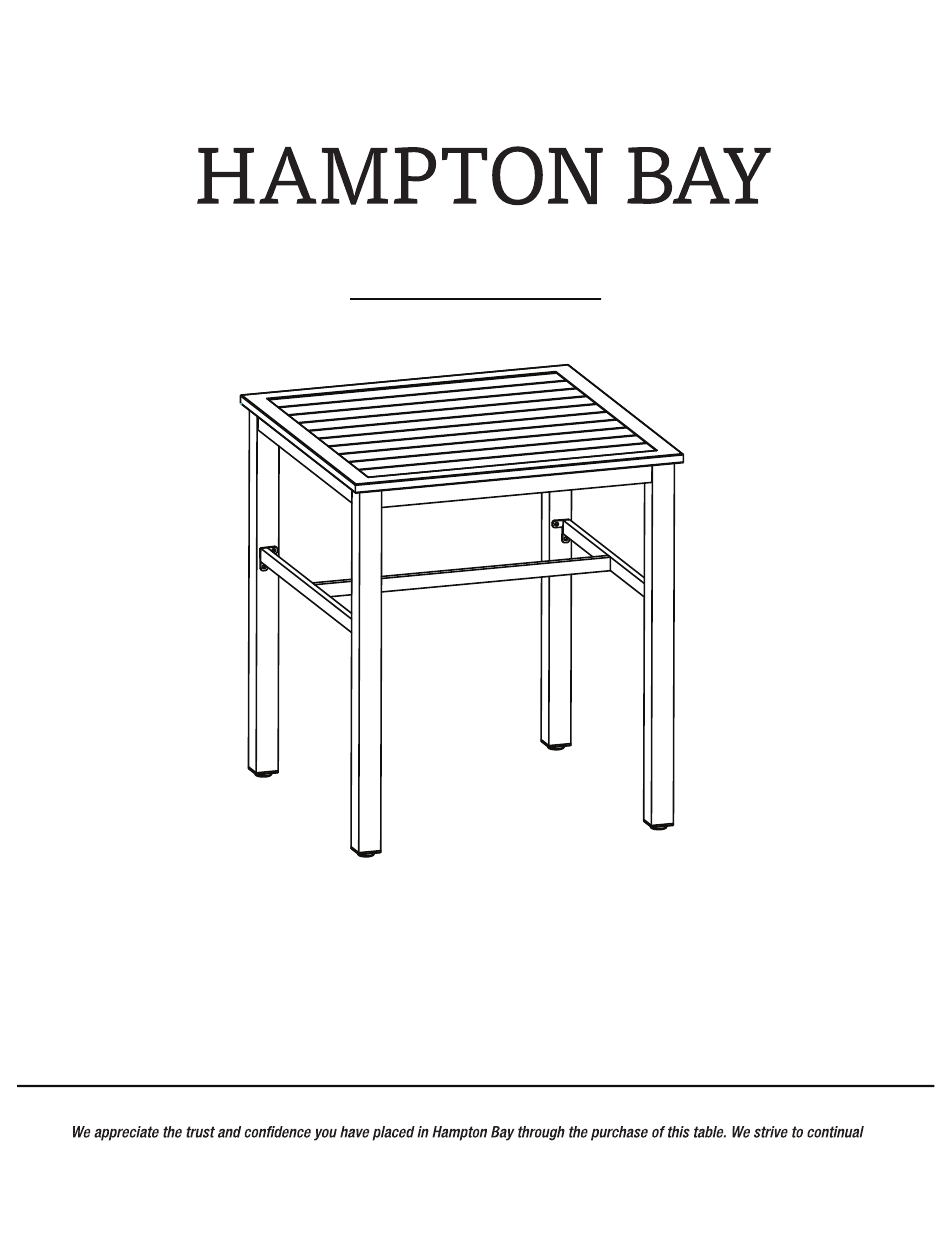

USE AND CARE GUIDE

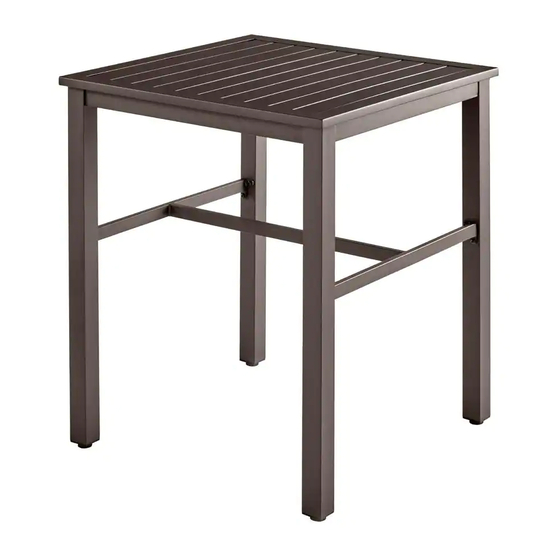

METAL SLAT BALCONY HEIGHT DINING TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
ly
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FTS70660AH
Summary of Contents for HAMPTON BAY FTS70660AH
- Page 1 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA THANK YOU create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of contents ..............2 Pre-assembly ................3 Planning assembly ..............3 Important Safety Instructions ........2 Hardware included ..............3 Save These Instructions ............2 Package contents ..............4 Read All Instructions Before Use ..........2 Assembly ..................5 Warranty ................ .3 Care and Cleaning ..............8 What is Covered .............. -
Page 3: Warranty
Warranty 2 YEAR FRAME WAR RANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for two years. WHAT IS NOT COVERED It remains the customer’s responsibility fo r freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Quantity Part Description Table top Table leg 1 Table leg 2 Leg connector... -
Page 5: Assembly
Assembly CONNECTING THE TABLE LEGS 1 Place the table top (A) upside down on a soft surface. Attach the table legs 1 (B) to the table top (A) using M8x50 combination hex bolts (AA), as shown below. Do not fully tighten the bolts at this step. NOTE : Loosely tighten the bolts using the wrench (DD). - Page 6 Assembly (continued) CONNECTING THE TABLE LEGS 2 Attach the table legs 2 (C) to the table top (A) using M8x50 combination hex bolts (AA), as shown below. Do not fully tighten the bolts at this step. NOTE : Loosely tighten the bolts using the wrench (DD).
- Page 7 Assembly (continued) CONNECTING THE LEG CONNECTOR TO THE TABLE LEGS Attach the leg connector (D) to the table legs 1 & 2 (B & C) using M6x15 combination bolts (BB). Do not fully tighten the bolts at this step. NOTE : Loosely tighten the bolts using the hex wrench (CC). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 8: Care And Cleaning
Assembly (continued) CHECKING THE TABLE Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC) and the wrench (DD). Turn the table right side up. Ensure that all connections are secure before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. - Page 9 1-855-HD-HAMPTON HOMEDEPOT.CA For certi cation use only Factory ID # FTS70660AH...
