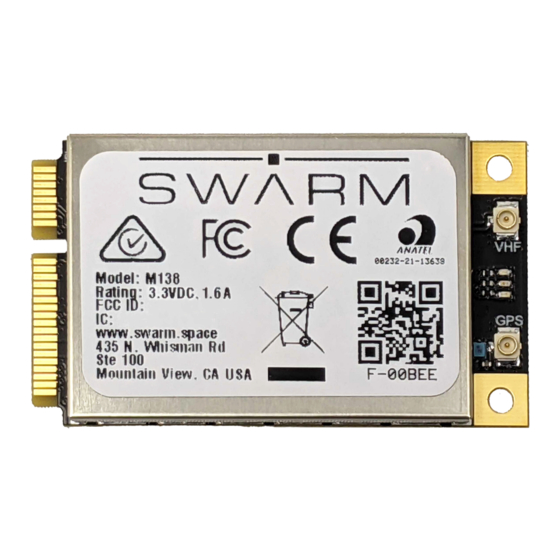

Swarm M138 Modem
Product Manual
Swarm M138 Modem Product Manual
Revision 1.00
November 2021
© 2021 Swarm Technologies, Inc.
