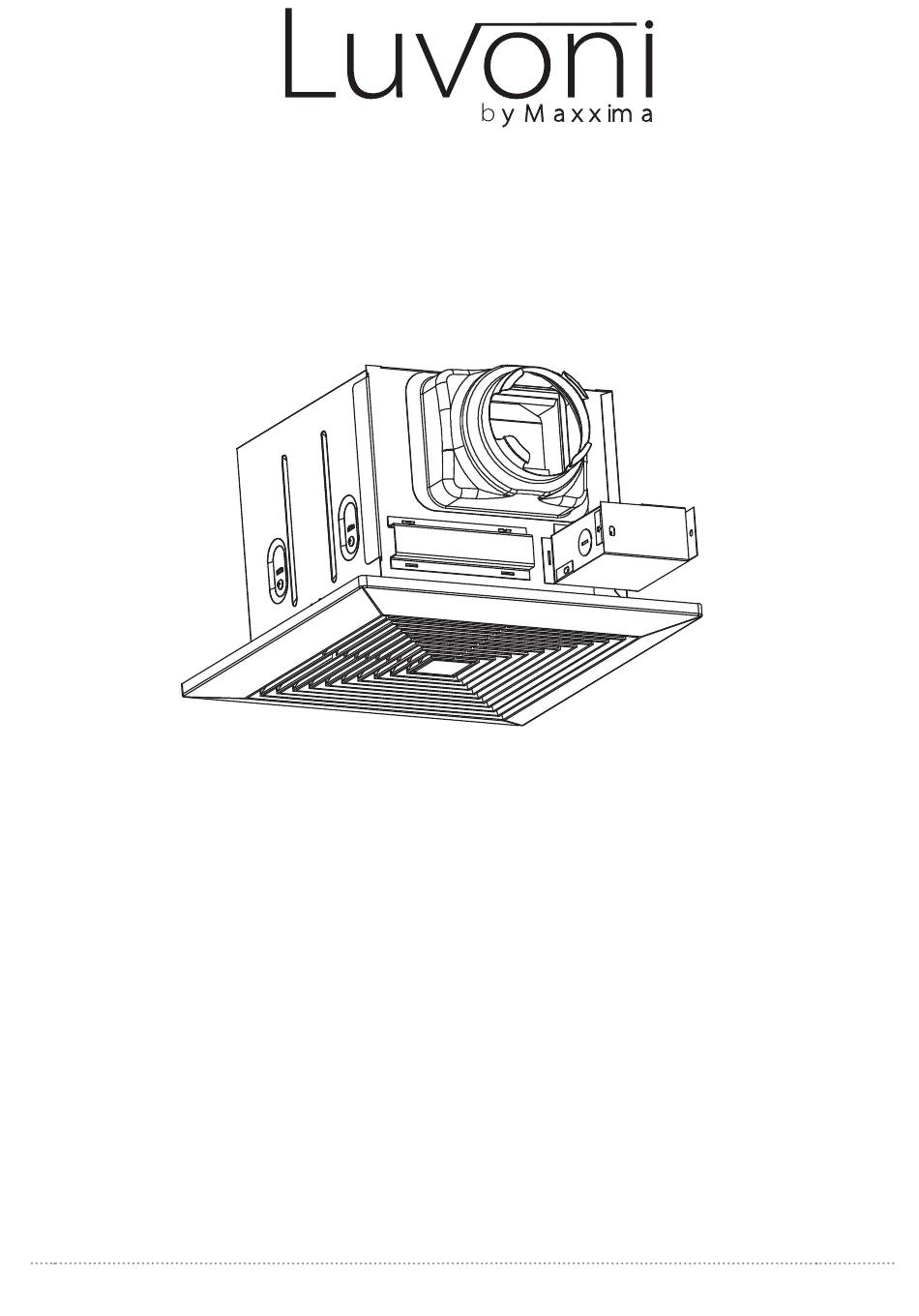

INSTALLATION AND CARE GUIDE
Ventilation Fan with LED Light
MEW-VF170 & MEW-VF190
1
Advertisement
Table of Contents
Related Manuals for Maxxima Luvoni MEW-VF170
Summary of Contents for Maxxima Luvoni MEW-VF170
-
Page 1: Table Of Contents
INSTALLATION AND CARE GUIDE Ventilation Fan with LED Light MEW-VF170 & MEW-VF190 READ AND SAVE THESE INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS Please read these instructions carefully before installing, operating or servicing the fan. Failure to comply with the instructions contained herein could result in personal injury or property damage. -
Page 2: General Information And Parts
General information Please read the entire instruction guide prior to installing this fan. Parts supplied APPEARANCE PART NAME QUANTITY Grille Long wood screws Short screws Suspension brackets I Suspension brackets II... -
Page 3: Description, Sizes And Wiring Diagram
Description This product is designed with a built-in thermal cut-off for safety and long life of the motor. Sizes ” (31 cm) 9 ” (23 cm) 9 ” (23 cm) ” (32.07 cm) ” (32.07 cm) Wiring diagram 120 V AC 60 Hz Automatic terminal switch Black wire to switch... -
Page 4: Speci Fications And Dimensions
Specifications Model DUCT NOISE POWER SPEED AIR DELIVER AT DIAMETER (SONE) (RPM) 0.1” WG (CFM) MEW-VF170 4” 19 W 1000 70 CFM (10.16 cm) MEW-VF190 4” 24 W 1000 90 CFM (10.16 cm) Dimensions CEILING CEILING CEILING HOUSING HOUSING HOUSING OPENING L OPENING W OPENING D... -
Page 5: General Safety Information And Warnings
General safety information and warnings 1. Electric service supply must be 120 V 60 Hz 2. Follow all local safety and electrical codes as well as Canadian Electrical Code and CSST. 3. This unit must be properly grounded. 4. Always disconnect the power supply prior to servicing the fan, motor or junction box. 5. -
Page 6: Installation I (New Construction)
Installation I (new construction) For ideal ventilation use, hold the body of the fan with the exhaust side facing the desired duct direction. If the brackets are too short to reach the joist, use the extensions provided (Fig. E). Fig. A Fig. -
Page 7: Installation Ii (Remodeling)
7. Electrical installation: Wires from the power supply to the unit should not be smaller than size 14 AWG. The ground wire must be connected to the green wire in junction box, the neutral wire to the white wire and the hot wire to the black wire. 8. -
Page 8: Maintenance And Limited Warranty
Maxxima product. This offer does not constitute in any way a product guarantee and Maxxima does not hereby assume any obligation whatsoever beyond sending a free replacement product.
