TR2650A
OWNER'S MANUAL
TERMS OF USE
INSTALLER TERMS OF USE
Automotive Data Solutions Inc. ("ADS") products are strictly intended for installation by Certified Technicians
who are employed by a registered business specialized in the installation of automotive aftermarket electronics
products. Prior to beginning installation of an ADS product in a vehicle, it is the Certified Technician's
responsibility to review the most current Product Guide, Install Guide and vehicle-specific notes available in
Weblink®. ADS is not responsible for any damages whatsoever, including but not limited to any consequential
damages, incidental damages, damages for loss of time, loss of earnings, loss of profit, commercial loss, loss of
economic opportunity and the like that may or may not have resulted from the use, misuse, improper
installation or operation of its products. Purchasers sole contractual remedy is refund of the purchase price of
the ADS product(s). ADS reserves itself the right to suspend any Weblink® account without notice and decline
to offer technical support to non-Certified Technicians, non-compliant Certified Technicians or end users.
END USER TERMS OF USE
ADS products are designed to remote start vehicles from a distance. In order to ensure your iDatastart system
meets all safety regulations and operates as intended by the manufacturer, please follow the usage
recommendations below:
• DO NOT use this product for any purpose other than its intended usage.
• DO NOT remote start a vehicle in an indoor or enclosed area (i.e. garage). Exhaust fumes are extremely
dangerous and can cause personal injury or death. Install carbon monoxide detectors in every living area that
can be exposed to vehicle exhaust fumes.
• DO NOT remote start a vehicle while it is being serviced. Follow the Valet Mode procedure as outlined in your
Owner's Manual.
• DO NOT remote start a vehicle in gear.
• DO NOT remote start a vehicle with the key in the ignition.
• DO NOT remote start a vehicle left unattended with open windows, unlocked doors or open convertible top.
• DO NOT allow children handle or operate long range remotes.
• ALWAYS engage your emergency brake prior to exiting your vehicle. This may limit motion if the vehicle is
accidentally started in gear.
• AVOID remote starting your vehicle while passengers or pets are on board. This may increase the risk of
2022-02-7 © Automotive Data Solutions Inc. 1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR2650A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Automotive Data Solutions TR2650A

  • Page 1 TERMS OF USE INSTALLER TERMS OF USE Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by Certified Technicians who are employed by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning installation of an ADS product in a vehicle, it is the Certified Technician’s responsibility to review the most current Product Guide, Install Guide and vehicle-specific notes available in...
  • Page 2: Remote Overview

    LORA 2-WAY Max. Range 1 mile Buttons Transmit Confirmation (TX) Chime Receive Confirmation (RX) LCD icon + Chime + Vibration Batteries Required 1 x CR2450 Avg. Battery Life 8-15 months Warranty 1 year 2022-02-7 © Automotive Data Solutions Inc. 2/21...

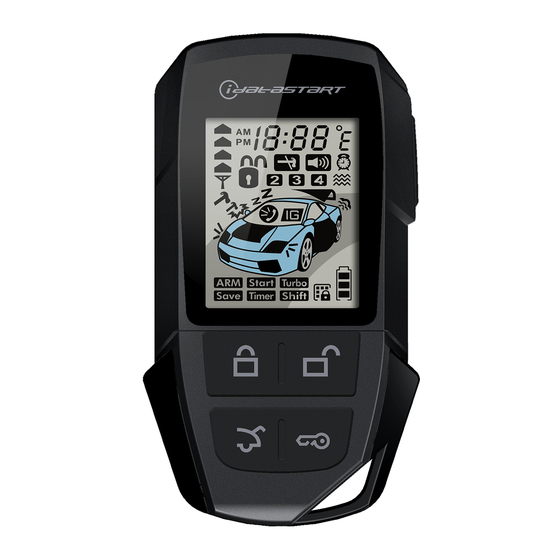

  • Page 3 TR2650A Your iDatastart TR2650A LCD remote can display several icons following a command (button press) or command notification. Please take a moment to familiarize yourself with their descriptions below: 2022-02-7 © Automotive Data Solutions Inc. 3/21...
  • Page 4 In order to get the most out of your iDatastart remote, please take a moment to get acquainted with the following commands and confirmations below: NOTES: 1. All functions must be enabled by an Authorized Dealer during installation to be functional on remote 2022-02-7 © Automotive Data Solutions Inc. 4/21...
  • Page 5 DESCRIPTION the alarm. CONFIRMATION • 1 chirp, display UNLOCK AND DISARM* COMMAND Unlock & Disarm BUTTON DESCRIPTION Accesses your vehicle by unlocking the doors and disarming the alarm. CONFIRMATION • 2 chirps, display 2022-02-7 © Automotive Data Solutions Inc. 5/21...
  • Page 6 AUX 5* BUTTON DESCRIPTION To be completed by Authorized Dealer if applicable CONFIRMATION • 1 chirp, display TRUNK RELEASE COMMAND Trunk Release* BUTTON DESCRIPTION Releases the trunk or hatch. CONFIRMATION • 1 chirp, display 2022-02-7 © Automotive Data Solutions Inc. 6/21...
  • Page 7 To be completed by Authorized Dealer if applicable CONFIRMATION • 1 chirp, display AUX 3 COMMAND AUX 3 BUTTON DESCRIPTION To be completed by Authorized Dealer if applicable CONFIRMATION • 1 chirp, display AUX 4 2022-02-7 © Automotive Data Solutions Inc. 7/21...
  • Page 8 Disables the vehicle’s horn and alarm siren. CONFIRMATION • 1 chirp, display SILENT UNLOCK* COMMAND Silent Unlock* BUTTON DESCRIPTION Disables the vehicle’s horn and alarm siren. CONFIRMATION • 2 chirps, display VALET MODE ON/OFF 2022-02-7 © Automotive Data Solutions Inc. 8/21...
  • Page 9 IGNITION LOCK ON/OFF COMMAND Ignition Lock ON/OFF BUTTON DESCRIPTION Automatically locks doors when engine is running. • ON: 1 chirp, display for 3 seconds. CONFIRMATION • OFF: 2 chirps, display for 3 seconds. 2022-02-7 © Automotive Data Solutions Inc. 9/21...
  • Page 10 Sets your vehicle to automatically remote start every DESCRIPTION 2, 3 or 4 hours (programmable) or from a temperature sensor sold separately. • ON: 1 chirp, display CONFIRMATION • OFF: 2 chirps, disappears. QUERY REMOTE TECHNOLOGY 2022-02-7 © Automotive Data Solutions Inc. 10/21...
  • Page 11 • On button press: 6 chirps + 6 times and remote LCD backlight flashes. UNLOCK REMOTE ON/OFF COMMAND Unlock Remote ON/OFF BUTTON DESCRIPTION Enables all functions on your remote. CONFIRMATION • ON: 2 chirps + LCD backlight flash 2 times. NO BEEP ON TAKEOVER 2022-02-7 © Automotive Data Solutions Inc. 11/21...
  • Page 12 2. Set the clock’s minutes 3. Set the timer/alarm based on the clock OPTIONS 4. Set the backlight to ON/OFF 5. Set the vibration to ON/OFF 6. Set the chirp to ON/OFF 7. Exit the remote settings 2022-02-7 © Automotive Data Solutions Inc. 12/21...
  • Page 13: Alarm Notifications

    Are you replacing a lost or damaged remote or simply adding an extra remote to your iDatastart system? Please take note of the following: 1. A functional iDatastart system must already be installed in your vehicle. 2022-02-7 © Automotive Data Solutions Inc. 13/21...
  • Page 14: Replacing Remote Batteries

    REMOTE STARTING FROM FACTORY KEY FOB Your iDatastart system may enable remote engine start by performing one of the following button sequences on your factory key fob: BUTTON FUNCTION Start engine Press on Stop engine Press on 2022-02-7 © Automotive Data Solutions Inc. 14/21...
  • Page 15: Adjusting Engine Runtime Settings

    NOTE: This feature may not be supported on some vehicles. If available, the programmed ‘key takeover’ delay time will be communicated to you by your iDatastart Authorized Dealer at the time of installation. 2022-02-7 © Automotive Data Solutions Inc. 15/21...
  • Page 16: Remote Start Troubleshooting

    Valet Mode OFF REMOTE START TROUBLESHOOTING If your iDatastart remote fails to start the vehicle, the parking lights will flash three times immediately, then flash a number of times according to the errors below: 2022-02-7 © Automotive Data Solutions Inc. 16/21...
  • Page 17: Vehicle Shutdown Troubleshooting

    If the remote start sequence has been completed and the vehicle shuts down, the vehicle’s parking lights will flash 4 times immediately, then flash a number of times according to the errors below: 2022-02-7 © Automotive Data Solutions Inc. 17/21...
  • Page 18: Limited Lifetime Warranty

    Module overheat protection Contact Authorized Dealer LIMITED LIFETIME WARRANTY Automotive Data Solutions Inc. (“ADS”) warrants to the original purchaser of the iDatastart product that the following components product shall be free of defects in material and workmanship under normal use and circumstances: Control module and installation harnesses For as long as the original purchaser owns the vehicle in which it was originally installed.
  • Page 19: Fcc Statement

    • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. IC STATEMENT 2022-02-7 © Automotive Data Solutions Inc. 19/21...
  • Page 20: Sar Information Statement

    The FCC has granted an Equipment Authorization for this model REMOTE CAR STARTER (TWO WAY) with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model REMOTE CAR 2022-02-7 © Automotive Data Solutions Inc. 20/21...
  • Page 21 This device complies with FCC and ISED 10-g extremity SAR requirements when the device is used at 0 mm separation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2022-02-7 © Automotive Data Solutions Inc. 21/21...
