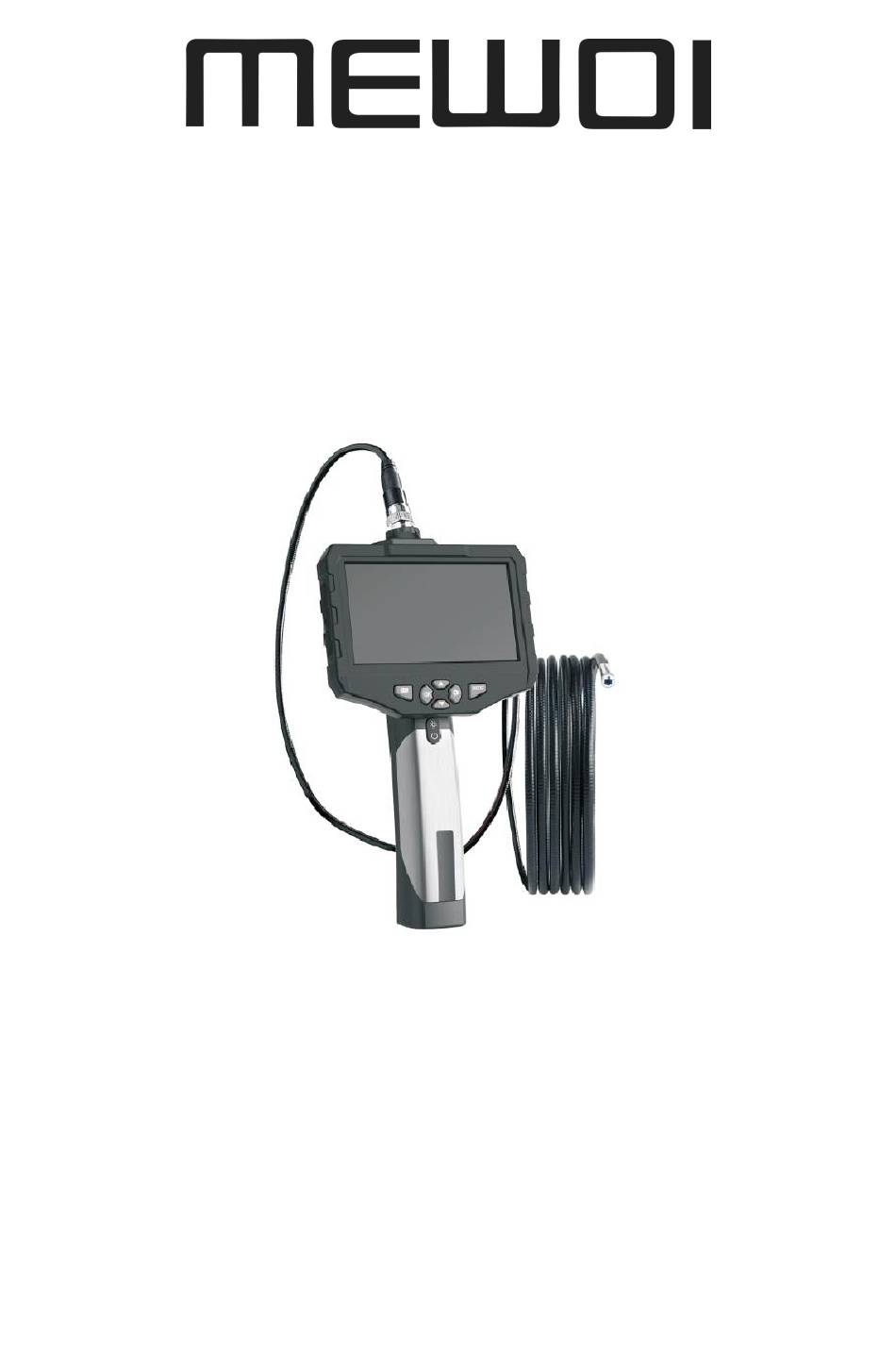

- Page 1 Industrial Digital Endoscope MEWOI-PTS400 User Manual www.mewoi.com...
-
Page 3: Table Of Contents
CONTENT Product Overview ..............1 Applications ................1 III. Main Features ................1 Safety ..................2 Battery ..................2 Maintenance ................2 VII. Notice ..................3 VIII. Instructions for Use ..............5 Technical Specification .............. 8 IX. Accessories ..................9... -
Page 4: Product Overview

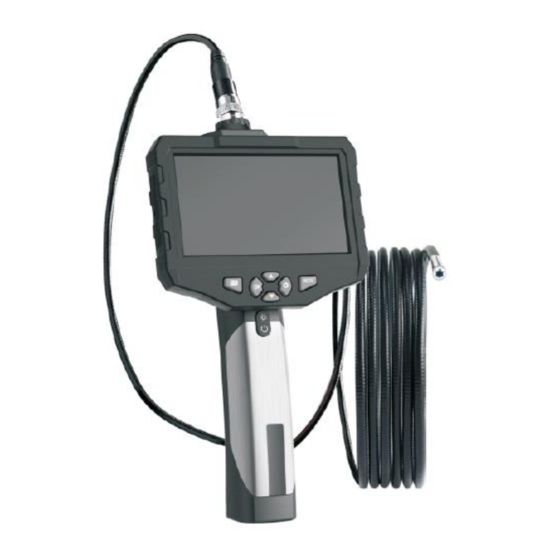

Product Overview MEWOI-PTS400 Digital Video Recording Endoscope is a portable, hand-held, multifunctional inspection system featuring a 4.3 inch full color LCD screen with powerful recording capability; users can capture images (JPG) or videos (AVI) on the TF card with 720P HD resolution. -
Page 5: Safety
IV. Safety Warning!!! , Please read all safety warnings and all instructions before using this product. 1, Keep the tool dry, clean, free from oil, water, gas or other materials causing corrosion. 2, Keep work area clean and well lit. 3, This appliance is not intended for use by persons with limited physical, sensory or mental capabilities. -
Page 6: Notice
3, Please check the battery level if you cannot power on the device or there is noisy image on the screen. MEWOI-PTS400 comes with a TF Card and it is already within the device, you can press it to eject the TF card and use a card reader to see or copy the photos and videos taken by the endoscope. - Page 7 Insert card: Power off the device, open the cover on the backside of the monitor and insert the TF card according to this chart. Warning!!!, Please make sure the device is powered off before operating the TF Card. 1, Please make sure the card is insert correctly 2, This device requires Class 10 high speed TF card and it will not be able to work properly with Class 4 low speed card.
-
Page 8: Instructions For Use
VIII. Instructions for Use... - Page 9 Click“M”button to switch the Click button in Photo/Video mode Photo/Video/Playback. mode to take photos or record movie clips. Press“OK”button to freeze the screen and“▼” button to rotate screen. Click to enter settings Click to enter settings in playback mode to see the in photo and video mode to property information of the change the system settings.
- Page 10 Please press the Reset button on the back of the device if the screen freezes or the buttons does not respond.
-
Page 11: Technical Specification
IX. Technical Specification Monitor: Screen Type: 4.3 inch Color LCD Resolution 480*272 pixels Rotation 180° rotation Video Recording 1280*720 Resolution Image Capturing 1280*720, 1920*1080 Resolution English,Chinese,Japanese,Polski,Nederlands,T Languages urkiyeKorea,France,Deutsch,Cestina,Portugue s,Espanol,Italia Ports Micro-USB, TF Card Slot Camera: Diameter 5.5mm or (3.9mm,7.6mm Optional) Probe Length 1M,3M,5M Optional Resolution... -
Page 12: Accessories
IX. Accessories Digital Endoscope User Manual Probe Accessories Pick up hock,magnet,mirror Micro-USB Cable 1pc,3.9mm no Accessories... - Page 13 esting pecialist...
