1. Summary
The Digital Insulation Resistance Tester series have high performance, and safe
configuration and improved electro circuit. It is one new item which has more fully function,
higher precision, and easier operation. It's also one quakeproof, dustproof and damp-proof
tester and can fit work environment of outdoor.
The
output
100V/250V/500V/1000V/2500V/5000V for different item no. The resistance can reach
200GΩ; the tester also can measure alternating voltage.
This Tester apply for all kinds or electric equipment and insulation materials such as
transformer, electromotor, cable, switch, appliance, etc.
It is a perfect electrical testing meter.
2. Safety Notice
(1) Read this Operation Manual carefully before use it.
(2) This meter is designed in accordance with IEC publication 1010, pollution degree II and
installation category (over voltage category) II.
(3) Should not use it before close the back lid cause of the danger of electroshock.

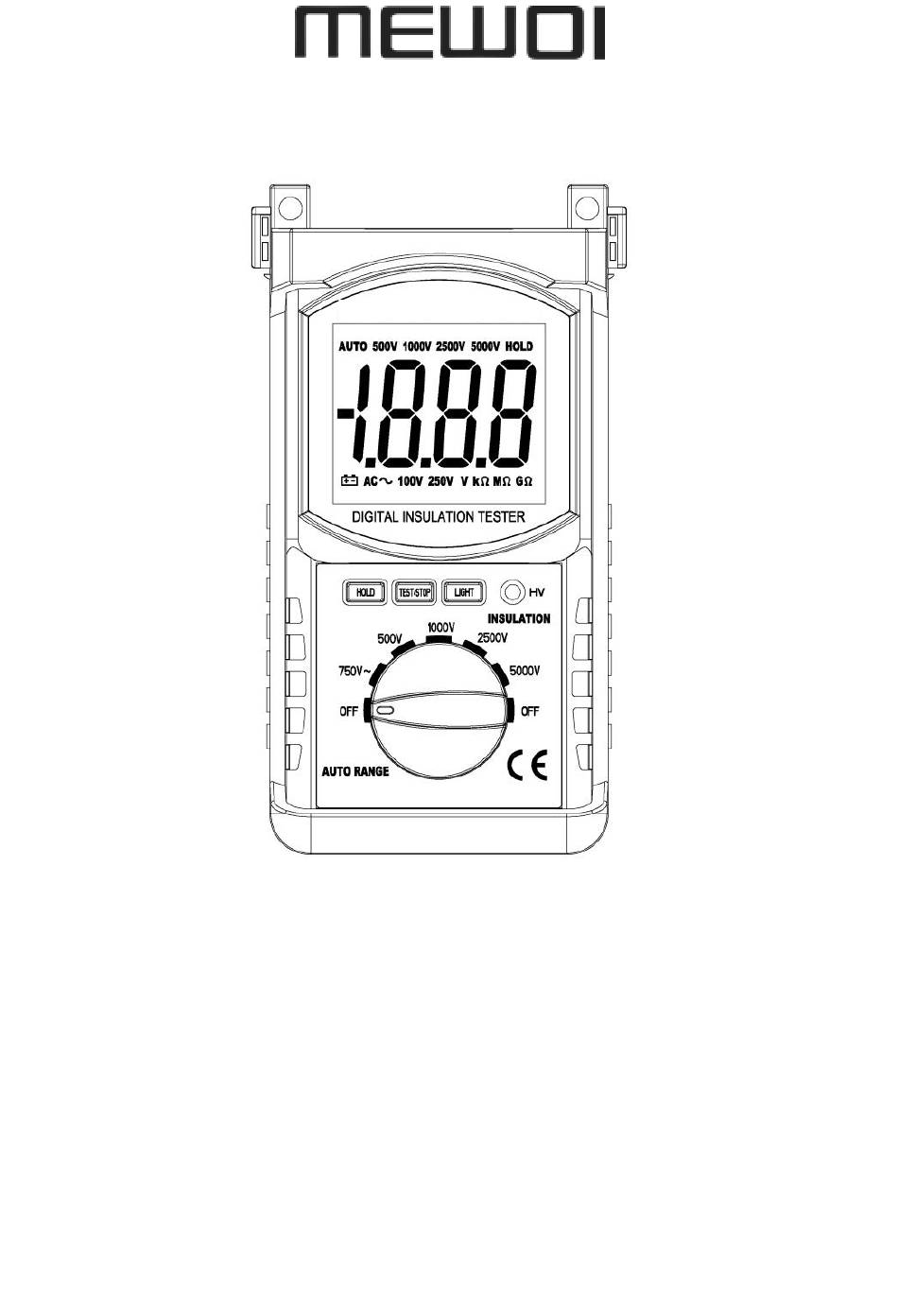

Digital Insulation
Resistance Tester
USER MANUAL
testing
voltage
can
be
changed
between
Advertisement
Table of Contents
Related Manuals for MEWOI MEWOI68C
Summary of Contents for MEWOI MEWOI68C
- Page 1 Digital Insulation Resistance Tester USER MANUAL 1. Summary The Digital Insulation Resistance Tester series have high performance, and safe configuration and improved electro circuit. It is one new item which has more fully function, higher precision, and easier operation. It’s also one quakeproof, dustproof and damp-proof tester and can fit work environment of outdoor.
- Page 2 (12) Perfect circuit protect, preventing damage by voltage shock effectively. (13) Size of LCD: 68×55mm (Height of character is 35mm) (14) Power: six battery 5# which is 1.5V (R6AA SUM-3) (MEWOI68C, D, G) (15) Size of shape: 218×122×75mm. (16) Weight: 900g (contain battery).
- Page 3 Model MEWOI68C MEWOI68G MEWOI68D Voltage Max 5000V 2500V 1000V Testing Rating 500V/1000V/ 250V/500V/ 100V/250V/ Voltage 2500V/5000V 1000V/2500V 500V/1000V Output voltage 90～110% Testing Rating Voltage 1MΩ～ 1MΩ～ 1MΩ～ Scale 200GΩ 20GΩ 20GΩ 1MΩ～200MΩ: ± ( 3.0%+5 ) Accuracy 200MΩ～10GΩ: ± ( 5.0%+5 ) 10GΩ～200GΩ: ±...
- Page 4 (1) Mounting hole (2) High voltage startup switch: TEST/STOP (3) Data holding key: HOLD (4) Rating voltage rotating switch (5) Crust of meter (6) Protective casing (7) LCD (8) Back light switch: LIGHT (9) High voltage indicator light (10) ACV measurement terminal COM / Shield input terminal for insulation / Battery charge negative pole (11) EARTH input terminal (Insulation)
- Page 5 another part of measuring object. d. Then the digital display voltage is the AC voltage of the metrical object in fact. (3) Insulation resistance testing a. Connection of measuring lead Insert the big plug of lead with probe to measuring terminal “L”, the plug of lead with clip to measuring terminal “E”, and the black plug of AC measuring lead with a small clip to “...
- Page 6 a. The measuring lead of the insulation tester: 1 set b. User’s manual: 1 piece Above picture and content just for your reference. Please be subject to the actual products if anything different or updated. Please pardon for not informing in advance.
