Summary of Contents for FUST EUF2703

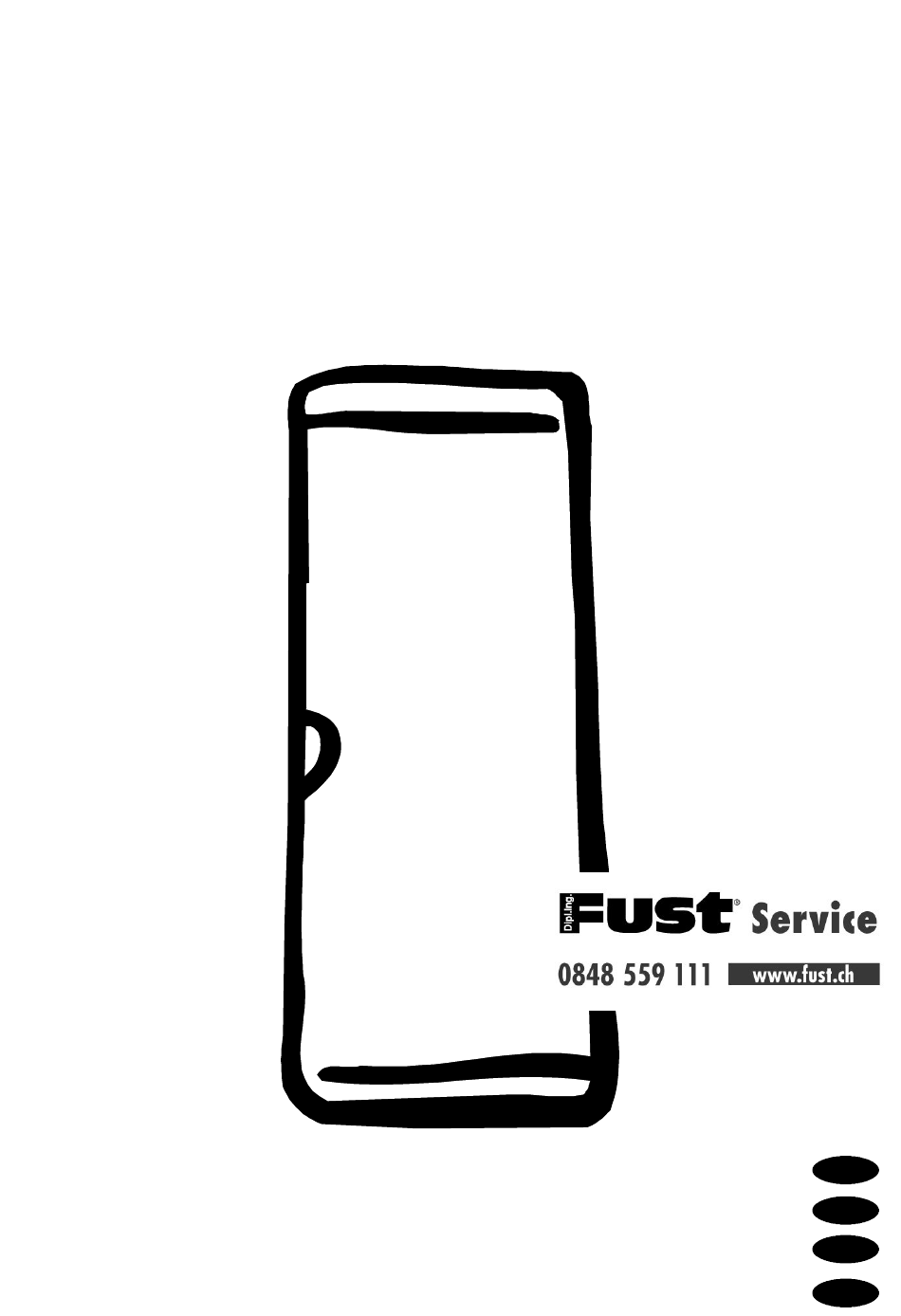

- Page 1 G e f r i e r / C o n g é l a t e u r / G o n g e l a t o r e / F r e e z e r GEBRAUCHSANWEISUNG NOTICE D’UTILISATION ISTRUZIONI D’USO INSTRUCTION BOOKLET EUF2703, EUF3103 818 22 59--03/9...
-
Page 2: Table Of Contents
Safety instructions Your new freezer may have other functions compared to your previous one. Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety. -
Page 3: Description Of The Appliance
Description of the Appliance Models EUF2703 1. Accumulator 2. Freezershelf with flap 3. Freezer basket 4. Ventilation grill Model EUF3103 1. Accumulator 2. Freezershelf with flap 3. Freezer basket 4. Ventilation grill Control Panel -- 18 ACTION FREEZE D. FAST FREEZE button A. -
Page 4: Before Use
Before use Position and clean the cabinet as explained in the section "Installation". Before inserting the power plug into the outlet and switching on the cabinet for the first time, leave it standing upright for about 4 hours. Otherwise the compressor may sustain damage. -
Page 5: Adjustning The Thermometer Display
Adjustning the thermometer display On delivery, the cabinet's thermometer is set to show the average temperature during normal operation conditions. If the cabinet is used during other operational conditions, for example, in warmer surroundings, with a lot of food or if the cabinet is run entirely or partially without accessories the thermometer display can be adjusted for these conditions. -
Page 6: Freezing
Temperature memory The temperature memory shows when an alarm has been triggered in the cabinet. The temperature memory operates as follows: When the temperature inside the freezer again falls below -11°C the audible alarm stops. The temperature display and the red warning lamp will flash to indicate than an alarm was triggered. -
Page 7: Suitable Storage Periods
· Do not freeze too much food at the same time. The freezing capacity of the unit is indicated in the specifications section. Check that the cabinet is operating and keeps the set temperature one day after switching it on for the first time. Only after then should the freezer be used to freeze fresh foodstuff. -
Page 8: Food Storage
frozen food in the freezer immediately. · Food which is to be frozen (when cool) should · Ensure that food placed in the freezer is dated and be placed in the fridge before being transfered to labelled and used in date order to ensure that food the freezer. -
Page 9: To Change The Light Bulb
To change the light bulb The light is switched on automatically when the door is opened. Before replacing the light bulb, disconnect the power plug from the outlet. Press the spring together and pull the grille downward at the same time. Use a bulb of the same type, E14 socket, maximum rating of 25 W. -
Page 10: Service And Spare Parts
Carefully bend them if they do. If the cushion spacers (between the cabinet wall and pipes) come loose, put them back in place again. Carefully follow the instructions in the chapter "Installing the cabinet". Technical specification EUF2703 EUF3103 Model 245 l 293 l Volume Freezer... -
Page 11: Installation
Unpacking Unpack the cabinet and check that it is in good condition and free of any transport damage. Notify the dealer immediately of any damage. Hand the packaging over for recycling. For more information, contact your local city office or the dealer. Do not allow children to play with the packaging. - Page 12 To obtain the best performance from the cabinet, ensure : · the cabinet is placed in a dry, cool place and is not exposed to direct sunlight. · the cabinet is not placed close to a source of heat, e.g. a cooker or dishwasher. ·...
-
Page 13: Door Reversal
Door Reversal 1. Close the cabinet and remove the plug from the electrical socket. 2. Remove the ventilation grille. There is a part on the grille that can be removed. Remove and reposition it on the other side. 3. Put the cabinet on a wooden board when it is laid down. - Page 14 aáÉ=bäÉÅíêçäìñJdêìééÉ=áëí=ÇÉê=ïÉäíïÉáí=Öê∏≈íÉ=eÉêëíÉääÉê=îçå=Ö~ëJ=ìåÇ=ëíêçãÄÉíêáÉÄÉåÉå=dÉê®íÉå=ÑΩê=ÇáÉ=hΩÅÜÉI=òìã oÉáåáÖÉå=ìåÇ=ÑΩê=cçêëí=ìåÇ=d~êíÉåK=gÉÇÉë=g~Üê=îÉêâ~ìÑí=ÇáÉ=bäÉÅíêçäìñJdêìééÉ=áå=ΩÄÉê=NRM=i®åÇÉêå=ÇÉê=bêÇÉ=ΩÄÉê=RR jáääáçåÉå=mêçÇìâíÉ=EhΩÜäëÅÜê®åâÉI=eÉêÇÉI=t~ëÅÜã~ëÅÜáåÉåI=pí~ìÄë~ìÖÉêI=jçíçêë®ÖÉå=ìåÇ=o~ëÉåã®ÜÉêF=ãáí=ÉáåÉã tÉêí=îçå=êìåÇ=NQ=jêÇK=rpaK iÉ=dêçìéÉ=bäÉÅíêçäìñ=Éëí=äÉ=éêÉãáÉê=Ñ~ÄêáÅ~åí=ãçåÇá~ä=ÇD~éé~êÉáäë=ÇçãÉëíáèìÉëI=ÇDÉåíêÉíáÉå=Éí=éçìê=äDÉñí¨êáÉìêK mäìë=ÇÉ=RR=ãáääáçåë=ÇÉ=éêçÇìáíë=Çì=dêçìéÉ=bäÉÅíêçäìñ=EíÉäë=èìÉ=ê¨ÑêáÖ¨ê~íÉìêëI=Åìáëáåá≠êÉëI=ä~îÉJäáåÖÉI=~ëéáê~íÉìêëI íêçå´çååÉìëÉëI=íçåÇÉìëÉë=¶=Ö~òçåF=ëçåí=îÉåÇìë=ÅÜ~èìÉ=~åå¨É=éçìê=ìå=ãçåí~åí=ÇDÉåîáêçå=NQ=ãáääá~êÇë=ÇDbìêçë Ç~åë=éäìë=ÇÉ=NRM=é~óë=¶=íê~îÉêë=äÉ=ãçåÇÉK fä=dêìééç=bäÉÅíêçäìñ==ÉD=áä=éáìD=Öê~åÇÉ=éêçÇìííçêÉ=ãçåÇá~äÉ=Çá=~éé~êÉÅÅÜá~íìêÉ=éÉê=ä~=ÅìÅáå~I=éÉê=ä~=éìäáòá~=É=Çá ~ííêÉòò~íìêÉ==éÉê=áä=Öá~êÇáå~ÖÖáç=É=éÉê=ìëç=ÑçêÉëí~äÉK=läíêÉ=RR=ãáäáçåá=Çá=éêçÇçííá=ÇÉä=dêìééç=bäÉÅíêçäìñ==E=èì~äá=ÑêáÖçêáÑÉêáI ÅìÅáåÉI=ä~î~Äá~åÅÜÉêá~I=ä~î~ëíçîáÖäáÉI=~ëéáê~éçäîÉêÉI=ãçíçëÉÖÜÉ=É=ê~ë~ÉêÄ~=F=îÉåÖçåç=îÉåÇìíÉ=çÖåá=~ååç=áå=éáìD=Çá=NRM m~Éëá=ÇÉä=ãçåÇç=éÉê=ìå=î~äçêÉ=Çá=ÅáêÅ~=NQ=ãáäá~êÇá=Çá=Ççää~êáK qÜÉ=bäÉÅíêçäìñ=dêçìé=áë=íÜÉ=ïçêäÇDë=ä~êÖÉëí=éêçÇìÅÉê=çÑ=éçïÉêÉÇ=~ééäá~åÅÉë=Ñçê=âáíÅÜÉåI=ÅäÉ~åáåÖ=~åÇ=çìíÇççê=ìëÉK jçêÉ=íÜ~å=RR=ãáääáçå=bäÉÅíêçäìñ=dêçìé=éêçÇìÅíë=EëìÅÜ=~ë=êÉÑêáÖÉê~íçêëI=ÅççâÉêëI=ï~ëÜáåÖ=ã~ÅÜáåÉëI=î~Åììã=ÅäÉ~åÉêëI ÅÜ~áå=ë~ïë=~åÇ=ä~ïå=ãçïÉêëF=~êÉ=ëçäÇ=É~ÅÜ=óÉ~ê=íç=~=î~äìÉ=çÑ=~ééêçñK=rpa=NQ=Äáääáçå=áå=ãçêÉ=íÜ~å=NRM=ÅçìåíêáÉë ~êçìåÇ=íÜÉ=ïçêäÇK MARIESTAD DT--AV...
