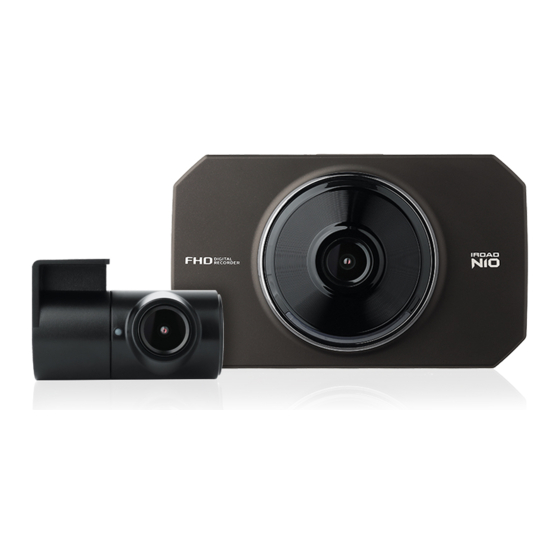

- Page 1 IROAD N10 USER GUIDE Read user manual carefully in order to protect the user's safety and ensure the accurate use of the product.
-
Page 2: Table Of Contents
INDEX BEFORE USING LCD MENU TROUBLESHOOTING ... 41 USER INFORMATION ......1 LIVE SCREEN ........17~18 PRECAUTION ........2~3 MAIN SCREEN ........19 PLAYBACK ..........20 PRODUCT INFORMATION CAMERA ..........21 PRODUCT OVERVIEW ......4 TIME ............. 22 PACKAGE COMPONENT ...... -
Page 3: User Information
1. USER INFORMATION... -
Page 4: Precaution
2. PRECAUTION... - Page 5 3. PRECAUTION...
-
Page 6: Product Overview
4. PRODUCT OVERVIEW Dedicated PC Viewer & Smartphone Playback Playback recorded data, set various functions on dedicated PC Viewer. Playback on PC and Smartphone playback available. -
Page 7: Package Component
5. PACKAGE COMPONENT The picture of this package may differ form the real. The images of components can be different from the real and some may be changed. Product has a built in memory card.(32GB) 아이로드 N10 사용설명서 Rear Camera Uninterrupted User Manual Fuse Cable... -
Page 8: Name Of Each Part
6. NAME OF EACH PART Front Camera Lens Power LED Power Button Rear Camera Cable Slot Security LED REC LED Micro SD Card Slot Security LED Transparent Cradle Power Connector Rear Camera Lens Cradle Screws Rear Camera Cable Slot (V-IN) Transparent Cradle 3.5 inch Touch LCD External GPS Connector... -
Page 9: Specification
7. SPECIFICATION The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Model IROAD N10 Image Sensor 2.0 Mega Pixel Image Sensor Resolution / Frame / Viewing Angle Front Full HD 1920x10800p 30fps, Rear Full HD 1920x10800p 30fps / Front 140˚, Rear 135˚... -
Page 10: Installation
8. INSTALLATION The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Use dry fabric to wipe out the spot where the product will be attached on the windscreen. Make sure to install the product on where sight is not disturbed. - Page 11 9. INSTALLATION The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. 4. Connect power cable to DC-IN slot. 5. Other side of cable connect to vehicle fuse or cigar jack cable. In order to install uninterrupted power cable, refer to the webiste www.iroadkr.com or look at this instrcution page 10.
-
Page 12: Uninterrupted Fuse Cable
10. UNINTERRUPTED FUSE CABLE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It prevents battery discharge beforehand while in parking mode. The uninterrupted power function ensures your battery is protected. The discharge of battery voltage will be prevented in advance for 24 hours if the battery level goes down the minimum preset level. -
Page 13: Product Function
11. PRODUCT OPERATION The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. - All LED will be turned on when the engine is on. Power ON - Start normal recording along with voice guidance. Power OFF - All LED will be turned off... -
Page 14: Button Scenario Guide
12. BUTTON SCENARIO GUIDE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. - Press the button for 5 seconds. Power OFF - The power is turned off along with voice guidance. - Press the button for 5 seconds. -
Page 15: Recording Mode
13. RECORDING MODE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. - Normal recording starts when power is connected. Normal Recording - Security LED flashes once every second. - It compresses and records the video which recorded for 8 minutes (driving mode) Hyper Lapse at 1 frame per second (1 FPS). -
Page 16: Voice Guidance
14. VOICE GUIDANCE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Power ON Driving mode starts, Safe driving Normal Recording Start recording Menu Entry Stop recording Parking Recording Start parking mode Motion Detection Recording Impact occurred during the parking... -
Page 17: Video Folders In Sd Memory Card
15. VIDEO FOLDERS IN SD MEMORY CARD The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. -
Page 18: Firmware Update
16. FIRMWARE UPDATE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. -
Page 19: Live Screen
17. LIVE SCREEN The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. When the dash cam is turned on, the above screen is displayed on the LCD with the voice guidance. Status Recording mode, GPS, Voltage Status / Date, Time Manual recording... - Page 20 18. LIVE SCREEN The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. When the dash cam is turned on, the above screen is displayed on the LCD with the voice guidacne. Tap on the screen, switch to the front, rear recording and PIP.
-
Page 21: Main Screen
19.MAIN SCREEN The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Tap on the main menu button, then menu screen is shown. ※When entering the main menu, recording is paused to stabilize the product. After moving to the live screen recording is restarted. Live screen Check live screen. -
Page 22: Playback
20. PLAYBACK The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Tap on the palyback button, then the recording lists are shown. Press the 'Tab' button on top to arrange saved files in timely order. Press the left/right arrow to move to the previous / next page. -
Page 23: Camera
Press 'Camera' button to adjust the resolution, brightness, night vision, security LED, and hyper lapse settings. Night vision is configurable only at the front camera and improves the recording definition at night time. IROAD N10 has a fixed resolution of 1080p for front and rear camera. -
Page 24: Time
22. TIME SETTING The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Tap on time button on the setup screen to adjust date / time, auto rebooting and time zone settings. Date / Time Setting Tap on date / time button to adjust the date / time. -
Page 25: Sound
23. SOUND The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Tap on sound button on the setup screen to activate / deactivate audio recording and voice guidance. Volume Setting Choose among Low / Medium / High Audio Recording Toggle it to turn On / Off audio guidance... -
Page 26: Adas
24. ADAS The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can be controlled touch a setting button to Use or Not Use. [ADAS, FCWS, FVDW, LDWS] ADAS Function (Advnaced Drivers Assistant System) ADAS Use / Not use FCWS Function (Front Collision Warning System) FCWS Use / Not use... - Page 27 25. ADAS The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the sensitivity of LDWS, FCWS, and the speed for LDWS. Thereby touch a detailed setting button as above picture. LDWS sensitivity Select Activation Speed of LDWS FCWS sensitivity...
-
Page 28: Event
26. EVENT The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the Parking Recording, Impact / Motion, Time Lapse and Time. ※Timelapse function is automatically activated if user do not select any of parking recording options. Parking Recording Toggle it to turn On / Off parking recording Parking Impact... - Page 29 27. EVENT The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the Impact (Driving/Parking) / Motion Sensitivity. Driving Impact Choose among Low / Medium / High Parking Impact Choose among Low / Medium / High Motion Detection...
-
Page 30: Voltage
28. VOLTAGE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the LBP, winter LBP setting and Power off voltage. Toggle it to activate / deactivate LBP function Winter LBP Toggle it to activate / deactivate winter LBP function. - Page 31 29. VOLTAGE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the High Temp Shutdown function. High Temp Shutdown temperature (75℃) reached in parking mode. The power is cut off to protect.
-
Page 32: Memory Space Management
30. MEMORY The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the overwrrite ON / OFF, memory allocation and formating are available. Adjust the percentage of memory space allocatted between event folder and normal folder Event &... -
Page 33: Secret Mode
31. SECRET MODE The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. : This function will be supported through the firmware update. It can set up the password setting(secret mode). The secret mode protects the recorded video and prevents deletion. -
Page 34: Lcd
32. LCD The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the Always on (clock / live) and auto hibernation settings. Auto hibernation Touch what you want and it will be ticked, and press back button to save the configuration. Always on After selecting real-time video, clock, ADAS, and speed among Always ON functions, the set functions operate after a period of time. - Page 35 33. LCD The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. It can set up the LCD Brightness, Touch correction, Reverse Rear View settings. LCD Brightness Choose among Dark / Normal / Bright Calibration Run touch correction when tapping on the screen is not smooth and well.
-
Page 36: Version
34. VERSION The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Tap on the version to adjust firmware version and default settings Touch reset settings to complete the initialization after rebooting the product. Default Setting... -
Page 37: Dedicated Pc Viewer
35. DEDICATED PC VIEWER The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. -
Page 38: List Of Recordings & Front/ Rear Palyback
36. DEDICATED PC VIEWER The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Menu Setting Backup Screen Capture Video Control Left / Right Reversal Up / Down Reversal Full Channel (Front / Rear) Switching Viewer Information... -
Page 39: Backup
37. BACKUP The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Backup Do you want to back up the selected files? C:\Users\Desktop Front and rear video separation Create GPS information file Data Path Apply Cancel... -
Page 40: Settings
38. SETTING The function is able to be changed for firmware upgrade or product enhancement without prior notice, please visit website regulary. Blackbox Settings CAMERA Time Event Date/Time 05-06-2020 Front camera Parking Recording 12:07:58 Resolution 1920 x 1080 Parking Impact Timezone (GMT +09:00) Brightness... -
Page 41: Troubleshooting
41. TROUBLE SHOOTING Power will be disconnected by safety guard voltage Recheck if power cable is connected. if it goes down below set up voltage. Check whether the authentic power cable is connected. Battery discharging period might be shortenby battery condition or Make sure constant power cable is connected to correct fuse.
