- Page 1 PBH-200 User Manual * Please refer to the manual at www.croise.co.kr for more information...
-
Page 2: Ce Compliance Information
CE Compliance Information Croise.R, hereby declares that this PBH-200 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. FCC Compliance Information FCC ID : 2AD5K-PBH200 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Package Contents
Package Contents Package Contents PBH-200 User Manual Description of Parts Installation of Cable Clip Product Specifications and Features How to use Power on/off Battery Charging Pairing Calling Transferring a Call Volume Control Music Play Language Set-up Change Multi-Connection Using Application Button Functions &... - Page 4 / Package Contents / Cable Clip Earbud Covers (Large / Small) User Manual PBH-200 ※ The components of above package are subject to change without notice to improve the product performance or quality.
-
Page 5: Description Of Parts
/ Description of Parts / Micro USB Mic 2 Volume Up Volume Down Play / Pause Call Mic 1... - Page 6 / Installation of Cable Clip / Please hang the clip on the Place it at the suit position and headset band by stretching fix the earphone cable properly. it little bit. ※ The length of cable from the headset body to a user's ear can be easily adjusted through using the clip.
-
Page 7: Product Specifications And Features
/ Product Specifications and features / Standby Time 500 hours Operating Time (Music) 12 hours Operating Time(Talk) 14 hours Charging Time 2 hours Battery Lithium Polymer Battery 3.7V (195mAh) Working Distance Supported profiles HFP / HSP / A2DP / AVRCP Decoder SBC, APT-X Bluetooth Version... -
Page 8: How To Use
/ How to use / 1. Power On / Off Power On - Press the button for 1 second - The red + blue LED light flashes for 0.5 second and Power is turned on with voice guide. Power Off - Press the button for 3 seconds - The red + blue LED light flashes for 0.5 second and Power is turned off with voice guide. - Page 9 Recommendations - Using USB Hub may take extra charging time due to the low current. For Fast charging, please use the 5V 500mA ~ 5V 1A rated charger. ※ It takes approximately 2 hours to have it fully charged when battery exhausted 3.
- Page 10 6. Pairing Before using the headset for the first time, you must pair it with a Bluetooth-enabled Device. * Pairing : Connect between Bluetooth-enabled Device and Headset. - Press the call button for 1 second to turn on the device - After power on, the headset will automatically enter to pairing mode.
-
Page 11: Voice Dial
Clearing Paired Device - Hold call button for 1 second and Volume button while placing power slide switch to ON then paired device will be cleared with voice guide “ Clear Paired List” and enter to Pairing Mode. 7. Calling Voice Dial - Briefly press Call button to activate Voice Dial. -
Page 12: Call Transfer
9. Call Transfer - During the call, press Call button for 1 second, audio will be transferred from headset to mobile phone. - And press Call button for 1 second again, audio will be transferred from mobile phone to headset. 10. -
Page 13: Volume Control
11. Volume Control ※ User can hear the long beep at maximum and minimum volume. Volume Up - While calling or listening the music, briefly press Volume + button. Volume Down - While calling or listening the music, briefly press Volume - button. Mute - During the call, press Volume +, - button at the same time for mute. -
Page 14: Skip Backward
Skip Backward - It goes back to previous music if press the Volume - button for 1 second during play Skip Forward - It goes to the next music if press the Volume + button for 1 second during play Rewind - It rewinds if press the Volume - button for 3 second during play Fast Forward... -
Page 15: Listening Music
14. Advanced Multi-Connection Multi-connection is useful to link more than a mobile device. Pairing - Proceed pairing of the first device manually. - Power off the headset upon registration of the first device is completed. - Power on holding the call button for pairing mode. - Pairing 2nd device for registration. -
Page 16: Auto Reconnect
Message read set-up, Remote shoots, etc after set-up the Croise.R Reader app. Please download app. in google play store by typing croise or partron. * It is available only for the android (Device of higher than 4.3 version is available) - Page 17 17. Button function and status information Function Action Status Voice : Turn on Power ON Press the call button for 1 second LED : Red and Blue LED blink at the same time Power OFF Press the call button for 3 seconds for 0.5 second and then off.
- Page 18 Function Action Status Connection to Briefly press the call button on Mobile Phone connection standby status Red, Blue LED lights flash in turn Pairing related Connected Connected voice information : Disconnected Disconnected Press the call button for 3 seconds Link Loss Out of Range Pairing Mode in off mode...
- Page 19 Function Action Status Press the volume – button for 1 second Skip Backward and take off during playing the music Press the volume + button for 1 second Skip Forward and take off during playing the music Press the volume + button for 3 seconds Fast Forward and take off during playing the music Press the volume - button for 3 seconds...
- Page 20 / Precautions / • Do not disassemble or modify. It may cause fire and disorder. • Do not use or place the product at high or low temperature. • Do not place the product near the high humidity, volatile, or flammables. •...
- Page 21 • User's negligence or any failure from improper disassemble, repair and modification. • Failure caused by acts of God such as fire and flood. • Failure using other options which is not provided from Partron. • This Warranty does not cover product failures due to improper repair installations, modifications or service performed by a non-authorized person.
-
Page 22: Product Warranty
/ Product Warranty / •The warranty is valid only if the original receipt issued to the original purchaser by the dealer. •If the product label is removed, physical change of the product or unapproved repair by the 3rd person, will invalidate of the warranty. •The consumables, such as ear cap, battery and other accessories, which have limited life, will be excluded from the product warranty. -
Page 23: Product Warranty Card

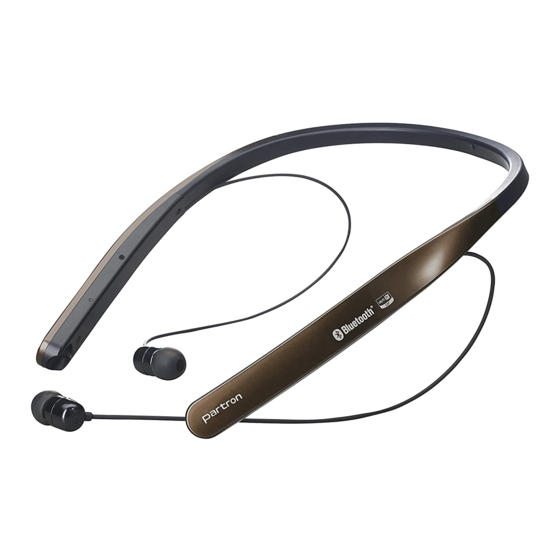

/ Product Warranty Card / Product Name Purchased Date Month Year Purchased Place Model No. Within 1 year from the purchased date Warranty Period (Battery Warranty period is 6 months) - Page 24 1. Model Name : Neck Band Bluetooth Headset 2. Part Number : PBH-200 3. Manufacturer : PARTRON Co., Ltd. 4. Country of Origin : Republic of Korea 5. Address : 22, Samsung 1-ro 2-gil, Hwaseong, Gyeonggi 445-170, Korea - Please take the time to follow the instructions in this owner’s guide carefully.
