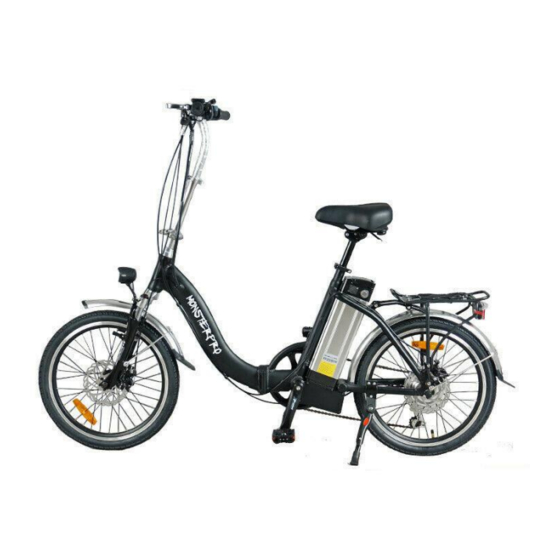

S501 20" Electric Folding Bicycle
MONSTERPRO
MONSTERPRO S501 FOLDING
20" Electric Bike
User Manual
[Revision 2.0 June 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID
WARRANTY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
PRODUCTS COVERED BY THIS MANUAL MAY VARY IN APPEARANCE, ASSEMBLY, INCLUSIONS, SPECIFICATIONS, DESCRIPTION
AND PACKAGING.
©2019 MONSTERPRO
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S501 and is the answer not in the manual?

Questions and answers

Related Manuals for MONSTERPRO S501

Summary of Contents for MONSTERPRO S501

  • Page 1 S501 20” Electric Folding Bicycle MONSTERPRO MONSTERPRO S501 FOLDING 20” Electric Bike User Manual [Revision 2.0 June 2019] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. KEEP THIS MANUAL FOR FUTURE REFERENCE.

  • Page 2: Battery And Charging

    S501 20” Electric Folding Bicycle Safety • Riding can be a hazardous activity. Certain conditions may cause the equipment to fail without fault of the manufacturer. The product can and is intended to move, and it is therefore possible to lose control, fall-off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate.

  • Page 3: Read The Manual

    Note that the manual is not intended to be an extensive reference source for servicing, maintenance and/or repairs. For additional assistance, contact an authorised MONSTERPRO service centre. In the interests of your safety and the safety of others, it is highly recommended to have your bicycle assembled and serviced / adjusted by a skilled bicycle mechanic.

  • Page 4: Product Layout

    S501 20” Electric Folding Bicycle Product Layout Note: the illustrations in this user manual may differ slightly from the bike model you received. Folding and unfolding instructions are similar and should be used as a reference guide. Tools Required for Assembly...

  • Page 5: Unfolding Instructions

    S501 20” Electric Folding Bicycle Unfolding Instructions Step Three: Step Two: Step One: PULL the lever to release the Swing the front and rear halves Carefully place the bicycle on a flat bottom pin. of the bike frame apart. surface.

  • Page 6: Folding Instructions

    S501 20” Electric Folding Bicycle Folding Instructions Step Two Step One: Press the pedal and flip the Prepare to fold your bicycle by pedal upward. Step Three: standing on the side with the Be careful to keep your fingers Unlock the handle post latch.

  • Page 7: Handlebar Assembly

    S501 20” Electric Folding Bicycle Handlebar Assembly Carefully place the bicycle assembly on a flat surface so that it rests on the front fork and rear wheel. Place and slide the handlebar assembly centrally into position in the clamp, rotate the handlebar assembly, as required, so it is aligned "square"...
  • Page 8 S501 20” Electric Folding Bicycle Presentation of LCD Screen ©2019 MONSTERPRO...
  • Page 9 S501 20” Electric Folding Bicycle Special Functions / Parameter setting Changing the settings for some functions may cause the bicycle to operate abnormally or in a way that may appear to be a fault. Take extra care when using any special function to avoid making a setting that may adversely affect bicycle operation or how you want it to operate.
  • Page 10 S501 20” Electric Folding Bicycle Guidelines for Using Pedal Assistance To get the best performance and service life from the pedal assistance system, understand and apply the following techniques: Note that some characteristics of how pedal assistance functions may differ from that described here as a result of some special function settings.

  • Page 11: Using Brakes

    S501 20” Electric Folding Bicycle Using Brakes All bicycle models are equipped with a front and rear wheel braking system. Brakes are used to slow the bicycle down. The braking systems may use different mechanics, however, the functionality is the same, and that is to change the energy of the moving bicycle into heat energy ("friction"):...
  • Page 12 S501 20” Electric Folding Bicycle Guidelines for Using Brakes To get the best performance and service life from the brake system, understand and apply the following techniques: • In wet conditions, which reduces friction, always provide additional distance for braking and adjust how quickly you apply the brakes.

  • Page 13: Battery Storage

    S501 20” Electric Folding Bicycle Batteries and Battery Charging Never modify the electrical system. Alterations may cause a fire, resulting in serious injury and could also damage the electrical system. • Charge with the supplied charger only. Use of the wrong charger may cause a fire or explosion, resulting in serious injury.
  • Page 14 S501 20” Electric Folding Bicycle warranty void. Improper adjustment or service may result in damage to the bicycle or make it hazardous. Maintenance requirements may be affected by any number of factors from your riding style to geographic location. When new, parts of the bicycle may "break-in" over the course of the first approximate 100km of riding, possibly including the stretching of cables, spoke tension changes etc.
  • Page 15 S501 20” Electric Folding Bicycle Maintenance Schedule Check Before *Check Clean / Adjust / Component / Condition Every Ride Periodically Lubricate Tighten / Replace as Required Tyre Pressure ■ ■ Tyre Wear / Damage ■ ■ Brake Adjustment ■ ■...

  • Page 16: Troubleshooting

    S501 20” Electric Folding Bicycle Troubleshooting Malfunction Possible Cause Possible Solution Pedal assistance not Under-charged battery. Charge battery. Follow battery care procedures. working Battery no longer serviceable. Have battery checked. Replace if faulty. Battery charger faulty. Have charger checked. Replace if faulty.
  • Page 17 S501 20” Electric Folding Bicycle Front forks or frame bent. Straighten. Motor "clicks" / has Under-charged battery. Charge battery. Follow battery care procedures. reduced power and/or Motor internal fault. Replace. shuts off No power when pedal Blown fuse. Replace. assistance switched ON Loose connectors / wiring damage.
  • Page 18 S501 20” Electric Folding Bicycle Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. Consult all documentation, packaging and The product has been supplied by a general merchandise retailer ...
  • Page 19 Misused, abused or neglected • Rented, for commercial use, sold or given away Monsterpro will not be liable for incidental or consequential loss or damage due directly or indirectly from use of this product. Warranty and Repair Claim To claim your warranty, please provide proof of purchase and contact us via email or phone listed below.
