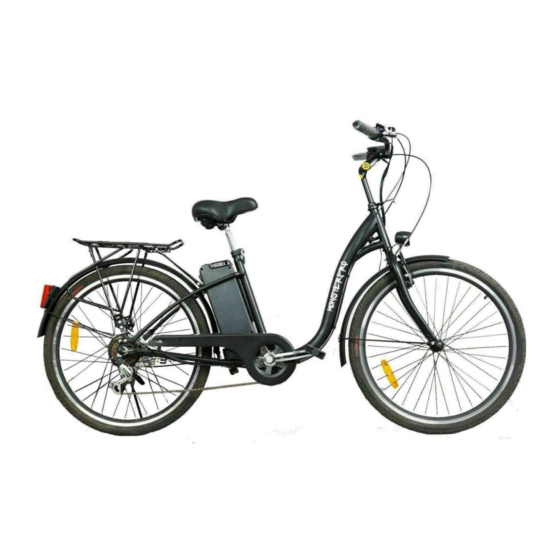

MONSTERPRO S502 User Manual

26” electric bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S502 26" Electric Bicycle
MONSTERPRO
MONSTERPRO S502 26" Electric Bike
User Manual
[Revision 2.0 May 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID
WARRANTY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
PRODUCTS COVERED BY THIS MANUAL MAY VARY IN APPEARANCE, ASSEMBLY, INCLUSIONS, SPECIFICATIONS, DESCRIPTION
AND PACKAGING.
©2019 MONSTERPRO
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S502 and is the answer not in the manual?

Questions and answers

Related Manuals for MONSTERPRO S502

Summary of Contents for MONSTERPRO S502

  • Page 1 S502 26” Electric Bicycle MONSTERPRO MONSTERPRO S502 26” Electric Bike User Manual [Revision 2.0 May 2019] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. KEEP THIS MANUAL FOR FUTURE REFERENCE.

  • Page 2: Battery And Charging

    S502 26” Electric Bicycle Safety • Riding can be a hazardous activity. Certain conditions may cause the equipment to fail without fault of the manufacturer. The product can and is intended to move, and it is therefore possible to lose control, fall-off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate.

  • Page 3: Read The Manual

    Note that the manual is not intended to be an extensive reference source for servicing, maintenance and/or repairs. For additional assistance, contact an authorised MONSTERPRO service centre. In the interests of your safety and the safety of others, it is highly recommended to have your bicycle assembled and serviced / adjusted by a skilled bicycle mechanic.

  • Page 4: Parts Identification And Assembly

    S502 26” Electric Bicycle Parts Identification and Assembly Name Spanners & Allen keys Set Bicycle Assembly (Frame, Forks, Handlebar, Crank, Chain, Battery, Motor, Rear Wheel etc) Front Wheel Front Mudguard Rear Seat Rack Battery Charger Set Seat & Post Tools Required for Assembly The bicycle may come supplied with some tools.
  • Page 5 S502 26” Electric Bicycle Installation Video Guide is available at https://youtu.be/IxizeeLlpqU Handlebars Carefully place the bicycle assembly on a flat surface so that it rests on the front fork and rear wheel. Place and slide the handlebar assembly centrally into position in the clamp, rotate the handlebar assembly, as required, so it is aligned "square"...
  • Page 6 S502 26” Electric Bicycle Front Wheel Please check the wheel direction before installation and release two nuts at axle points. If your bicycle has tabbed lock washers, ensure that the locking tabs are correctly mounted into the holes in the forks.
  • Page 7 S502 26” Electric Bicycle V-Brake Loosen the clamp that holds the brake cable with an Allen key if necessary. Hold each arm in towards the rim of the wheel and pull the loose brake cable through the clamp. Lock the nut into the position.
  • Page 8 S502 26” Electric Bicycle Seat Post Loosen the clamp and insert the seat post into the frame. There is a minimum insertion marked on the seat post. This must be situated below the seat post clamp when riding to avoid accidents and damage.

  • Page 9: Operation

    S502 26” Electric Bicycle Operation Before riding, ensure that all required fasteners are tightened to the correct torque and charge the battery prior to use. Always wear a helmet and appropriate safety equipment and always keep both hands on the handlebars and both feet on the pedals whilst riding.
  • Page 10 S502 26” Electric Bicycle Presentation of LCD Screen ©2019 MONSTERPRO...
  • Page 11 S502 26” Electric Bicycle Special Functions / Parameter setting Changing the settings for some functions may cause the bicycle to operate abnormally or in a way that may appear to be a fault. Take extra care when using any special function to avoid making a setting that may adversely affect bicycle operation or how you want it to operate.
  • Page 12 S502 26” Electric Bicycle Guidelines for Using Pedal Assistance To get the best performance and service life from the pedal assistance system, understand and apply the following techniques: Note that some characteristics of how pedal assistance functions may differ from that described here as a result of some special function settings.

  • Page 13: Using Brakes

    S502 26” Electric Bicycle Using Brakes All bicycle models are equipped with a front and rear wheel braking system. Brakes are used to slow the bicycle down. The braking systems may use different mechanics, however, the functionality is the same, and that is to change the energy of the moving bicycle into heat energy ("friction"):...

  • Page 14: Batteries And Battery Charging

    S502 26” Electric Bicycle Batteries and Battery Charging Never modify the electrical system. Alterations may cause a fire, resulting in serious injury and could also damage the electrical system. • Charge with the supplied charger only. Use of the wrong charger may cause a fire or explosion, resulting in serious injury.
  • Page 15 S502 26” Electric Bicycle in the maintenance schedule below that are recommended to be performed by a qualified technician are highlighted yellow. Failure to follow the maintenance recommendations, using incorrect or non- compatible accessories or replacement parts, or general negligence may result in making the product warranty void.
  • Page 16 S502 26” Electric Bicycle Maintenance Schedule Check Before *Check Clean / Adjust / Component / Condition Every Ride Periodically Lubricate Tighten / Replace as Required Tyre Pressure ■ ■ Tyre Wear / Damage ■ ■ Brake Adjustment ■ ■ Handlebar Tightness ■...

  • Page 17: Troubleshooting

    S502 26” Electric Bicycle Troubleshooting Malfunction Possible Cause Possible Solution Pedal assistance not Under-charged battery. Charge battery. Follow battery care procedures. working Battery no longer serviceable. Have battery checked. Replace if faulty. Battery charger faulty. Have charger checked. Replace if faulty.
  • Page 18 S502 26” Electric Bicycle Front forks or frame bent. Straighten. Motor "clicks" / has Under-charged battery. Charge battery. Follow battery care procedures. reduced power and/or Motor internal fault. Replace. shuts off No power when pedal Blown fuse. Replace. assistance switched ON Loose connectors / wiring damage.
  • Page 19 S502 26” Electric Bicycle Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. Consult all documentation, packaging and The product has been supplied by a general merchandise retailer ...
  • Page 20 Misused, abused or neglected • Rented, for commercial use, sold or given away Monsterpro will not be liable for incidental or consequential loss or damage due directly or indirectly from use of this product. Warranty and Repair Claim To claim your warranty, please provide proof of purchase and contact us via email or phone listed below.
