Muji AD-SD1-SG User Manual

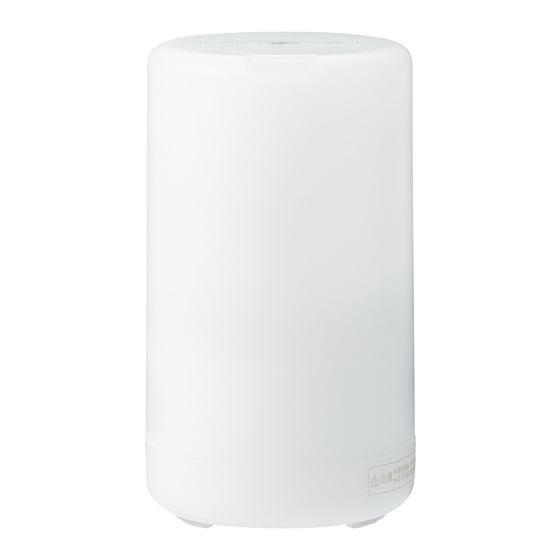

Ultrasonic aroma diffuser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ultrasonic
Aroma Diffuser AD-SD1-SG
User Manual
For your safety and
enjoyment, please read and
understand this manual
before using your product.
After reading this manual,
store in a safe and handy
location for future reference
regarding any questions that
may arise.
Version 3.0
2020.3

Table of Contents

• Introduction . . . . . . . . . . . . . . . . . . 1-5
• About Essential Oils. . . . . . . . . . . . . . 6
Ultrasonic Aroma Diffuser. . . . . . . . . 6
• Components . . . . . . . . . . . . . . . . . . . . 7
• Part Names . . . . . . . . . . . . . . . . . . . . . 8
• Cleaning Up Spills . . . . . . . . . . . 15-16
• Care/Storage. . . . . . . . . . . . . . . . 17-19
• Disposal . . . . . . . . . . . . . . . . . . . . . . 20
• Troubleshooting . . . . . . . . . . . . . 20-21
• Specifications. . . . . . . . . . . . . . . . . . 22
A hard copy of Instruction manual is
available upon request to staff.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-SD1-SG and is the answer not in the manual?

Questions and answers

Related Manuals for Muji AD-SD1-SG

Summary of Contents for Muji AD-SD1-SG

  • Page 1: Table Of Contents

    Ultrasonic Aroma Diffuser AD-SD1-SG User Manual Table of Contents For your safety and • Introduction ....1-5 enjoyment, please read and • About Essential Oils....6 understand this manual •...

  • Page 2: Introduction

    Introduction For your safety, please read and follow all instructions • This product is a household electrical appliance. • This product is not intended for use as interior room lighting. • This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 3 Do not use this product if the Do not damage the AC adapter power cord, bend the cord forcefully, pull, or AC adapter power cord or plug twist the cord. Do not allow the cord become damaged, or if the to come close to hot components, and plug does not sit firmly in the Prohibited...
  • Page 4 Using This Product Immediately unplug the AC adapter This device is not a medical from the electrical outlet if you notice inhaler or vaporizer. an abnormal odour, abnormal sound, Do not intentionally inhale if the adapter or diffuser unit becomes mist emitted from the diffuser unusually hot, or if you notice some outlet directly.
  • Page 5 This symbol indicates a matter which may lead to user injury or CAUTION physical property damage. Before Using This Product Always use clean, Do not use this product in the following locations. room-temperature tap water in →Doing so may result in product this product.
  • Page 6 Do not remove the outer cover Never turn this product on while the product is in operation. when the water tank is empty. →Water or essential oil may →Doing so may result in damage Prohibited spill, causing damage to the to the ultrasonic diaphragm, Prohibited surrounding area or resulting...

  • Page 7: About Essential Oils

    About Essential Oils ●Always use essential oils from 100% ●Use two to three drops (0.0.1ml-0.2ml) of essential oil per 100ml of water (full tank). natural plant extracts with this product. Adding essential oils to an empty (or low) Perfumes, aroma oils containing synthetic water tank may result in product perfumes, oils containing impurities or solids, etc.

  • Page 8: Components

    Components ・ Water measuring cup (100ml) ・ Outer cover ・ AC adapter ・ Inner cover ・ Diffuser unit ・ User Manual (this manual)

  • Page 9: Part Names

    Part Names Diffuser outlet Inner cover Front Outer cover Air outlet Interior View Ultrasonic diaphragm *Located in the Water tank bottom centre of Water outlet the water tank Back Timer Diffuser unit Alignment marks Mist switch (Bottom) Air intake (Protrusion) (Interior houses a fan) Cable guide Water outlet...

  • Page 10: Using Your Aroma Diffuser

    Using Your Aroma Diffuser 1. Using Your Aroma Diffuser 2. Remove the small box 3. From the small box, remove the AC Adapter and Water Measuring Cup * Dispose of this product and packaging materials in accordance with your local regulations.
  • Page 11 4. Insert plug into AC adapter ・Push the tab in the centre ・Insert the top end of  of the plug installation  the plug while the tab  area toward the direction  is pushed to the side.  indicated by PUSH. ・Next, insert the bottom ・Push down until  end of the plug while the  you hear a click.
  • Page 12 5. Remove the outer cover of 6. Turn the Diffuser Unit over the diffuser Cable guide DC jack ・Gently twist the cover anticlockwise (as seen from the top) to remove. *Never touch the ultrasonic diaphragm inside the water tank directly. Doing so may result in malfunction or leakage.
  • Page 13 8. Fill with water and essential oil ・Be careful not to spill water while filling the water tank. ・Add a few drops of essential oil to the water in the water tank. * Always use the attached measuring cup (100ml) to fill the water tank.
  • Page 14 11-1. Using Aroma Mist switch ①Push the mist switch * The diffuser is off when first plugged in. * Pushing the mist switch when the water tank is empty (or low) on the diffuser unit. will result in shutting off automatically after three beeps. Mist will begin to emit (Alarm function when tank is empty) from the diffuser.
  • Page 15 ③To stop the mist, either * Mist volume may increase during the summer or conditions with higher temperatures and humidity. In some push the mist switch circumstances, a water tank filled full (100ml) may empty until it cycles to the off prior to the completion of the 180-minute timer, shutting off setting or hold down the diffuser.

  • Page 16: Cleaning Up Spills

    Cleaning Up Spills If a spill happens due to tipping over or tilting the diffuser unit while there is water in the water tank, water may enter the internal components of the diffuser, resulting in a malfunction. If a spill happens, immediately perform the following procedures to drain the water inside. 1.
  • Page 17 4. Dispose of water in the water tank 5. Dry the diffuser Water outlet Water outlet ・ Always tilt the diffuser unit in the ・ Lightly shake the diffuser unit to allow direction of the water draining mark as water to pour out of the bottom water indicated to pour out water remaining in outlet.

  • Page 18: Care/Storage

    Care/Storage For your safety, regularly perform care and maintenance for your Aroma Diffuser. Perform the following procedures. Perform these procedures every five to six uses or every two to three days as a rule. 1. Unplug the AC adapter from the 2.
  • Page 19 4. Dispose of water in the water tank ・  A lways tilt the diffuser unit in the direction of the water draining mark as indicated to pour out water remaining in the water tank. * Never tilt the diffuser toward the air outlet when pouring out water.
  • Page 20 6. Clean the outer cover and inner cover ・  I f essential oil comes into contact with the ・  T o remove dirt near the diffuser outlet, outer cover or inner cover, or the covers remove the inner cover for cleaning. become dirty, wipe it off with a clean cloth * Be sure the outer cover and inner cover that is soaked in diluted neutral detergent...

  • Page 21: Disposal

    Disposal ●Dispose of this product and packaging materials in accordance with your local regulations. Troubleshooting Check the following if the product appears to be broken or operating abnormally. ■Is there enough water in the water tank? No power. →Fill the tank up to 100ml (full) with water. The product won't turn on, or it turns Pushing the mist switch when there is no water or when the...
  • Page 22 ■Are there any bubbles accumulated on or around the ultrasonic diaphragm? →At low water temperatures, bubbles may accumulate on or around the ultrasonic diaphragm, preventing mist from emitting well. Turn the power off, and then use a cotton swab or similar to gently clean any bubbles adhering to the ultrasonic diaphragm.

  • Page 23: Specifications

    Product Specifications [Product Name] Ultrasonic Aroma Diffuser AD-SD1-SG Approximately Φ80×140mm (height; not including protrusions) [External Dimensions] [Diffuser Unit Weight] Approximately 220g (not including AC adapter) [Power Source] Dedicated AC adapter included Power Supply: AC100-240V 50／60Hz Output: DC24V 650mA Power cord length: Approximately 170cm (0.5in)
  • Page 24 超声波香薰机 AD-SD1-SG 24～28 32～37 38～39 40～42 43～44 如您需要打印使用说明书， 第3版 请向店员咨询。 2020.3...
  • Page 25 ・ 使用者若为8岁以上的儿童或残障人士，需在保护人对安全使用的监督指导下， 　 并能充分认识和理解产品使用过程中可能发生的危险性的情况下可以使用。 请勿让儿童玩耍操作。 →可能会导致触电或受伤。 -24-...
  • Page 26 -25-...
  • Page 27 请勿让儿童单独进行清洁或 保养。 →可能会导致触电或受伤。 -26-...
  • Page 28 移动产品时请务必拿住主体 下方 →否则可能造成产品掉落或 翻倒。 -27-...
  • Page 29 -28-...
  • Page 30 -29-...
  • Page 31 插头 -30-...
  • Page 32 -31-...
  • Page 33 ※产品附带专用插头。 -32-...
  • Page 34 4. 在电源适配器上安装插头的方法 ※插图与实际商品可能会有所不同。 ・将电源适配器插座上的 ・在拉拔提纽的状态下先 提纽按PUSH方向拉拔 将插头上部插入 ・在拉拔提纽的状态下再 ・发出“咔嚓”的扣合声 将插头下部插入 即安装完成。 -33-...
  • Page 35 -34-...
  • Page 36 -35-...
  • Page 37 11-1. -36-...
  • Page 38 11-2. -37-...
  • Page 39 -38-...
  • Page 40 -39-...
  • Page 41 -40-...
  • Page 42 -41-...
  • Page 43 -42-...
  • Page 44 -43-...
  • Page 45 -44-...
  • Page 46 AD-SD1-SG 本产品使用安全特殊低压电源，防触电保护等级为Ⅲ。 请务必使用附带的电源适配器[GPE125-240065-Z] -45-...
  • Page 47 MUJI (SINGAPORE) PTE. LTD. 60 Albert Street #15-03to06, OG Albert Complex, Singapore 189969 www.muji.com.sg Made in China...
