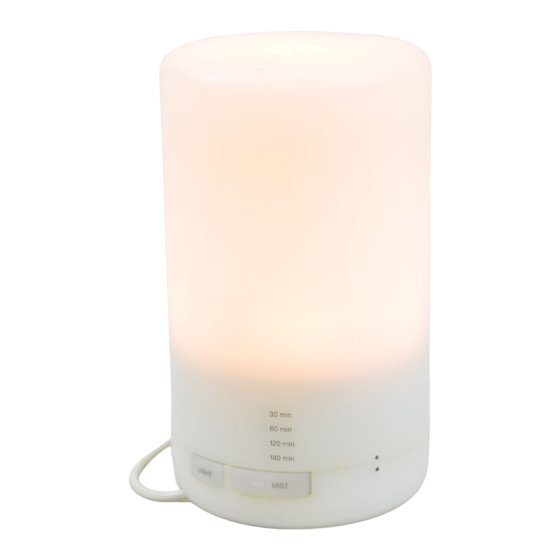

Muji AD-SD1-CE User Manual

Ultrasonic aroma diffuser

Hide thumbs

発注No.084-15A-001319-R03

資材_ラベル（糊なし） MR70

超音波アロマディフューザー

約直径80×高さ140mm

4548718920136

Ultrasonic

Aroma Diffuser AD-SD1-CE

User's Manual

For your safety and

enjoyment, please read and

understand this manual

before using your product.

After reading this manual,

store in a safe and handy

location for future reference

regarding any questions that

may arise.

2016.10

Version 1.0

page_1/24

pattern_デメ

• Introduction . . . . . . . . . . . . . . . . . . 1-5

• About Essential Oils. . . . . . . . . . . . . . 6

• Enjoying Your

Ultrasonic Aroma Diffuser. . . . . . . . . 6

• Components . . . . . . . . . . . . . . . . . . . . 7

• Part Names . . . . . . . . . . . . . . . . . . . . . 8

• Using Your Aroma Diffuser . . . . . 9-14

• Cleaning Up Spills . . . . . . . . . . . 15-16

• Care/Storage. . . . . . . . . . . . . . . . 17-19

• Disposal . . . . . . . . . . . . . . . . . . . . . . 20

• Troubleshooting . . . . . . . . . . . . . 20-21

• Specifications. . . . . . . . . . . . . . . . . . 22

作成日_2015-09-17

size_150x149mm

Table of Contents

Need help?

Do you have a question about the AD-SD1-CE and is the answer not in the manual?

Questions and answers

Summary of Contents for Muji AD-SD1-CE

Page 1: Table Of Contents
超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Ultrasonic Aroma Diffuser AD-SD1-CE User's Manual Table of Contents For your safety and • Introduction ....1-5 enjoyment, please read and •...
Page 2: Pattern_デメ
発注No.084-15A-001319-R03 page_2/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Introduction For your safety, please read and follow all instructions • This product is a household electrical appliance. • This product is not intended for use as interior room lighting. •...
Page 3 発注No.084-15A-001319-R03 page_3/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Do not use this product if the Do not damage the AC adapter power cord, bend the cord forcefully, pull, or AC adapter power cord or plug twist the cord. Do not allow the cord become damaged, or if the to come close to hot components, and plug does not sit ﬁrmly in the...
Page 4 発注No.084-15A-001319-R03 page_4/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Using This Product Immediately unplug the AC adapter This device is not a medical from the electrical outlet if you notice inhaler or vaporizer. an abnormal odour, abnormal sound, Do not intentionally inhale if the adapter or diffuser unit becomes mist emitted from the diffuser...
Page 5 発注No.084-15A-001319-R03 page_5/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 This symbol indicates a matter which may lead to user injury or Caution physical property damage. Before Using This Product Always use clean, Do not use this product in the following locations.
Page 6 発注No.084-15A-001319-R03 page_6/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Do not remove the outer cover Never turn this product on while the product is in operation. when the water tank is empty. →Water or essential oil may →Doing so may result in damage Prohibited spill, causing damage to the to the ultrasonic diaphragm,...
Page 7: About Essential Oils
発注No.084-15A-001319-R03 page_7/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 About Essential Oils ●Use two to three drops (0.1ml-0.2ml) of ●Always use essential oils from 100% essential oil per 100ml of water (full tank). natural plant extracts with this product. Adding essential oils to an empty (or low) Perfumes, aroma oils containing synthetic water tank may result in product...
Page 8: Components
発注No.084-15A-001319-R03 page_8/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Components ・ Water measuring cup (100ml) ・ Outer cover ・ AC adapter ・ Inner cover ・ Diffuser unit ・ User's Manual (this manual)
Page 9: Part Names
発注No.084-15A-001319-R03 page_9/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Part Names Diffuser outlet Inner cover Front Outer cover Air outlet Interior View Ultrasonic diaphragm *Located in the Water tank bottom centre of Water outlet the water tank Back Timer Diffuser unit Alignment...
Page 10: Using Your Aroma Diffuser
page_10/24 発注No.084-15A-001319-R03 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Using Your Aroma Diffuser 1. Using Your Aroma Diffuser 2. Remove the small box 3. From the small box, remove the AC Adapter and Water Measuring Cup * Dispose of this product and packaging materials in accordance with your local regulations.
Page 11 発注No.084-15A-001319-R03 page_11/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 4. Insert piug into AC adapter ・Push the tab in the centre ・Insert the top end of of the plug installation the plug while the tab area toward the direction is pushed to the side.
Page 12 発注No.084-15A-001319-R03 page_12/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 5. Remove the outer cover of 6. Turn the Diffuser Unit over the diffuser Cable guide DC jack ・Gently twist the cover anticlockwise (as seen from the top) to remove. *Never touch the ultrasonic diaphragm inside the water tank directly.
Page 13 発注No.084-15A-001319-R03 page_13/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 8. Fill with water and essential oil ・Be careful not to spill water while ﬁlling the water tank. ・Add a few drops of essential oil to the water in the water tank. * Always use the attached measuring cup (100ml) to ﬁll the water tank.
Page 14 発注No.084-15A-001319-R03 page_14/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 11-1. Using Aroma Mist switch ①Push the mist switch * The diffuser is off when ﬁrst plugged in. * Pushing the mist switch when the water tank is empty (or low) on the diffuser unit.
Page 15 発注No.084-15A-001319-R03 page_15/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 ③To stop the mist, either * Mist volume may increase during the summer or conditions with higher temperatures and humidity. In some push the mist switch circumstances, a water tank ﬁlled full (100ml) may empty until it cycles to the off prior to the completion of the 180-minute timer, shutting off setting or hold down...
Page 16: Cleaning Up Spills
発注No.084-15A-001319-R03 page_16/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Cleaning Up Spills If a spill happens due to tipping over or tilting the diffuser unit while there is water in the water tank, water may enter the internal components of the diffuser, resulting in a malfunction. If a spill happens, immediately perform the following procedures to drain the water inside.
Page 17 発注No.084-15A-001319-R03 page_17/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 4. Dispose of water in the water tank 5. Dry the diffuser Water outlet Water outlet ・ Always tilt the diffuser unit in the ・ Lightly shake the diffuser unit to allow direction of the water draining mark as water to pour out of the bottom water indicated to pour out water remaining in...
Page 18: Care/Storage
発注No.084-15A-001319-R03 page_18/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Care/Storage For your safety, regularly perform care and maintenance for your Aroma Diffuser. Perform the following procedures. Perform these procedures every ﬁve to six uses or every two to three days as a rule. 1.
Page 19 発注No.084-15A-001319-R03 page_19/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 4. Dispose of water in the water tank ・ Always tilt the diffuser unit in the direction of the water draining mark as indicated to pour out water remaining in the water tank. * Never tilt the diffuser toward the air outlet when pouring out water.
Page 20 発注No.084-15A-001319-R03 page_20/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 6. Clean the outer cover and inner cover ・ If essential oil comes into contact with the ・ To remove dirt near the diffuser outlet, outer cover or inner cover, or the covers remove the inner cover for cleaning.
Page 21: Disposal
発注No.084-15A-001319-R03 page_21/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Disposal ●Dispose of this product and packaging materials in accordance with your local regulations. Troubleshooting Check the following if the product appears to be broken or operating abnormally. ■Is there enough water in the water tank? No power.
Page 22 発注No.084-15A-001319-R03 page_22/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 ■Are there any bubbles accumulated on or around the ultrasonic diaphragm? →At low water temperatures, bubbles may accumulate on or around the ultrasonic diaphragm, preventing mist from emitting well. Turn the power off, and then use a cotton swab or similar to gently clean any bubbles adhering to the ultrasonic diaphragm.
Page 23: Specifications
資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Product Speciﬁcations [Product Name] Ultrasonic Aroma Diffuser AD-SD1-CE Approximately Φ80×140mm (height; not including protrusions) [External Dimensions] [Diffuser Unit Weight] Approximately 220g (not including AC adapter) [Power Source] Dedicated AC adapter included Power Supply: AC100-240V 50／60Hz...
Page 24 発注No.084-15A-001319-R03 page_24/24 作成日_2015-09-17 資材_ラベル（糊なし） MR70 pattern_デメ size_150x149mm 超音波アロマディフューザー約直径80×高さ140mm 4548718920136 Contact your retailer with any questions about this product. Made in China...
