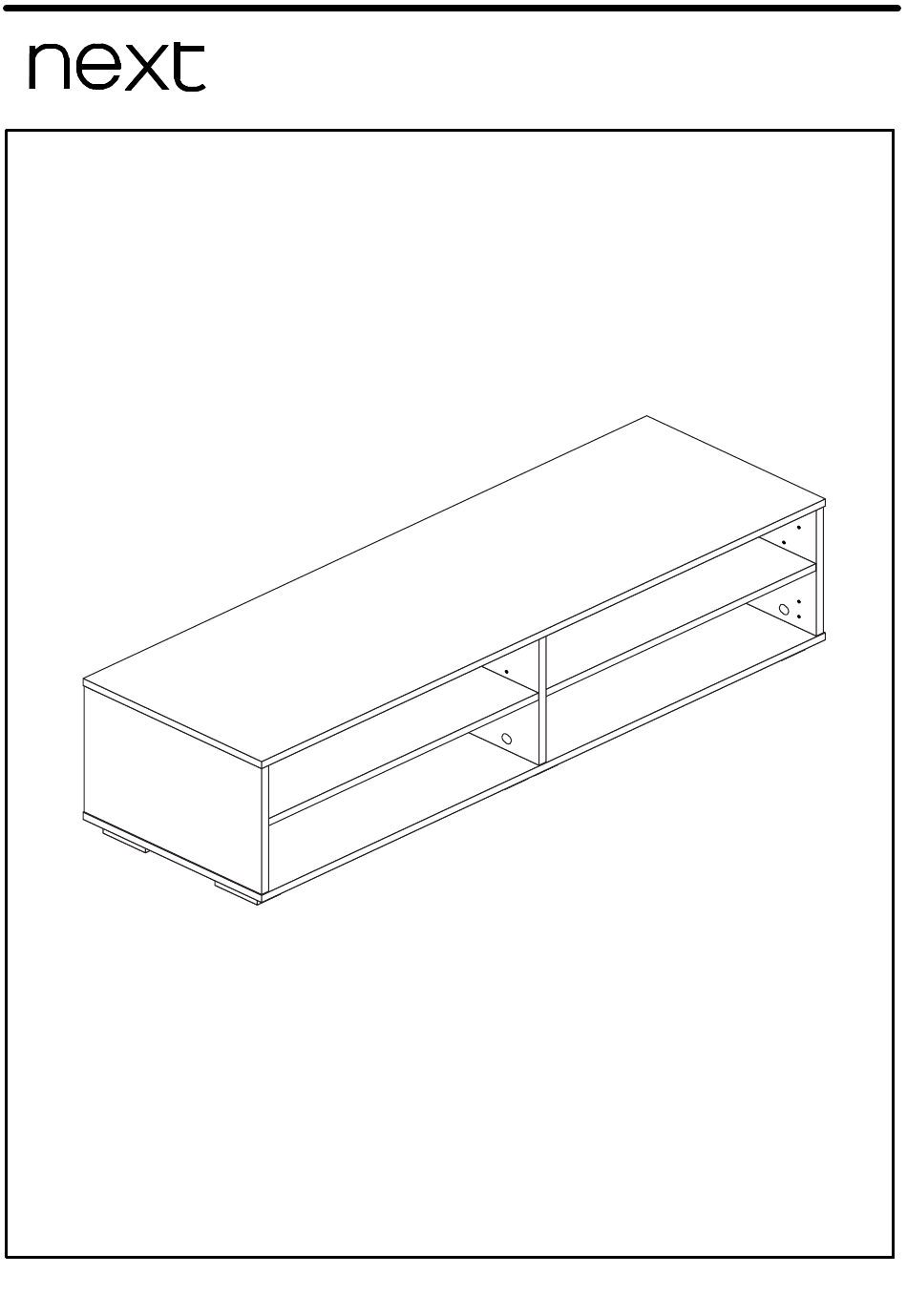

MODULAR TV UNIT
979185/900422/900787
Assembly instructions
Actual product size
H32.5 x W120 x D38cm
Need Help?
With
Assembly instructions
Missing or damaged parts
Call: 0333 777 8999
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in the UK for Next Retail Ltd.
ALR3212
979185/900422/900787-2015-V3

Advertisement

loading
Need help?

Need help?

Do you have a question about the 979185 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Next 979185

  • Page 1 979185/900422/900787 Assembly instructions Actual product size H32.5 x W120 x D38cm Need Help? With Assembly instructions Missing or damaged parts Call: 0333 777 8999 IMPORTANT - RETAIN FOR FUTURE REFERENCE Produced in the UK for Next Retail Ltd. ALR3212 979185/900422/900787-2015-V3...
  • Page 2: Before You Start

    Do not place hot items (e.g. hot drinks) directly on to the wood surface. Please make sure you use a placement or coaster To view our full furniture range please visit www.next.co.uk Produced in the UK for Next Retail Ltd.
  • Page 3: Getting To Know Your Product

    Components supplied. Please use this guide if you require replacement parts. Ref Dimensions Visual Qty Ctn Dimensions Visual Qty Ctn 1200 x 380mm 1200 x 380mm 270 x 378mm 575 x 356mm 270 x 378mm 1175 x 280mm 270 x 357mm Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 4 11 x 19mm 16 x 14mm Fixtures and fittings supplied (not to scale) Dimensions Visual Dimensions Visual 90 x 50mm Dimensions Visual Produced in the UK for Next Retail Ltd. *Extra Fittings included 979185/900422/900787-2015-V3 in case of loss or damage...
  • Page 5 ON TOP OF ANOTHER MODULAR UNIT? IF YOU ARE GOING TO PUT THIS UNIT ONTO ANOTHER MODULAR UNIT YOU WILL NEED TO DRILL THROUGH THESE 4 HOLES IN THE BASE PANEL USING A 5mm DRILL BIT Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 6 No gap A x 6 CAMS The arrow must point towards the hole in the edge of the panel. 10mm A x 4 B x 4 C x 4 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 7 MODULAR TV UNIT 979185/900422/900787 Assembly instructions CAMS Push the 2 panels together and turn the Cams until secure. B x 2 B x 8 C x 8 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 8 MODULAR TV UNIT 979185/900422/900787 Assembly instructions B x 4 SLIDE THE BACK PANEL DOWN INTO THE GROOVES. A x 6 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 9 ARE YOU GOING TO PLACE A NARROW MODULAR UNIT ONTO THE RIGHT SIDE OF THIS UNIT? YOU WILL NEED TO DRILL THROUGH THESE 2 HOLES IN THE TOP PANEL USING A 5mm DRILL BIT Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 10 ARE YOU GOING TO PLACE A WIDE MODULAR UNIT ONTO THIS UNIT? YOU WILL NEED TO DRILL THROUGH THESE 4 HOLES IN THE TOP PANEL USING A 5mm DRILL BIT A x 6 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 11 MODULAR TV UNIT 979185/900422/900787 Assembly instructions BACK HOLDERS Slide the 8 Back Holders into the grooves and tighten up their screws K x 8 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 12 There are 3 height positions to choose from. Push 4 Shelf Studs for each shelf into the sides at the required height. Lower the shelves onto the shelf studs and tighten the screws J x 8 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 13 ARE YOU JOINING UNITS TOGETHER? Push the connecting sleeves into the holes that you drilled earlier and then screw the connecting bolts in from the other side. E x 2 F x 2 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 14 For certain wall types, a special wall plug may be necessary! SCREW THE WALL FASTENING TO THE UNIT USING THE SMALL HOLE IN THE TOP PANEL BEHIND THE BACK PANEL SUITABLE WALL PLUG SUITABLE SCREW L x 1 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 15 Fit the fixing screws through the hole in the side of the Brackets and into the side panel Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 16: Wall Brackets

    Wall Brackets carry out any 1160mm fine adjustments Turn the top screw clockwise to pull the unit against the wall. Turn the bottom screw clockwise to raise the unit and anti-clockwise to lower it. Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
  • Page 17 MODULAR TV UNIT 979185/900422/900787 Actual product size H32.5 x W120 x D38cm 5 . 5 Produced in the UK for Next Retail Ltd. 979185/900422/900787-2015-V3...
