SPOS G86-63410

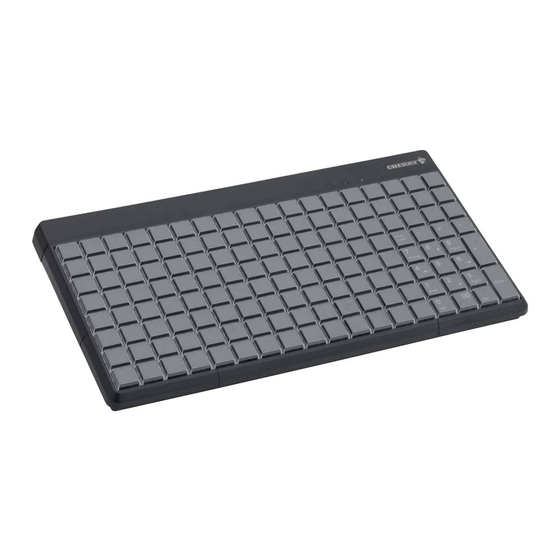

Models may vary from the image shown
3-track magnetic card reader and freely configurable key
layout
Multifunctional, fully programmable USB keyboards with 18x8
Matrix Key Layout. For professional commercial use, e.g. in
Point-of-Service (POS), and for all other applications
requiring maximal space efficiency with uncompromised data
entry.

Key Benefits

• 142 key Matrix Layout incl. Numeric Keypad
• Compact - only 360 mm width
• User-friendly unstinted standard 19 mm key spacing
• IP54 rated spill and dust resistant key section
• Flexible layout customization with relegendable keys
• Fully programmable USB 2.0 keyboard
• 3-Track Magnetic Stripe Reader
• Comprehensive UPOS support
• Integrated memory
• Cut-out mounting capabilities (circumferential rim)
• Pluggable feet

Magnetic Stripe Reader

• Freely-programmable header and terminator per magnetic
card track
• Adjustable transmission of the start and end characters
(sentinels)
• Filtering and replacement of card data
• Increased security during card processing due to the
programming of extended hex codes
• Dual insertion and bidirectional swipe of Magnetic Stripe
Card
• Audible and visual indication after correct reading of the
magnetic card
• Freely-selectable output sequence of the tracks
© Cherry Americas • 5732 95th Avenue, Suite 850 • Kenosha, WI 53144 • USA
Phone: 262.942.6508 • keyboardsupport@cherryamericas.com • cherryamericas.com • 2020-05-15
1/3

Technical Data:

Layout (country or language):
(possible country/layout versions, others available on request)
US English with EURO symbol
Housing Color:
black
Weight (product):
approx. 1400 g / 3.09 lb
Total Weight (with packaging):
approx. 1600 g / approx. 3.53 lb
Cable Length:
approx. 1.85 m / approx. 6.07 ft
Storage Temperature:
-20°C to 60°C / -4° F to 140° F
Operating Temperature:
0°C to 50°C / 32° F to 122° F
Current Consumption:
max. 100 mA
Interface:
• USB

Product Approvals:

• cURus
• CE
• FCC
• RCM

System Requirements:

• USB plug and USB supporting operating system

Box Contents:

• SPOS G86-63410
• Printed instructions
• CD-ROM with up-to-date software
• Keycap puller
• 6 sheets paper inserts (light grey, red, blue, green, yellow,
white)
• 2 Plug-in feet
• 1 Bag Key lenses (140 pcs 1x1, 2 pcs 1x2)

Dimensions (product):

approx. 360 x 198 x 38 mm / approx. 14.17 x 7.80 x 1.50 in

Packaging Dimensions:

approx. 415 x 260 x 50 mm / approx. 16.33 x 10.24 x 1.97 in

Reliability:

• Standard keys (1x1): >25 mill. operations
• Multiple keys (1x2, 2x1, 2x2): >20 mill. operations

Keyboard:

• Protection Class: IP54
• Service life, standard key: > 25 million key operations
• Number of Keys: 142
• Number of Programmable Keys: 142
• Number of Relegendable Keys: 142
