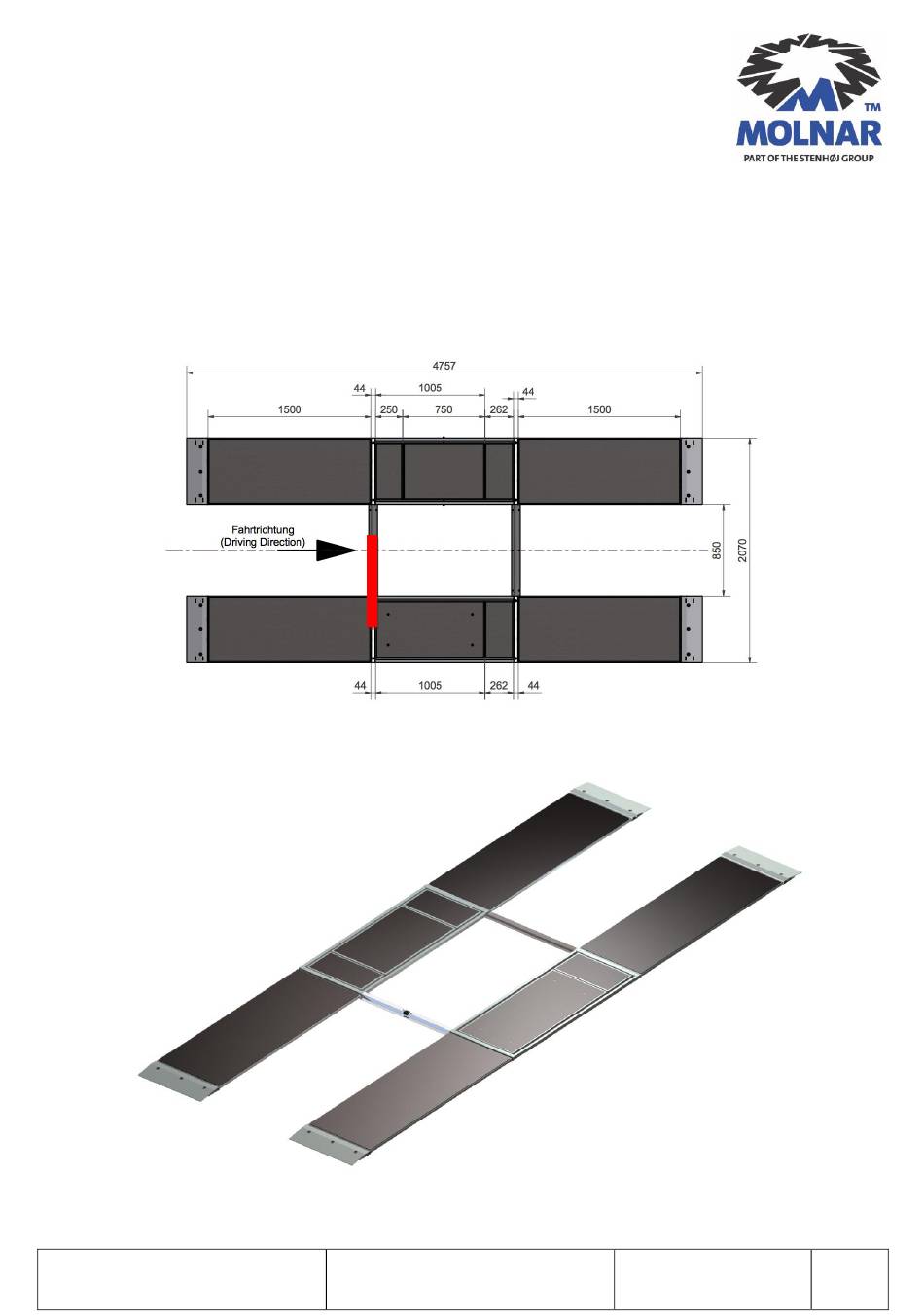

- Page 1 RADAR ASSEMBLY INSTRUCTION PBT - 24 - 4757 Radar Radar Assembly Instruction PBT-24-4757- MOLNAR - 1 - V1.1 19.09.2017-DG EN_MOLNAR...
- Page 2 Despite careful checking, errors in this publication cannot be completely excluded. This manual was written for users with technical knowledge in vehicle testing. Radar Assembly Instruction: PBT-24-4757 19. September 2017 English Address: STENHOJ Pty Ltd 95 Darley Street Mona Vale, 2103 NSW...
- Page 3 Table of Contents 1. SETUP PREPERATION 2. INSTALLATION Radar Radar Assembly Instruction PBT-24-4757- MOLNAR - 3 - V1.1 19.09.2017-DG EN_MOLNAR...
- Page 4 Tools: • Hammer drill and drill bits • Ratchet with nuts • Cable ties • Bits/Screwdriver Radar Radar Assembly Instruction PBT-24-4757- MOLNAR - 4 - V1.1 19.09.2017-DG EN_MOLNAR...
- Page 5 6. Connect the cable to the radar assembly and put it back on the ground 7. Hide the surplus cable under the radar cover 8. Tighten the radar assembly tightly to the ground with the 8 provided screws Radar Radar Assembly Instruction PBT-24-4757- MOLNAR - 5 - V1.1 19.09.2017-DG...
- Page 6 Connect the dongle to the USB port of your PC. Please start the PBT Software. • Go to Settings – Service – Hardware Installation • Check mark the Speed sensor and press save Radar Radar Assembly Instruction PBT-24-4757- MOLNAR - 6 - V1.1 19.09.2017-DG...
